How to Fix Furnace Code 31 & System Shutdowns: The Ultimate Guide to Outdoor HVAC Vent Protection
It is the middle of a freezing winter night. You wake up shivering, only to find your house feels like an icebox. You rush down to the basement, check your high-efficiency furnace, and notice a red diagnostic light flashing frantically on the control board.

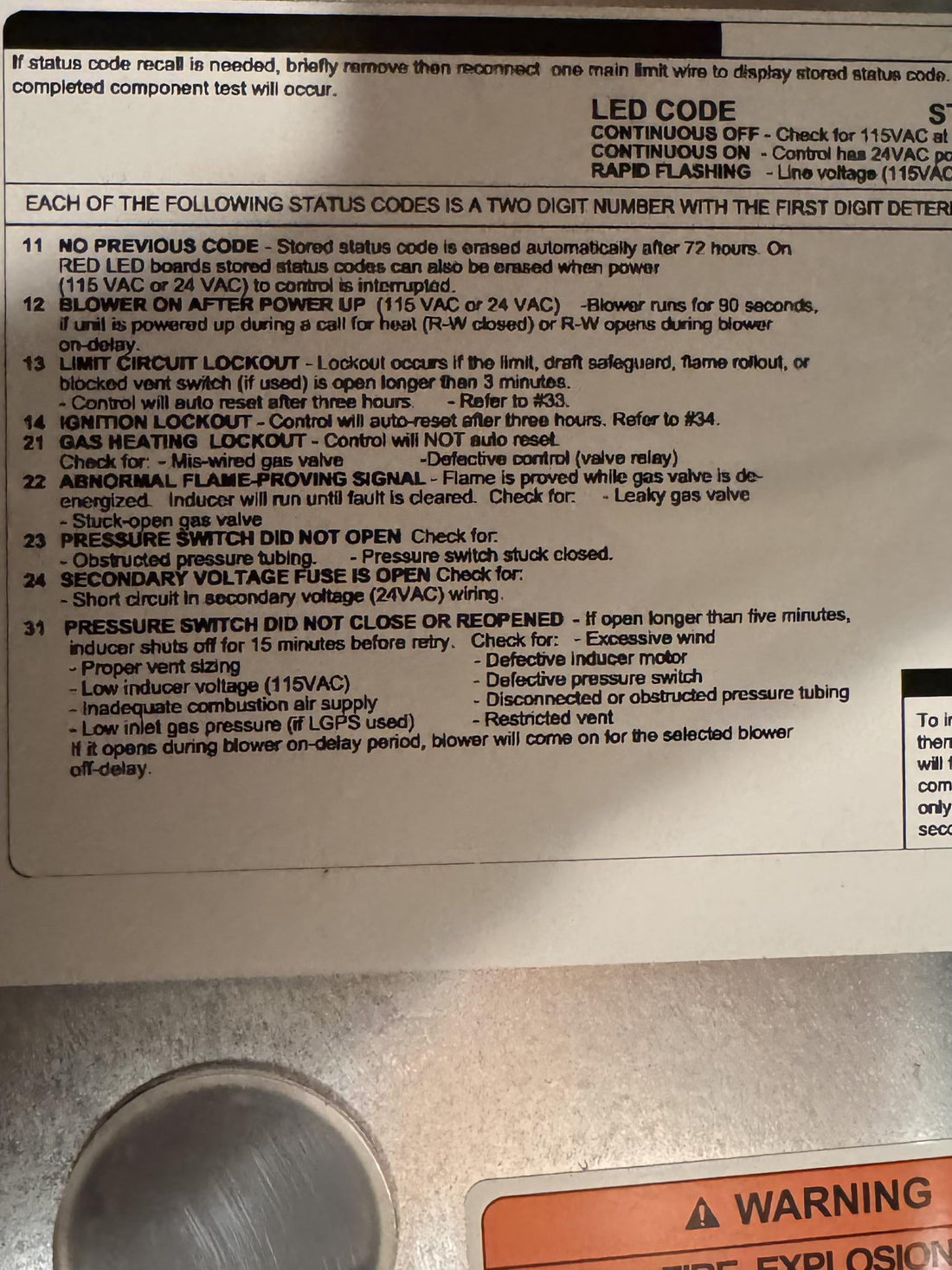

If you own a Carrier or Bryant furnace, it is likely flashing Code 31 (3 long flashes, 1 short flash). If you own a Goodman or Amana, you are probably seeing Code 3 or a continuous 3-blink error.
Before you panic and spend $150 to $300 on an emergency HVAC technician's service call, look outside. In some cases, the root cause of a heating failure may not be the furnace itself, but a restricted intake or exhaust vent system, frosted, or obstructed outdoor PVC exhaust pipe.
Understanding the Cause: Why High-Efficiency Furnaces Shut Down
Modern high-efficiency condensing furnaces (90% AFUE and above) utilize outdoor PVC pipes to pull fresh air in (intake) and vent toxic combustion gases out (exhaust).
These systems are equipped with internal safety devices called inducer pressure switches.
For a complete overview of how high-efficiency furnace intake and exhaust systems work, see our High-Efficiency Furnace Exhaust Vent Protection Guide.
The pressure switch monitors the airflow through your venting system. If the air cannot move freely, the switch trips as a safety precaution and completely shuts down the heating cycle to prevent lethal carbon monoxide from backing up into your living spaces.
The Two Silent Killers of Outdoor Vents:
-
Ice Blockage & Frosting: As warm, moisture-rich exhaust gas hits the freezing sub-zero outdoor air, moisture instantly condenses and freezes around the rim of bare PVC pipes.
-
Cold-weather vent problems can also lead to moisture-related issues. Learn more in our guide: Furnace Intake Pipe Leaking Water? Causes and Solutions.
-
Over several hours, this ice builds inward, choking the pipe diameter until the pressure switch trips.
-
Pest Infiltration: During late fall and winter, small birds, squirrels, chipmunks, and mice seek out these exhaust vents because they radiate life-saving heat. Pests crawl inside, build nests, or get trapped. This severely restricts airflow or may damage furnace components or prevent proper operation.
The Solution: High-Efficiency Furnace Termination Error Codes
Different furnace manufacturers use distinct blinking codes to warn you about an exhaust or intake restriction. Match your system's blinking pattern below to diagnose the problem instantly:
|
Furnace Brand |
Error Code / Light Pattern |
Official System Definition
|
|---|---|---|
|
Carrier / Bryant |
Code 31 / 3-1 Blink |
Pressure switch did not close or reopened during demand. Check vents for restrictions. |
|
Goodman / Amana |
3 Flashes |
Inducer pressure switch stuck open. Implies blocked vent, restricted combustion air, or ice buildup. |
|
Lennox |
Watchguard Code 223 / 3 Blinks |
Pressure switch failed to close, or low pressure switch open. Blocked drain or exhaust pipe. |
|
Rheem / Ruud |
Code 31 or 33 |
Pressure switch open fault. Main limit switch open or venting restriction detected. |
Note: If you clear the external outdoor obstruction, power down your furnace completely via the main switch or breaker, wait 30 seconds, and turn it back on. This resets the control board and initiates a fresh heating sequence.
Why Cheap Plastic & Wire Mesh Screens Fail the Winter Test
Many homeowners try a quick DIY fix by wrapping chicken wire, screen doors, or snapping cheap ABS plastic mesh caps onto their PVC pipes. Unfortunately, these temporary methods often create more dangerous problems:
-
Plastic Embrittlement: Standard ABS or thin plastic screens degrade rapidly under extreme UV exposure and toxic flue gases. Within 1–2 seasons, they crack, fall off, and leave the pipe fully exposed again.
-
The Ice-Mesh Trap: Ordinary iron or galvanized steel mesh screens absorb frost rapidly. Because they lack thermal optimization, moisture bridges across the thin wire spaces instantly, completely sealing the vent in solid ice and triggering an automatic shutdown.
The Long-Term Solution: LGQF-LL Heavy-Duty 304 Stainless Steel Vent Caps
To completely safeguard your home's heating infrastructure against winter ice-blocking, bird nests, and debris, you need an engineered, permanent solution.
The LGQF-LL Heavy-Duty Vent Protection System is purpose-built out of 100% premium 304 marine-grade stainless steel. It outlasts cheaper plastic alternatives by decades and offers superior, unrestricted airflow dynamics.
Upgrade to LGQF-LL® 304 Stainless Steel Vent Protection Today
Key Performance Advantages of LGQF-LL®:
-
Marine-Grade Rust & Flue Gas Resistance: Furnace exhaust gases contain highly corrosive chemical byproducts. Our 304 stainless steel construction resists acid and heavy moisture, completely preventing structural corrosion and rust stains on your home's siding.
-
Aerodynamic Anti-Ice Grid Design: The precision-engineered mesh density maximizes air exhaust velocity, keeping water droplets moving out of the cap before they can freeze over the mesh surface.
-
Integrated Gravity Backdraft Damper: Selected models feature automated precision-weighted flappers. They open flawlessly under active exhaust pressure and snap tightly shut when the furnace goes idle, keeping frigid winds, insects, and rodents out of your home.
- Before selecting a vent protection product, always confirm pipe diameter, vent configuration, and furnace manufacturer requirements.
Sizing & Compatibility Guide: Find the Perfect Fit for Your Vent Pipe
HVAC PVC pipes must be matched perfectly to avoid introducing heavy backpressure into the combustion system. LGQF-LL manufactures a broad spectrum of commercial-grade models and sizes to directly accommodate standard residential Schedule 40 PVC hubs.
|
Your Pipe Dimension |
Standard Pipe Specification |
Recommended LGQF-LL Cap Model
|
|---|---|---|
|
2-Inch PVC Pipe |
Schedule 40 PVC (Actual Outer OD ~2.375") |
LGQF-LL 2" Stainless Steel Intake/Exhaust Cap |
|
3.95-Inch / 101mm Pipe |
Thin-wall ducting or specialized termination ports |
LGQF-LL 101mm Mushroom Vent Cap System |
|
4-Inch PVC Pipe |
Schedule 40 PVC (Actual Outer OD ~4.500") |
LGQF-LL 4" Precision Mesh Protection Screen |
Not sure what size your pipes are? Simply measure the outer diameter (OD) of your clean outdoor termination pipe with a tape measure, or check our extensive online sizing catalog at LGQF-LL Collections for multiple industrial styles and dimension fits.
Browse All LGQF-LL® Models & Sizes on Our Official Store
FQA
Can a blocked furnace vent cause Code 31?
Yes. A blocked intake or exhaust termination can restrict airflow and prevent the pressure switch from confirming proper furnace operation.
Should I remove my furnace intake pipe if it freezes?
Removing the intake pipe is not usually the first solution. The vent system should be inspected to identify the cause of blockage and ensure it follows manufacturer requirements.
How can I prevent furnace vent blockage in winter?
Regular inspection, proper vent termination, and protection against debris and pests can help reduce the risk of outdoor vent restrictions.
What Homeowners Should Remember
Most furnace shutdown problems do not begin inside the furnace cabinet. Outdoor vent openings are exposed to weather, debris, and wildlife throughout the year.
A simple inspection of the intake and exhaust terminations can often help identify problems before unnecessary component replacement or emergency service calls.
Final Verdict: Don't Wait For The Next Blizzard To Strike
An unprotected HVAC vent is a ticking clock. A sudden blockage doesn't just cause a cold house—it can cause pipes to crack due to extreme temperature shifts or leave your family vulnerable to indoor combustion backdrafts.
Investing in an LGQF-LL Marine-Grade 304 Stainless Steel Vent Cap means investing in continuous, unbreakable peace of mind. It keeps the pests out, prevents ice consolidation, terminates code 31 faults before they happen, and helps protect high-efficiency furnace vent openings from common winter blockage problems.
