Furnace Intake Pipe Leaking Water? It’s NOT Condensation (Real Case Analysis)
If your high-efficiency furnace is leaking water from the intake pipe, most HVAC companies will tell you:
“That’s just condensation.”
But in many cases — **that’s completely wrong.**

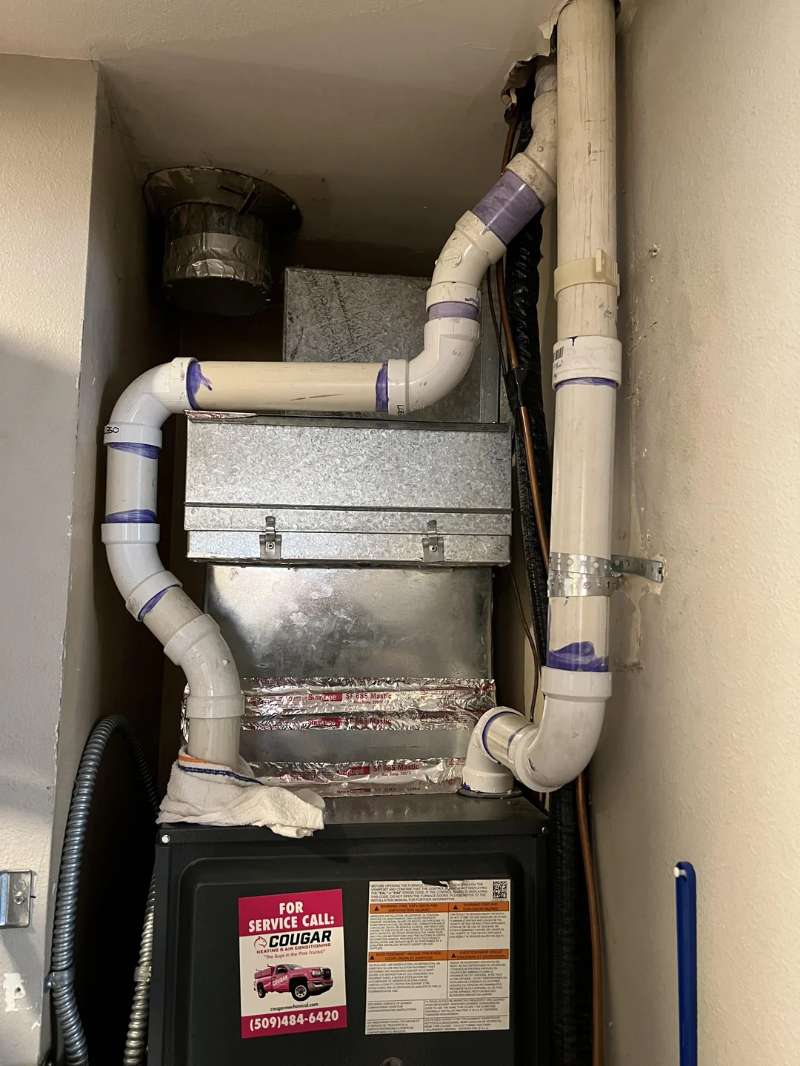

In this real-world case from customer, a homeowner discovered water inside a newly installed high-efficiency furnace. The installer claimed it was caused by condensation from the intake pipe and proposed removing the outdoor intake entirely.
That’s not just incorrect — it’s bad HVAC practice.
Let’s break down what’s actually happening.
---
🔍 What’s Really Causing the Water Leak?
In a properly installed system, the intake pipe should NOT introduce water into the furnace.
Here are the real causes:
1. Rainwater Entering the Intake Pipe
The intake pipe was installed as an open PVC pipe with no proper termination.
That means:
* Rainwater can flow directly into the pipe
* Wind can push water deep into the system
* Water travels back into the furnace cabinet
👉 This is NOT condensation. It’s **water intrusion due to poor design**.
---
2. No Vent Cap or Protective Termination
A proper HVAC intake system should always include:
* A vent cap or hood
* A downward-facing elbow or protected opening
* A screened or shielded termination
Without these, your system is exposed to:
* Rain
* Snow
* Debris
* Rodents and insects
---
3. Incorrect Pipe Slope
High-efficiency furnace piping must be installed with a consistent slope.
If not:
* Water collects in low points
* Pipes become water traps
* Water flows backward into the furnace
Industry best practice:
> Minimum slope: 1/4 inch per foot
---
4. Too Many Bends in the Pipe
Every elbow in the system:
* Slows airflow
* Creates a condensation point
* Increases water retention
A clean HVAC install should always follow:
> “The straighter, the better.”
---
5. No Drainage Strategy (Critical Design Failure)
The system shown had:
* No drain path
* No trap
* No way to redirect water
So where does the water go?
👉 Straight into your furnace.
---
❌ Why the HVAC Company’s “Solution” Is Wrong
The installer suggested:
> Removing the outdoor intake and pulling air from inside the house.
This is a shortcut — not a fix.
Problems with this approach:
* Reduces system efficiency
* Creates negative pressure inside the home
* Pulls in unconditioned air from gaps and leaks
* Violates best practices for high-efficiency furnaces
---
✅ The Correct Way to Fix This
A proper fix should include:
✔ Rebuilding the Intake Pipe System
* Ensure proper slope
* Minimize unnecessary bends
* Secure the pipe with proper supports
---
✔ Installing a Proper Vent Termination
This is the most overlooked step.
A correct intake termination should:
* Block rainwater entry
* Maintain airflow
* Prevent debris and pests
---
✔ Adding Drain Consideration (if needed)
* Install a trap if condensation is unavoidable
* Ensure water has a controlled exit path
---
⚠️ Key Takeaway
If water is entering your furnace through the intake pipe:
> It is NOT a normal condition.
> It is NOT something to ignore.
> And it is definitely NOT something to “work around.”
It’s a design and installation failure.
---
💡 Pro Tip (From an HVAC Perspective)
Most homeowners don’t realize this:
> The intake pipe is not just an air pipe —
> it’s part of a moisture-sensitive system.
If it’s not properly terminated and protected,
your furnace becomes vulnerable to water damage.
---
🔧 Simple Upgrade That Prevents This Problem
One of the easiest ways to prevent this issue is to install a properly designed PVC vent cap with:
* Weather protection
* Optimized airflow
* Built-in screening
This small upgrade can:
- Stop water intrusion
* Extend furnace life
* Prevent costly service calls
Frequently Asked Questions
Q: Why is condensation normal in exhaust pipes but dangerous in intake pipes? A: High-efficiency furnaces (90%+ AFUE) produce warm, moist byproduct gases that naturally condense in the exhaust line—this is expected. However, the intake pipe is designed to draw in dry, outdoor air for combustion. If you see water leaking from the intake, it usually indicates environmental infiltration (rain or snow). This water flows directly into the inducer motor, leading to electrical shorts or mechanical seizing.
Q: My intake pipe is pointed downward. Can rain still get inside? A: Absolutely. During wind-driven rainstorms or blizzards, "lateral wind" pushes moisture into the pipe opening. Furthermore, the high-velocity suction of the furnace creates a vacuum effect that pulls in nearby mist and water droplets, even if the pipe is angled down.
Q: Will the LGQF-LL 0-Degree Vent Screen restrict my furnace’s airflow? A: No. Our screens are engineered with a 102-hole hexagonal mesh that maximizes open area. This precision-engineered design provides a robust barrier against pests and debris while maintaining near-100% airflow efficiency. It is specifically designed to prevent the "Pressure Switch" errors common with restrictive, DIY mesh solutions.
