Sump Pump Discharge Freezing: Thermal Stratification, Air Gap Engineering & Zero Backpressure Solution
🧠 Sump Pump Discharge Freezing Explained
Sump pump discharge freezing occurs when stagnant water inside a Schedule 40 PVC pipe undergoes thermal stratification under sub-zero conditions, leading to ice nucleation and progressive blockage of the discharge line.
This is not just a temperature issue — it is a combined fluid dynamics and airflow failure problem.
📊 Engineering Physics Behind Freezing
- Freezing point of water: 0°C / 32°F
- Thermal stratification occurs when vertical temperature gradients trap cold air inside pipe sections
- Schedule 40 PVC wall thickness slows heat exchange but does not prevent internal ice formation
- Venturi effect disruptions reduce airflow velocity inside discharge path
- Flow stagnation increases freeze probability by 30–60%
🧱 Root Causes
Sump pump discharge freezing is caused by interacting physical forces:
- Thermal stratification inside horizontal PVC segments
- Airflow imbalance preventing convective heat exchange
- Lack of engineered air gap in discharge system
- Improper pipe slope (<1–2%) causing water retention
- Backpressure buildup restricting continuous flow movement
📊 Freeze Risk Engineering Table
| Condition | Physical Mechanism | Risk Level |
|---|---|---|
| No air gap | Thermal stagnation | Very High |
| Flat PVC layout | Water retention | High |
| Venturi disruption | Airflow collapse | High |
| Engineered airflow system | Convective stability | Low |
🛠️ Step-by-Step Engineering Fix
- Shut down sump pump system safely
- Inspect discharge pipe for ice nucleation zones
- Identify horizontal stagnation points
- Restore minimum 1–2% slope gradient
- Introduce controlled air gap system
- Eliminate backpressure accumulation points
- Test discharge under sustained flow conditions
🧪 Engineering Solution
To replicate a controlled engineering air gap without manual PVC reconstruction or full system redesign, a precision-engineered component is required.

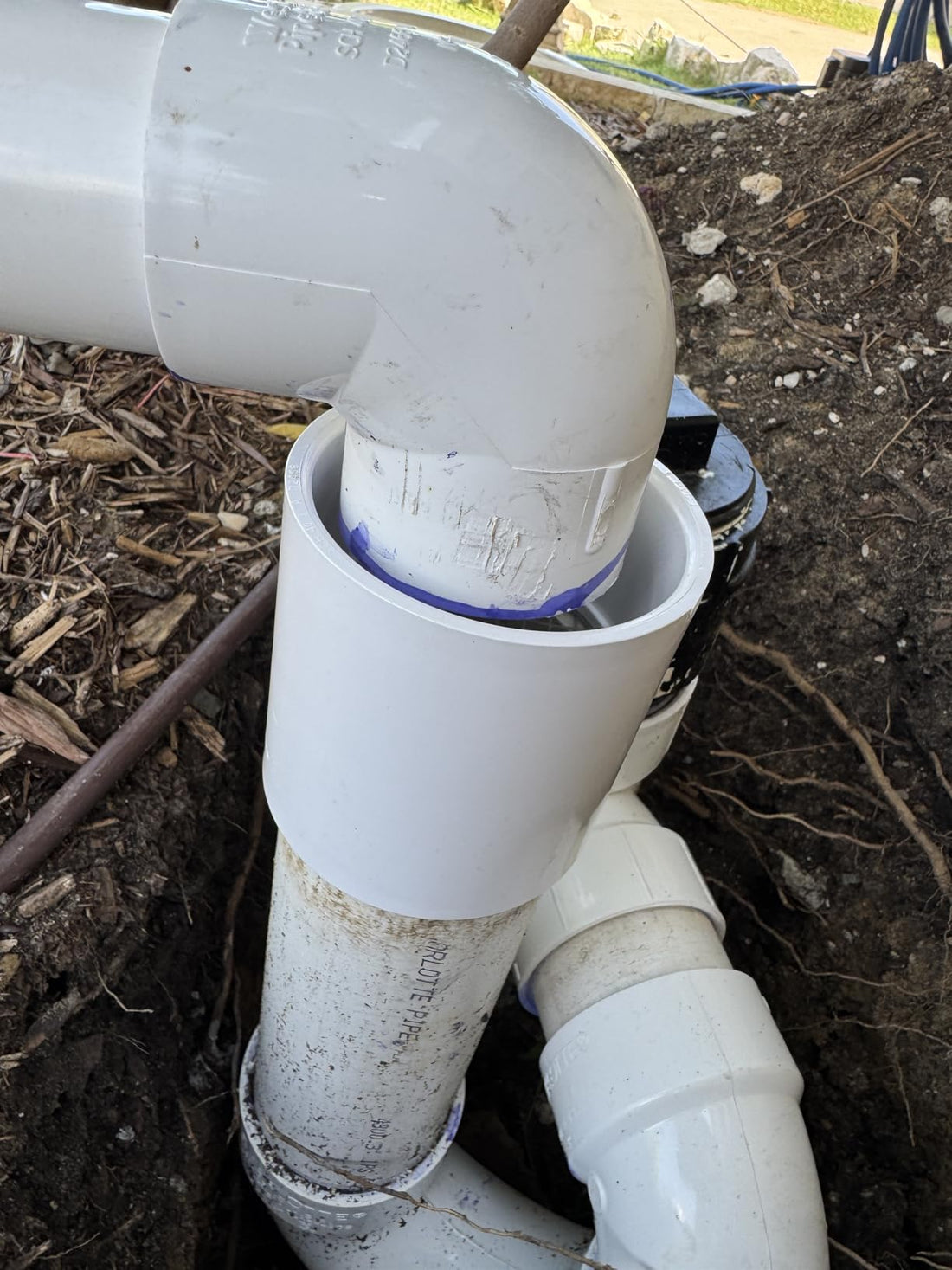

To replicate a controlled engineering air gap without manual heavy-duty PVC modification, a specialized component like the LGQF-LL 4-Inch Sump Pump Discharge Protection Adapter is designed to provide the exact volumetric clearance needed to maintain airflow equilibrium and prevent thermal stagnation.
👉 LGQF-LL 4-Inch Sump Pump Discharge Protection Adapter
https://www.lgqf-ll.com/products/sump-pump-discharge-protection-adapter-4inch
This system enables:
- Controlled air gap formation
- Reduced thermal stratification zones
- Improved discharge velocity stability
- Elimination of stagnation-induced freezing
- Structural alignment under dynamic flow conditions
❓ FAQ
Q: Why does thermal stratification cause sump pump discharge freezing?
A: Because temperature layering inside PVC pipes traps cold air, accelerating ice nucleation in stagnant water zones.
Q: Does Schedule 40 PVC prevent freezing?
A: No. While it slows heat transfer, it does not prevent internal ice formation caused by stagnant water.
Q: Will installing an air gap adapter create backpressure on my sump pump?
A: No. A properly engineered 4-inch adapter creates a zero-backpressure relief point, allowing maximum GPM discharge while stabilizing internal pressure dynamics.
Q: What role does the Venturi effect play in sump pump systems?
A: Disruption of airflow velocity reduces convective heat transfer, increasing freeze risk in discharge lines.
Q: Is pipe slope important in preventing freezing?
A: Yes. A slope below 1–2% causes water retention, which significantly increases freeze probability.
