Why Does My Furnace Intake Pipe Freeze? Intake and Exhaust Vent Problems Explained

Written by LGQF-LL HVAC Vent Protection Team
Our research focuses on common residential HVAC vent issues:
- freezing
- water intrusion
- pest blockage
- airflow restriction

Reviewed for:
Residential high-efficiency furnace applications

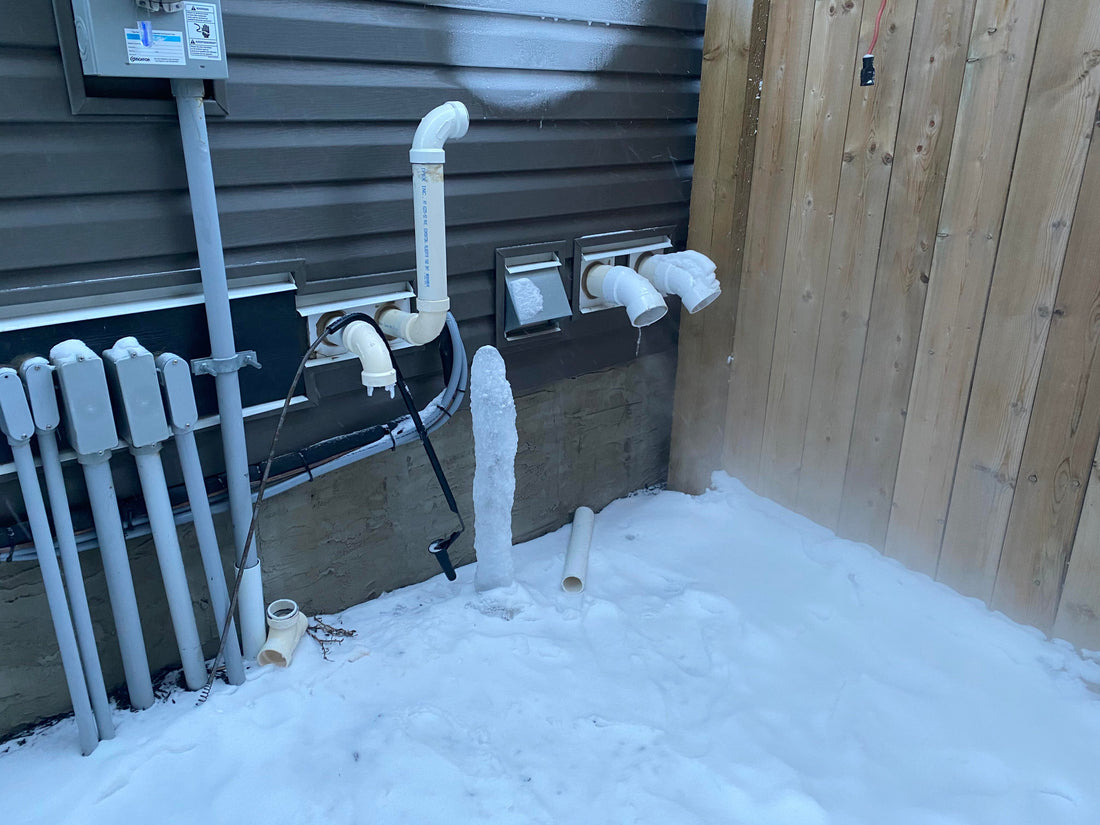

During winter, many homeowners experience a frustrating problem: their high-efficiency gas furnace stops working, and the outdoor PVC intake pipe is covered with frost or ice.

Many homeowners assume the problem is simply caused by extremely cold weather. However, one common cause is related to the installation relationship between the furnace intake pipe and exhaust pipe.

When the intake and exhaust terminations are installed too close together or at the same height, moisture from the exhaust may return toward the intake pipe. This can create condensation and frost buildup during freezing temperatures.

Why Does a Furnace Intake Pipe Freeze?

A high-efficiency gas furnace uses a sealed combustion system. Unlike older furnaces that use indoor air, modern condensing furnaces bring combustion air from outside through a PVC intake pipe.

The system normally includes two PVC pipes:

• Intake Pipe: Brings fresh outdoor air into the furnace.
• Exhaust Pipe: Removes combustion gases and moisture from the furnace.

Because exhaust gases contain water vapor, correct vent termination placement is important. If moisture from the exhaust reaches the intake opening, it can freeze during cold weather.

The U.S. Department of Energy explains that high-efficiency natural gas furnaces rely on proper combustion air supply and venting systems.

Read High-Efficiency Gas Furnace Guide

Why Do Intake and Exhaust Pipes Cause Frost Problems?

The exhaust pipe releases warm combustion gases containing moisture. Under normal conditions, this moisture quickly disperses outside the home.

However, problems can occur when:

• The intake and exhaust pipes are too close together
• The two pipe openings are installed at the same height
• Wind pushes exhaust gases back toward the intake opening

The process can happen like this:

Exhaust moisture → enters intake area → condensation forms → freezes into frost

As frost builds up, the intake opening can become restricted. This may cause:

• Pressure switch errors
• Furnace shutdowns
• Repeated startup attempts
• Heating interruptions during cold weather

Why Does Same-Level Vent Installation Increase Freezing Risk?

When the intake and exhaust pipes are installed next to each other at the same elevation, exhaust moisture may remain near the intake opening.

During freezing temperatures, this moisture can turn into ice around the PVC intake termination.

A proper vent arrangement usually considers:

• Horizontal spacing between intake and exhaust pipes
• Vertical height differences
• Wind direction and outdoor conditions
• Manufacturer installation requirements

Vent termination requirements vary by furnace brand and model. Always follow the installation instructions provided by the furnace manufacturer before making any changes.

Signs of a Frozen Furnace Intake Pipe

A frozen intake pipe can create symptoms that look like a major furnace failure. Common signs include:

• Furnace starts but shuts down: The furnace may ignite briefly and then stop.
• Pressure switch errors: Restricted airflow can prevent normal furnace operation.
• Problems only during extreme cold: The furnace works normally until temperatures drop significantly.
• Visible frost around PVC pipe: Ice buildup may appear around the outdoor intake opening.

How to Check Your Furnace Intake and Exhaust Pipes

If your furnace intake pipe keeps freezing, inspect the outdoor PVC vent termination area. Look for possible causes before assuming the furnace itself has failed.

• Are the intake and exhaust pipes installed very close together?
• Are both pipe openings located at the same height?
• Is frost forming around the intake pipe opening?
• Is snow, ice, or debris blocking the vent termination?

If the problem happens repeatedly, review your furnace installation manual or contact a qualified HVAC professional. Vent termination requirements can vary depending on the furnace manufacturer and model.

How to Fix a Frozen Furnace Intake Pipe

Step 1: Remove Frost and Ice Carefully

If frost has blocked the intake opening, carefully remove the ice buildup and clear snow or debris around the pipe.

Do not:

• Completely cover the intake opening
• Seal the pipe with plastic or tape
• Use an open flame to melt ice

The furnace still needs a continuous supply of combustion air to operate safely.

Step 2: Check Intake and Exhaust Vent Placement

If freezing happens repeatedly, the issue may be related to vent termination placement.

Do not randomly move PVC pipes. High-efficiency gas furnace manufacturers have specific requirements for:

• Intake and exhaust spacing
• Pipe height
• Vent location
• Maximum vent length

Always follow the furnace installation manual before making any changes.

Step 3: Reduce Other Causes of PVC Vent Blockage

Besides frost buildup, outdoor PVC furnace vents can also be affected by:

• Bird nests
• Insects
• Leaves
• Outdoor debris

Can a PVC Vent Screen Help Protect Furnace Intake Pipes?

A PVC vent screen cannot correct incorrect intake and exhaust pipe installation. However, it can help reduce common outdoor blockage problems caused by animals and debris.

LGQF-LL PVC Vent Screen Caps are designed to help protect outdoor PVC vent terminations while maintaining airflow. The stainless steel mesh helps reduce the risk of:

• Bird intrusion
• Insect nesting
• Leaf buildup
• Large debris entering the pipe

LGQF-LL 2 Inch PVC Vent Screen Cap

🛒 Buy LGQF-LL 2 Inch PVC Vent Screen Cap

Need a directional vent solution?

🛒 View 90 Degree PVC Vent Cap

Furnace Intake Pipe Freezing FAQ

Why does my furnace intake pipe freeze in winter?

A furnace intake pipe may freeze when moisture from the exhaust system reaches the intake opening and condenses in freezing temperatures. A common cause is intake and exhaust pipes being installed too close together or at the same height.

Can a blocked furnace intake pipe stop the furnace from working?

Yes. A restricted intake pipe can affect combustion airflow and may cause the furnace safety system to shut down.

Should I cover my furnace intake pipe to prevent freezing?

No. Do not completely cover the intake pipe. The furnace requires proper airflow for safe operation.

Should furnace intake and exhaust pipes be separated?

The required spacing depends on the furnace manufacturer and installation instructions. Proper spacing helps reduce the possibility of exhaust gases affecting the combustion air intake.

Can a vent screen cause furnace freezing problems?

A properly sized vent screen should not restrict normal airflow. However, any screen that becomes blocked by dirt, ice, or debris should be cleaned regularly.

Can I prevent furnace intake freezing without replacing my furnace pipe?

Yes. In many cases, improving the outdoor termination and preventing snow, ice, and debris intrusion can solve recurring blockage problems.

Should furnace intake pipes have screens?

A properly designed screen can prevent pests and debris, but excessive restriction may create airflow problems.

How to Prevent Furnace Intake Pipe Freezing Problems

A few simple maintenance steps can help reduce winter furnace vent issues:

• Inspect PVC vent openings before winter.
• Remove snow and ice around the vent area.
• Keep intake and exhaust openings clear.
• Check for animal nests or debris.
• Follow furnace manufacturer installation requirements.

Final Thoughts

A frozen furnace intake pipe does not always mean the furnace itself is failing.

In many cases, the problem may start outside the home: intake and exhaust pipes installed too close together, allowing exhaust moisture to return toward the intake opening.

Understanding vent placement, keeping PVC openings clear, and adding proper protection can help reduce common winter furnace vent problems.
