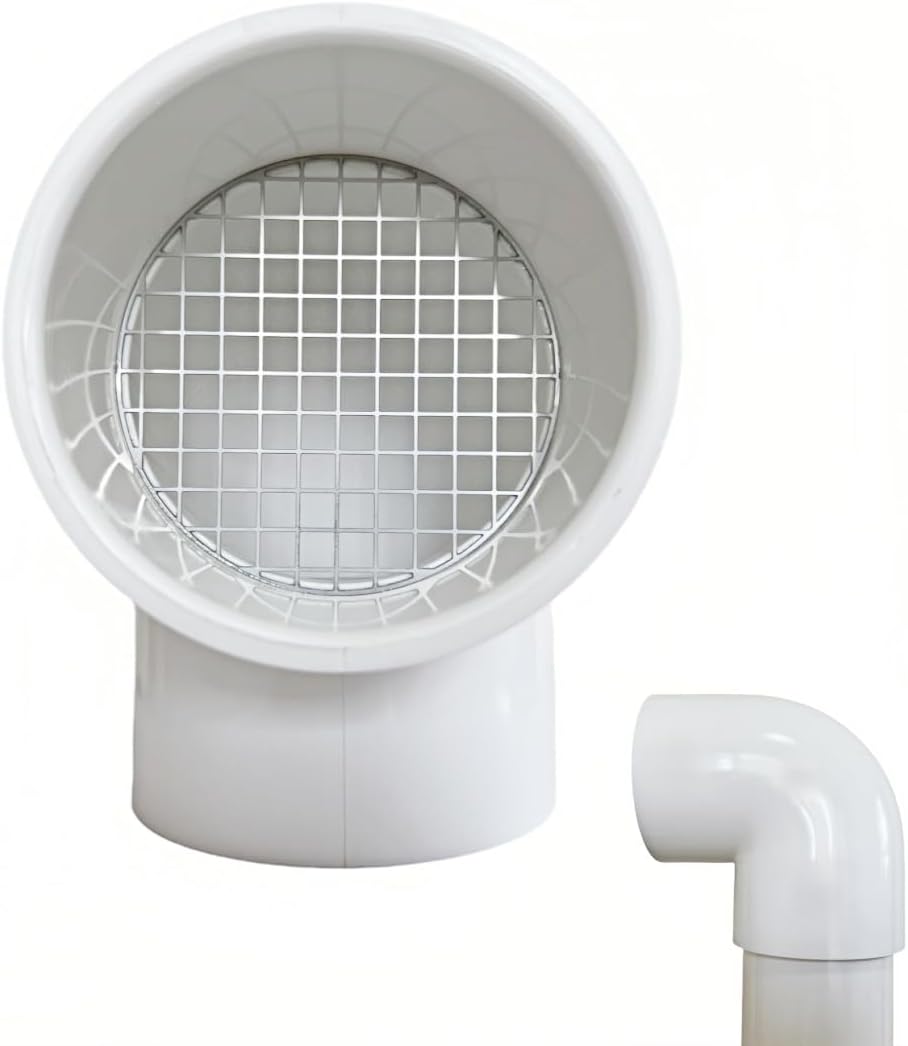

That small opening sits outside in every season. Birds, rodents, insects, leaves and windblown debris can reach an unprotected termination. The LGQF-LL 2 Inch 90 Degree PVC Termination Vent Cap turns the outlet downward and adds a fixed stainless steel screen without sealing the vent.

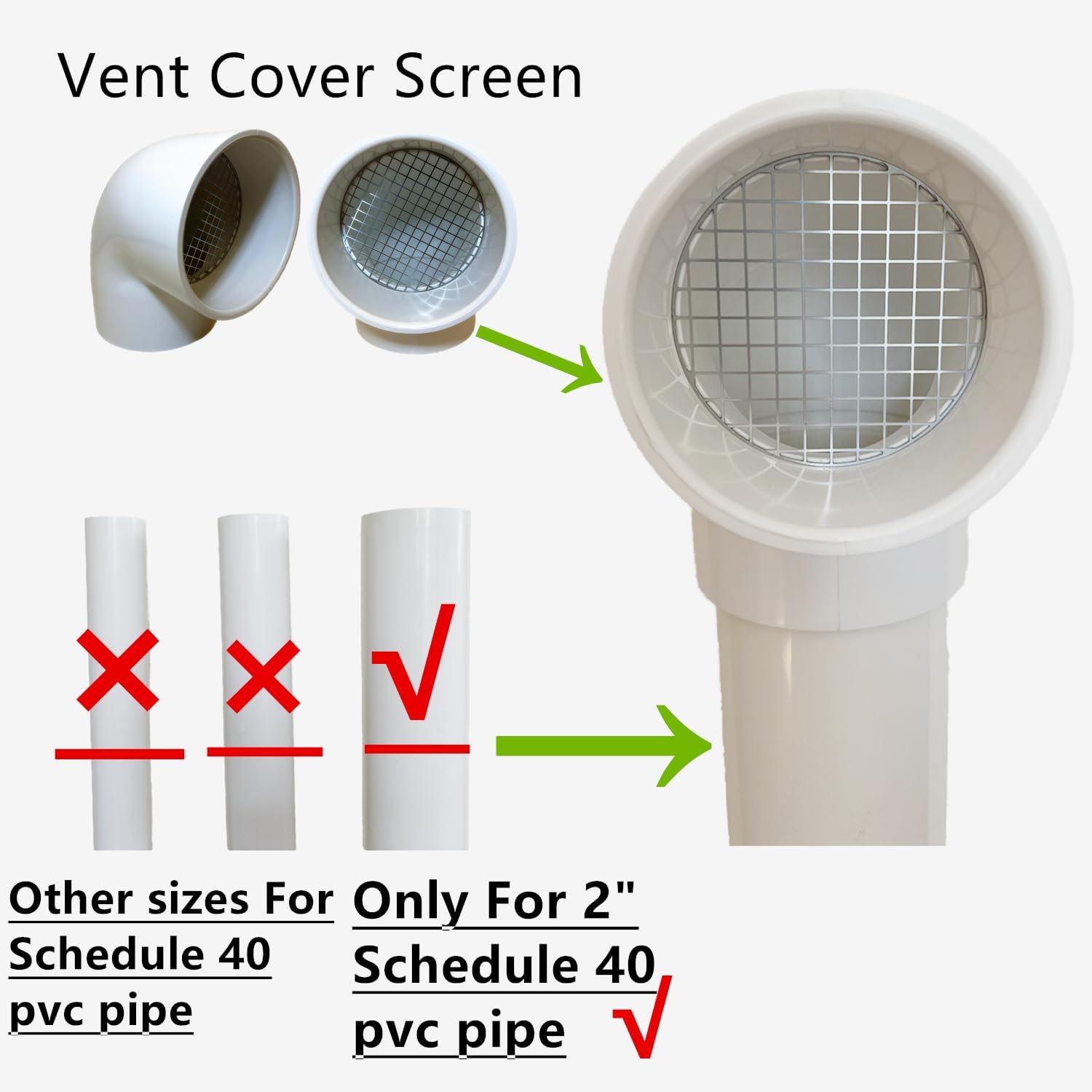

- Designed for compatible 2-inch Schedule 40 PVC furnace vent pipe
- Outer-fit socket for pipe measuring 2.36–2.375 inches outside diameter
- One-piece 90-degree body places the screened outlet downward
- Integrated 304 stainless steel screen helps deter pests and outdoor debris
- Condensation drainage opening gives incidental moisture a path out
- Made for compatible sidewall furnace intake and exhaust terminations

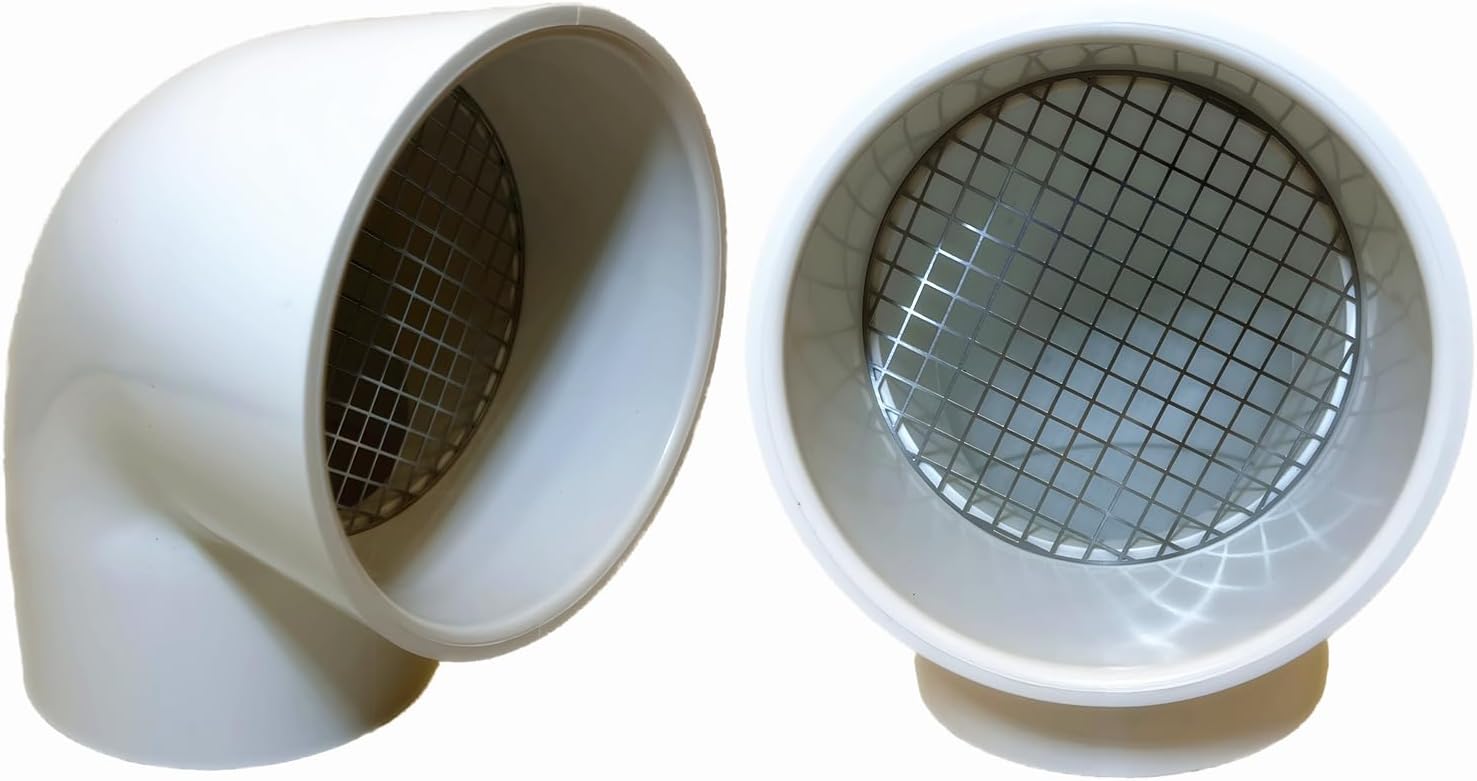

Look at the Connection, Bend and Screen
The product combines three visible parts in one body: an outer-fit lower socket, a 90-degree turn and a screened outlet. The two photographs below show the complete shape from the front and side instead of relying only on marketing language.

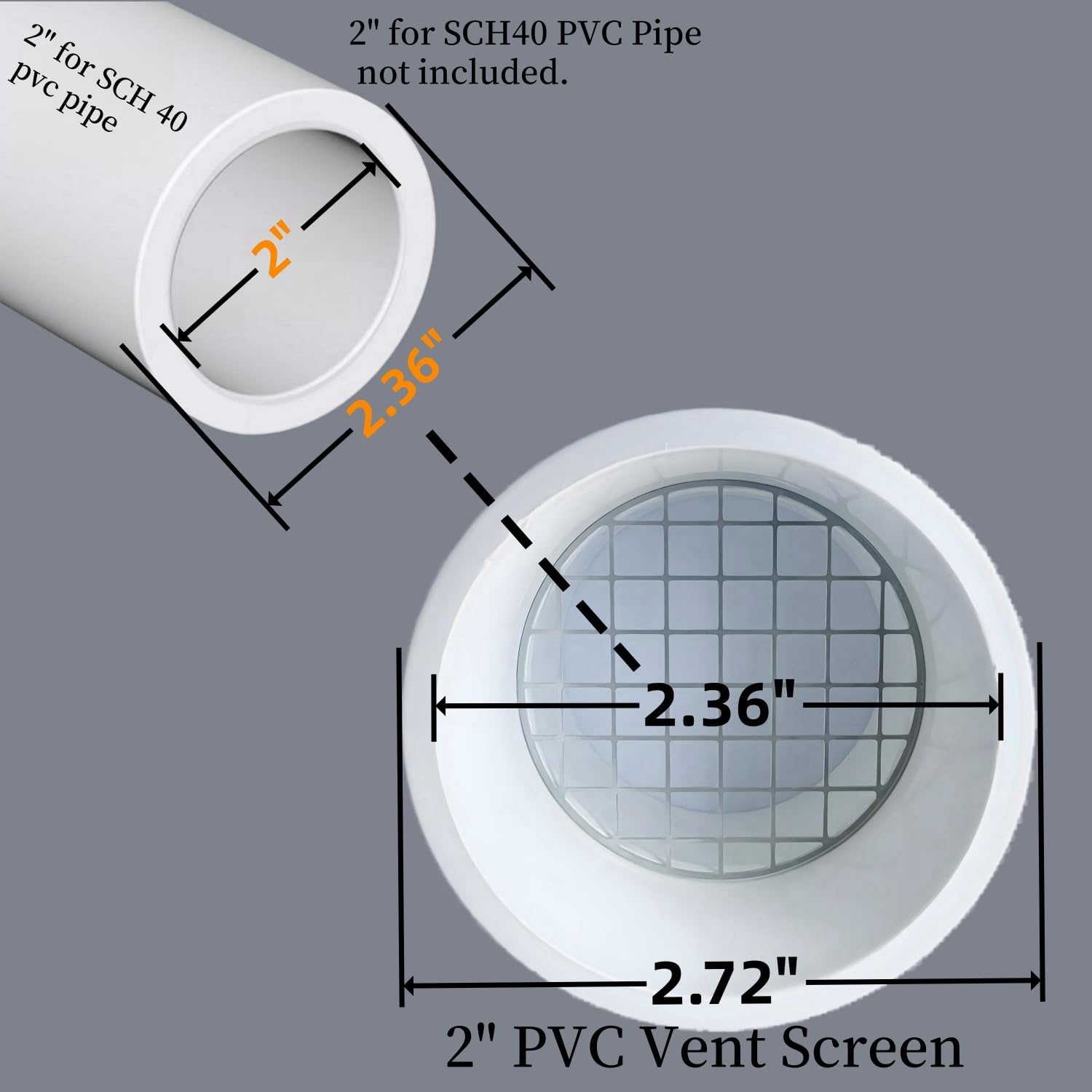

Measure First—Nominal Size Is Not the Actual Diameter
1. Confirm PVC
Verify that the existing sidewall termination is compatible PVC pipe, not another material.
2. Measure the OD
Measure across the outside of the pipe. The required range for this outer-fit cap is 2.36–2.375 inches.
3. Read the Manual
Confirm that the furnace manufacturer permits this 90-degree screened sidewall termination.
“2 inch” is the nominal pipe size. A tape-measure reading is more useful than the printed size alone.
A Simple Part Built Around Four Practical Details

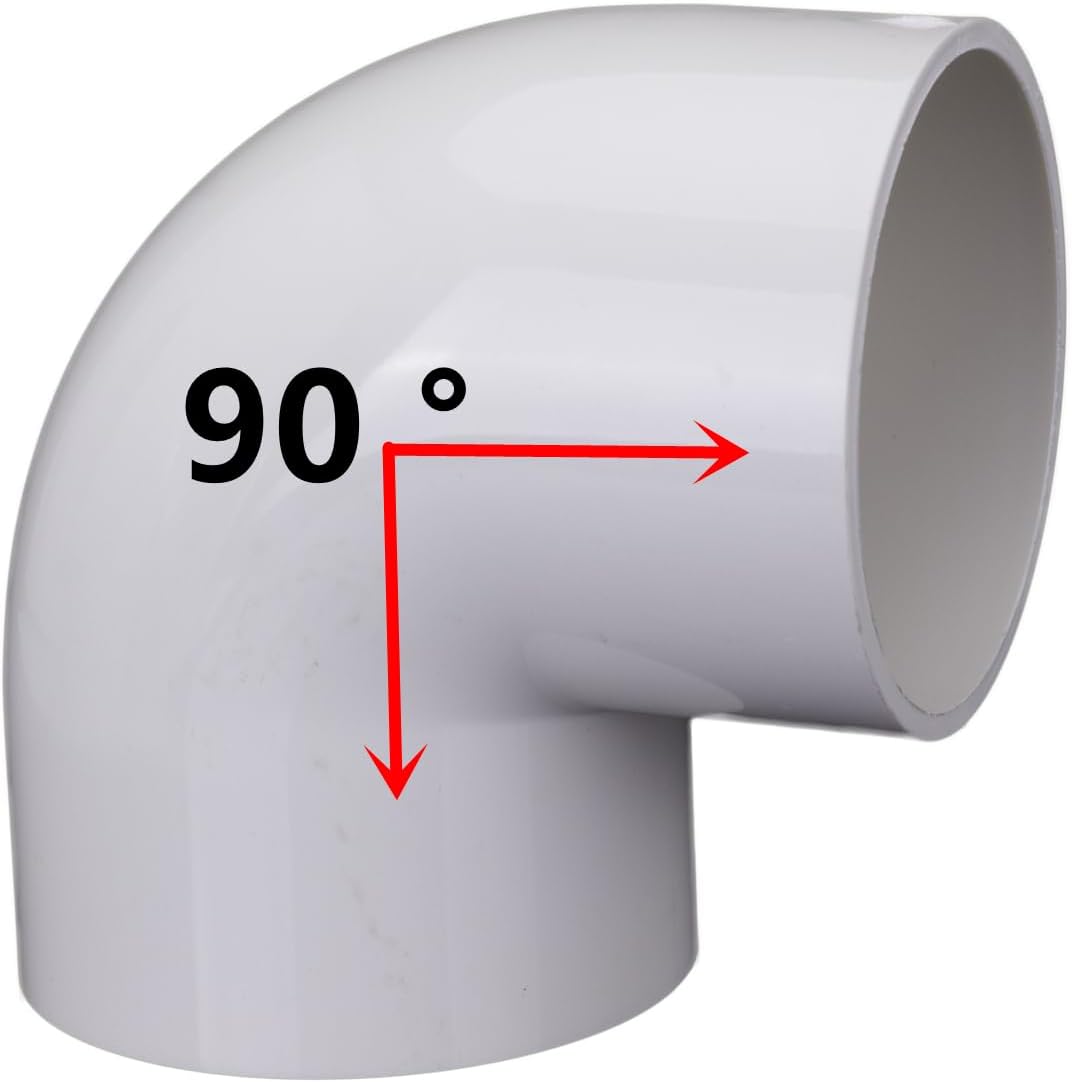

90° Downward Outlet
The one-piece PVC body turns the opening downward, helping reduce direct exposure compared with an uncovered horizontal pipe. No separate 90-degree elbow is needed at the cap connection.

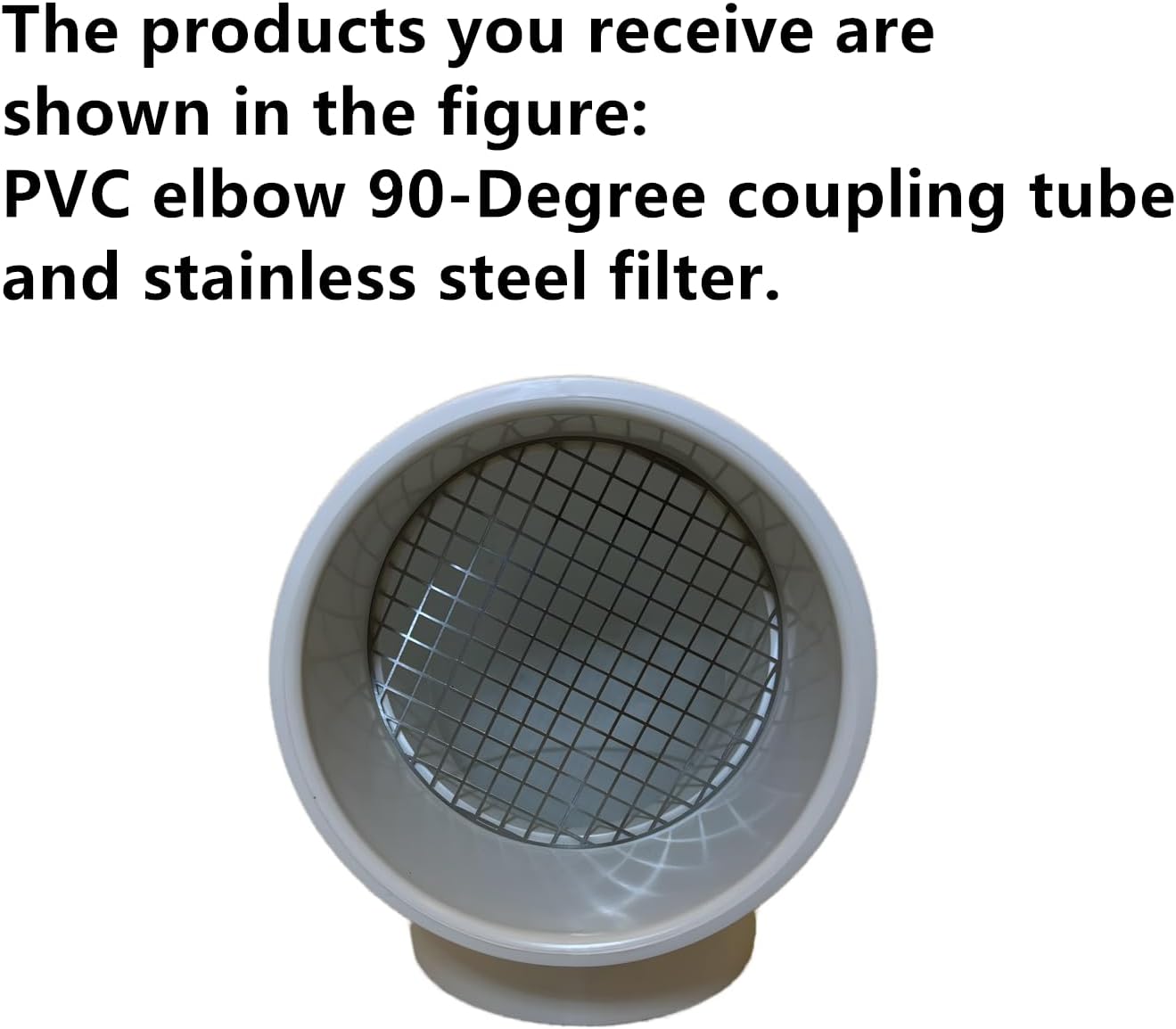

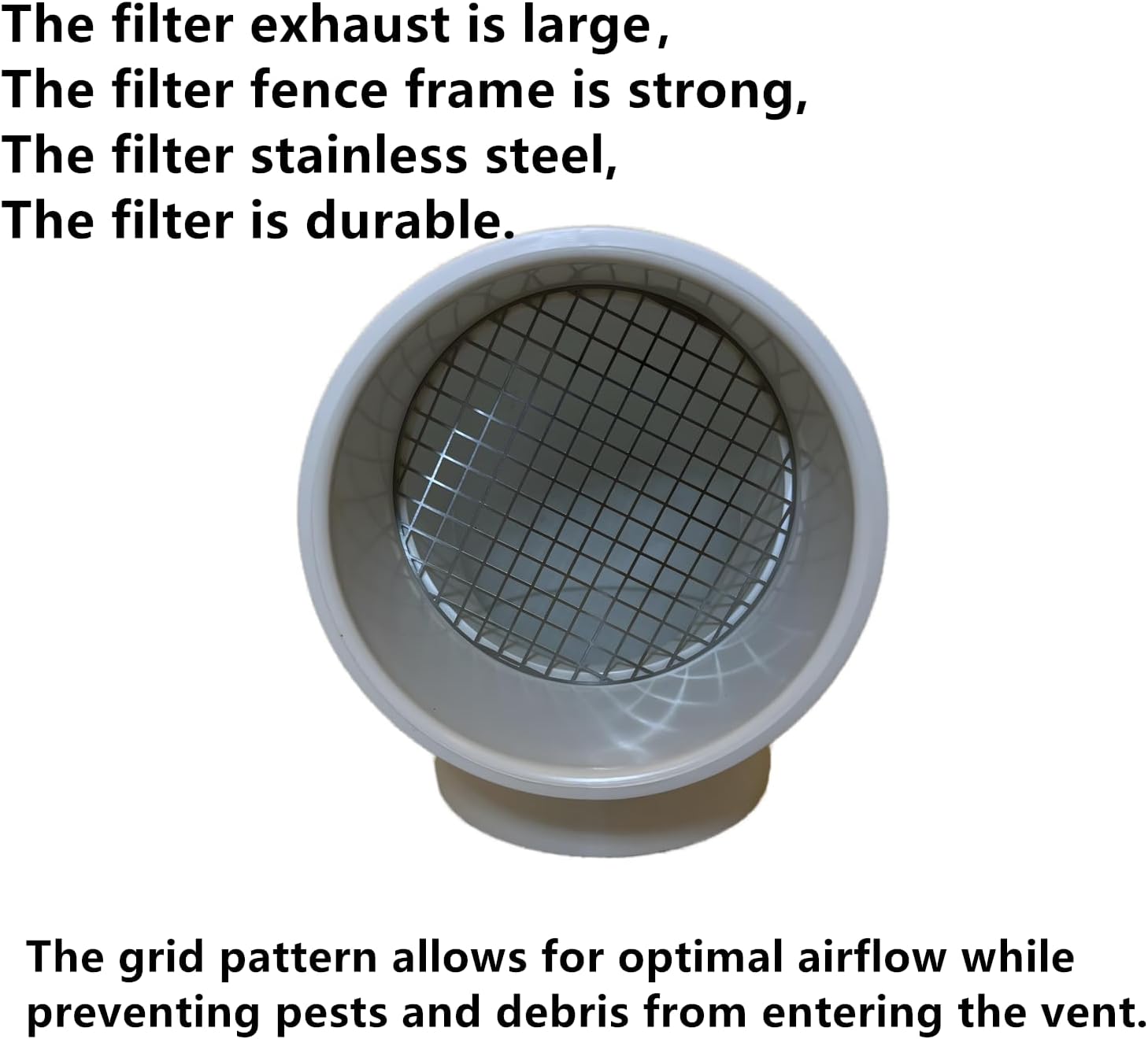

304 Stainless Steel Screen
The fixed screen helps deter birds, rodents, insects, leaves and larger debris while keeping the termination visibly open.

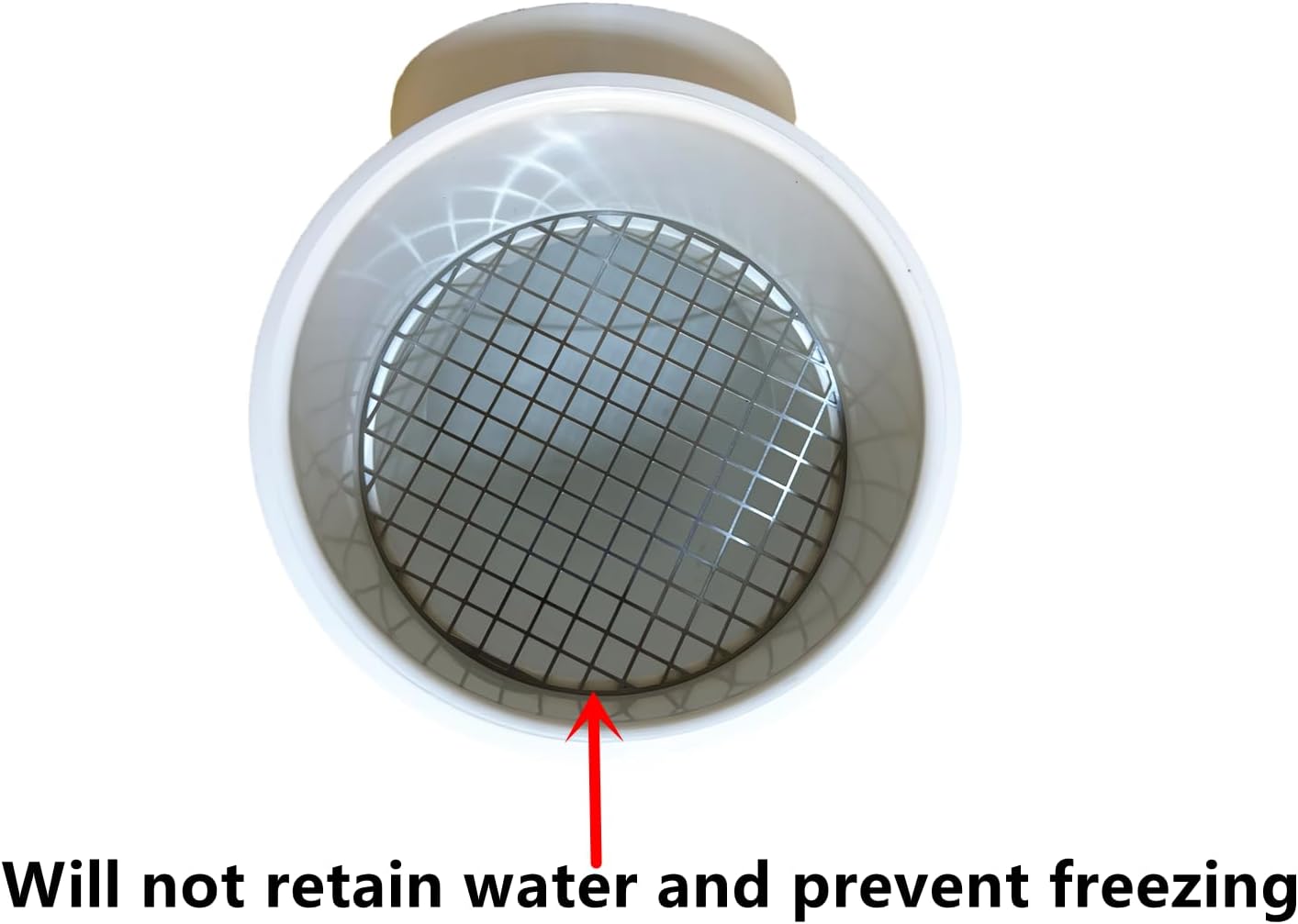

Condensation Drainage Opening
The drainage feature provides a path for incidental moisture that reaches the termination body. It cannot guarantee that frost or ice will never form.

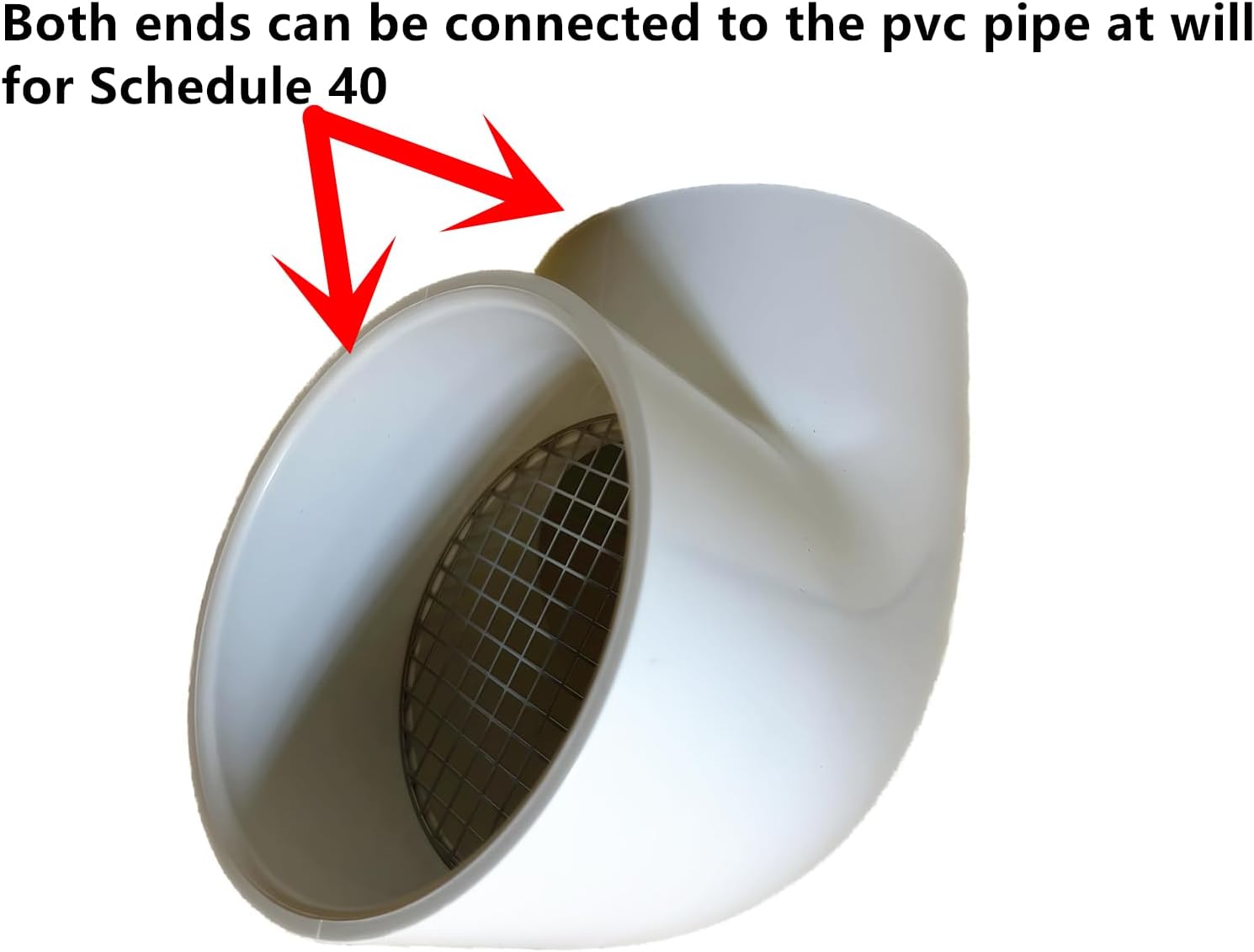

Outer-Fit Socket
The lower socket slides over compatible pipe measuring 2.36–2.375 inches OD. Confirm a secure, permitted connection before returning the appliance to service.
The Furnace Manual Still Has the Final Word
This vent cap is not a universal fitting. Appliance instructions determine permitted fittings, screening, equivalent vent length, termination position, clearances and maintenance.
- Use only for a compatible sidewall furnace intake or exhaust termination.
- Do not use this model as a vertical rooftop termination.
- Do not treat it as a sealed cap, backdraft damper, check valve or safety control.
- Do not install it on incompatible pipe material or an unverified outside diameter.
- Confirm that the furnace manufacturer permits a 90-degree screened termination.
- Keep the screen accessible for inspection and required maintenance.
- Maintain required clearances from grade, snow, doors, windows and nearby terminations.
What Buyers Notice After Installation
Owners do not describe this as a complicated product. They talk about the things that actually matter at the wall: fit, construction and whether the part feels secure on the intended pipe.
“This thing is great.”
“Very sturdy item.”
“The 2-inch fits perfectly onto the 2-inch PVC pipe.”
These are individual customer experiences. Actual pipe dimensions and installation conditions vary, so measure and verify the furnace requirements before ordering.
Read how exposed PVC terminations create real maintenance concerns in real homeowner PVC vent protection experiences.
For People Who Take Small Exterior Details Seriously
Responsible maintenance is rarely dramatic. It means noticing an exposed opening, checking the actual pipe size and following the appliance instructions before a small concern becomes a larger interruption.
LGQF-LL makes practical PVC vent protection for homeowners and installers who value clear fit information, durable materials and realistic expectations. The goal is not to promise a miracle. It is to help you choose the correct part for a compatible system.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 90 Degree PVC Termination Vent Cap |
| Nominal Pipe Size | 2 Inch |
| Required Actual Pipe OD | 2.36–2.375 Inches |
| Fit Type | Outer-Fit / Push-On |
| Compatible Pipe | Compatible 2 Inch Schedule 40 PVC Pipe |
| Configuration | 90 Degree Downward-Facing Outlet |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel |
| Drainage Feature | Integrated Condensation Drainage Opening |
| Primary Application | Compatible Sidewall Furnace Intake and Exhaust Terminations |
| Color | White |
| MPN | PVCVC-2-90-SS |
| GTIN / UPC | 081904961482 |
Compare the Available 2 Inch Termination Shapes
Learn Before You Install
A termination cap is only one part of the complete furnace vent system. These guides explain common outdoor problems and the checks that belong around the product decision:
Frequently Asked Questions
What size pipe does this 90-degree vent cap fit?
It is designed as an outer-fit cap for compatible 2-inch Schedule 40 PVC pipe measuring 2.36–2.375 inches outside diameter. Measure the actual pipe before ordering.
Does this cap insert inside the pipe?
No. The lower socket pushes over the outside of compatible pipe. It is not an internal insert or hub-style screen.
Why does a 2-inch pipe measure up to 2.375 inches outside?
Two inches is the nominal pipe size. The actual outside diameter is larger, which is why measuring the existing pipe matters.
Can it be used on furnace intake and exhaust terminations?
It is designed for compatible sidewall furnace intake and exhaust terminations, but only when the furnace manufacturer permits the pipe size, 90-degree fitting and screened outlet.
Does this replace a separate 90-degree elbow and screen?
The product combines a 90-degree PVC body and fixed screen in one termination accessory. Whether that configuration may replace existing fittings must be confirmed in the appliance instructions.
Does the downward outlet completely stop rain or snow?
No outdoor termination can guarantee complete exclusion in every condition. The downward direction helps reduce direct exposure compared with an uncovered horizontal pipe.
Will the screen affect furnace airflow?
Any screen or fitting can affect a vent system. Confirm permitted fittings, equivalent vent length, screening and maintenance requirements in the furnace instructions.
Does the condensation drainage opening prevent freezing?
No. It gives incidental moisture a path out but cannot guarantee prevention of frost or ice. Weather, condensation, placement and appliance operation all matter.
Can this 90-degree model be installed on a roof?
No. This page describes an outer-fit model intended for compatible sidewall furnace terminations, not a vertical rooftop termination.
Should the cap be glued onto the pipe?
Follow the appliance instructions and local installation requirements. Do not use adhesive or permanently modify the termination unless the applicable instructions permit it.
A Confident Order Starts With the Actual Pipe
Confirm compatible PVC, measure a 2.36–2.375 inch pipe OD and verify the furnace instructions. When those three details agree, you are choosing a part for the real installation—not guessing from a nominal label.
Price: $16.99 USD
Important Installation Notice
Always follow the furnace or appliance manufacturer’s installation instructions, local building requirements, allowable vent length, airflow limits and termination clearances. Inspect the screen periodically and remove external accumulation only when the appliance is safely shut down and the manufacturer’s maintenance instructions permit access.
