Need to Angle a Sidewall Furnace Vent Without a Long Bend?
An exposed PVC furnace vent can leave a direct opening for birds, rodents, insects, leaves and outdoor debris. A straight screen may not provide the direction you want, while a long-sweep bend may take up more wall space than the installation allows.
The LGQF-LL 2 Inch 45 Degree Short Sweep PVC Vent Cap combines a compact angled body, an outer-fit connection and a fixed 304 stainless steel screen. It is designed for compatible sidewall furnace intake and exhaust terminations—not as a general-purpose pipe fitting.
- Compact 45 Degree Short Sweep configuration
- Outer-fit connection for pipe measuring 2.36–2.375 inches outside diameter
- Compatible with correctly sized 2-inch Schedule 40 PVC pipe
- Integrated 304 stainless steel mesh helps deter pests and larger debris
- Condensation drainage path provides an exit for incidental moisture
- Designed for compatible sidewall furnace intake and exhaust terminations

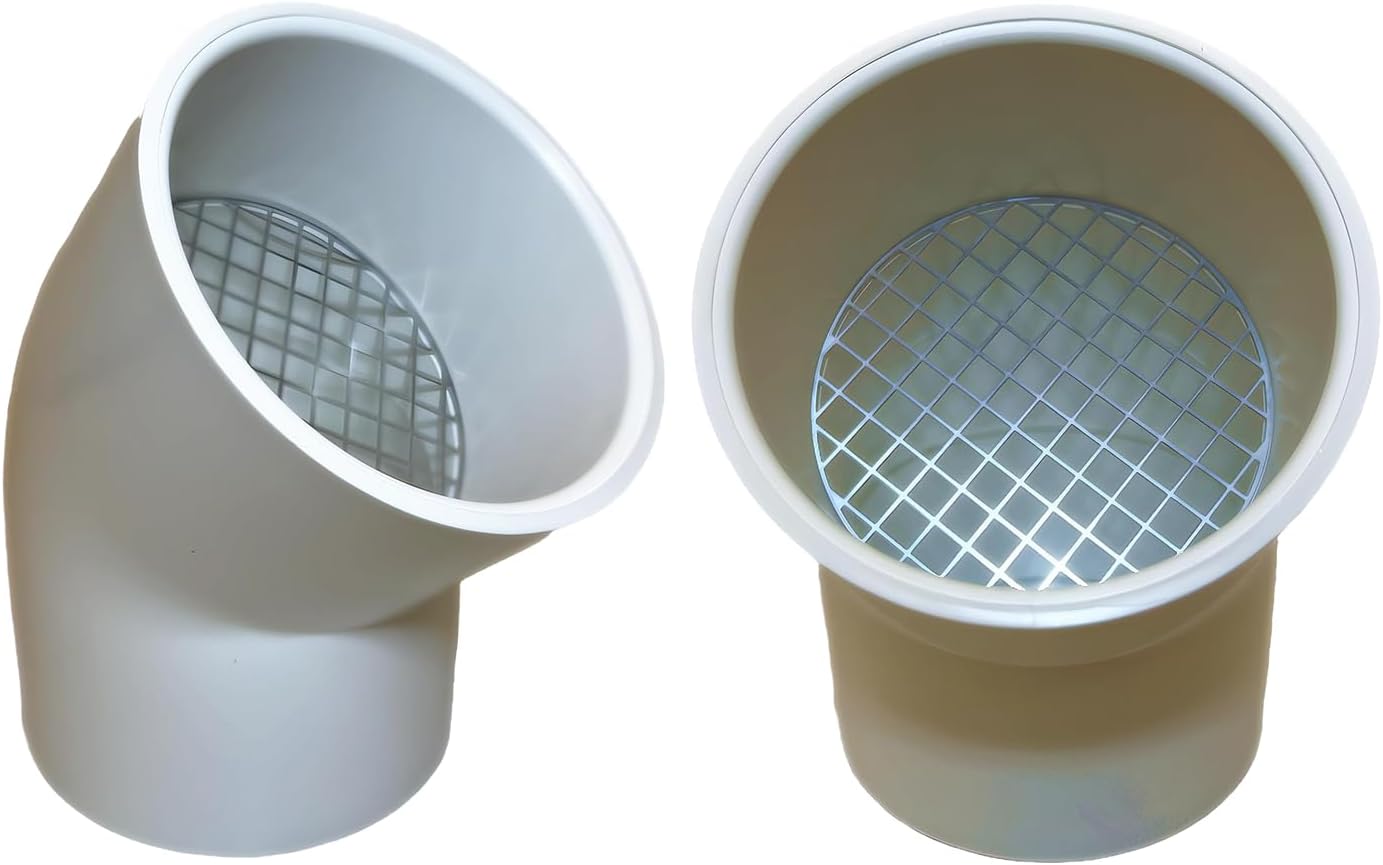

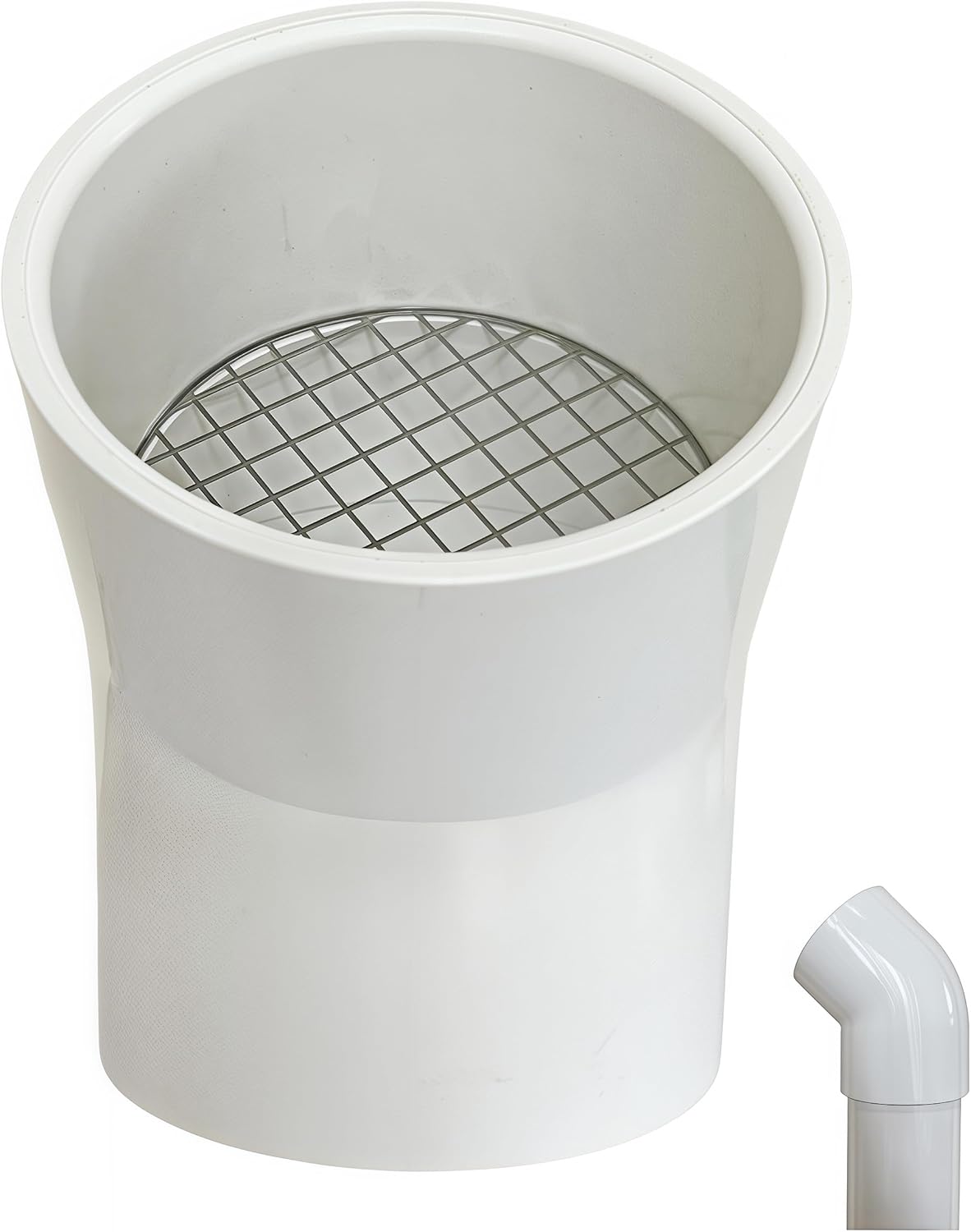

See the Short-Sweep Structure Before Ordering
This model uses a compact 45 degree bend. It occupies less space than the separate 45 Degree Long Sweep model, but it should not be described as a long-sweep fitting. The screened face is the finished termination opening and must remain open.

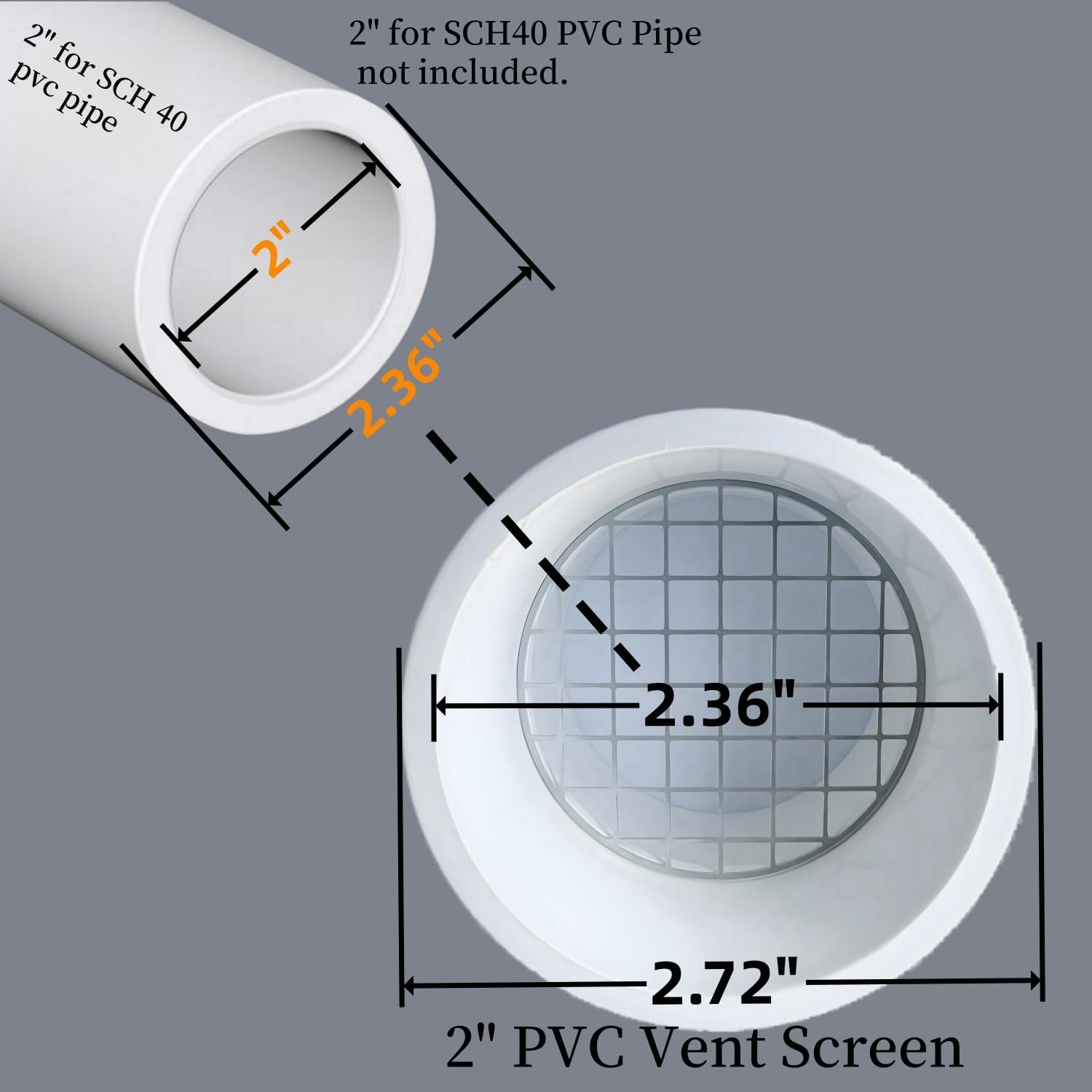

Measure the Pipe—Do Not Order From the Nominal Label Alone
1. Confirm PVC
Verify that the existing sidewall furnace termination uses compatible PVC pipe—not metal duct or flexible hose.
2. Measure the Outside
Measure straight across the pipe’s outside diameter. The required OD is 2.36–2.375 inches.
3. Check the Bend
Confirm that a compact 45 degree screened termination is permitted and that the angled face clears the wall and nearby objects.
“2 inch” is the nominal pipe size. This product fits by the actual outside diameter. Do not measure the pipe’s inside opening to determine outer-fit compatibility.

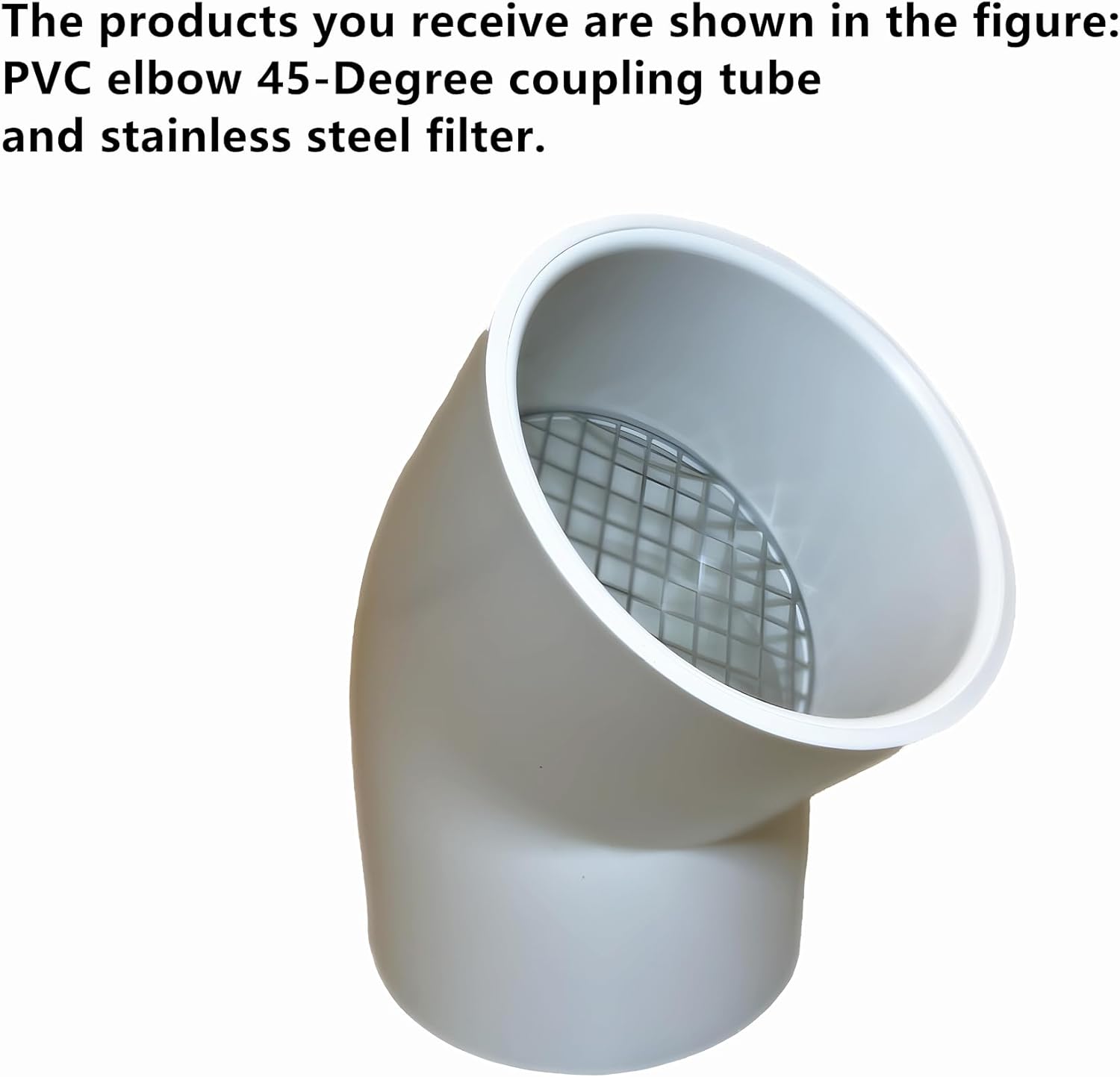

What Each Part Is Designed to Do

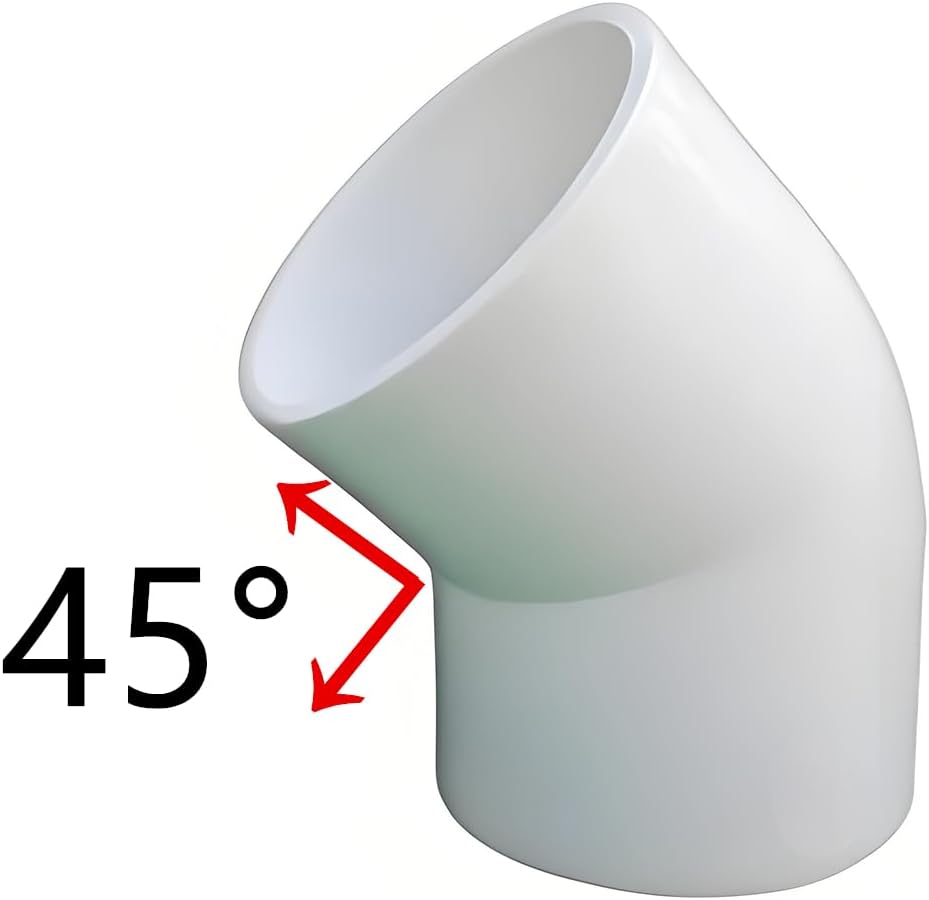

45 Degree Short-Sweep Body
The compact bend changes the direction of the termination opening while requiring less installation space than the wider 45 Degree Long Sweep model.

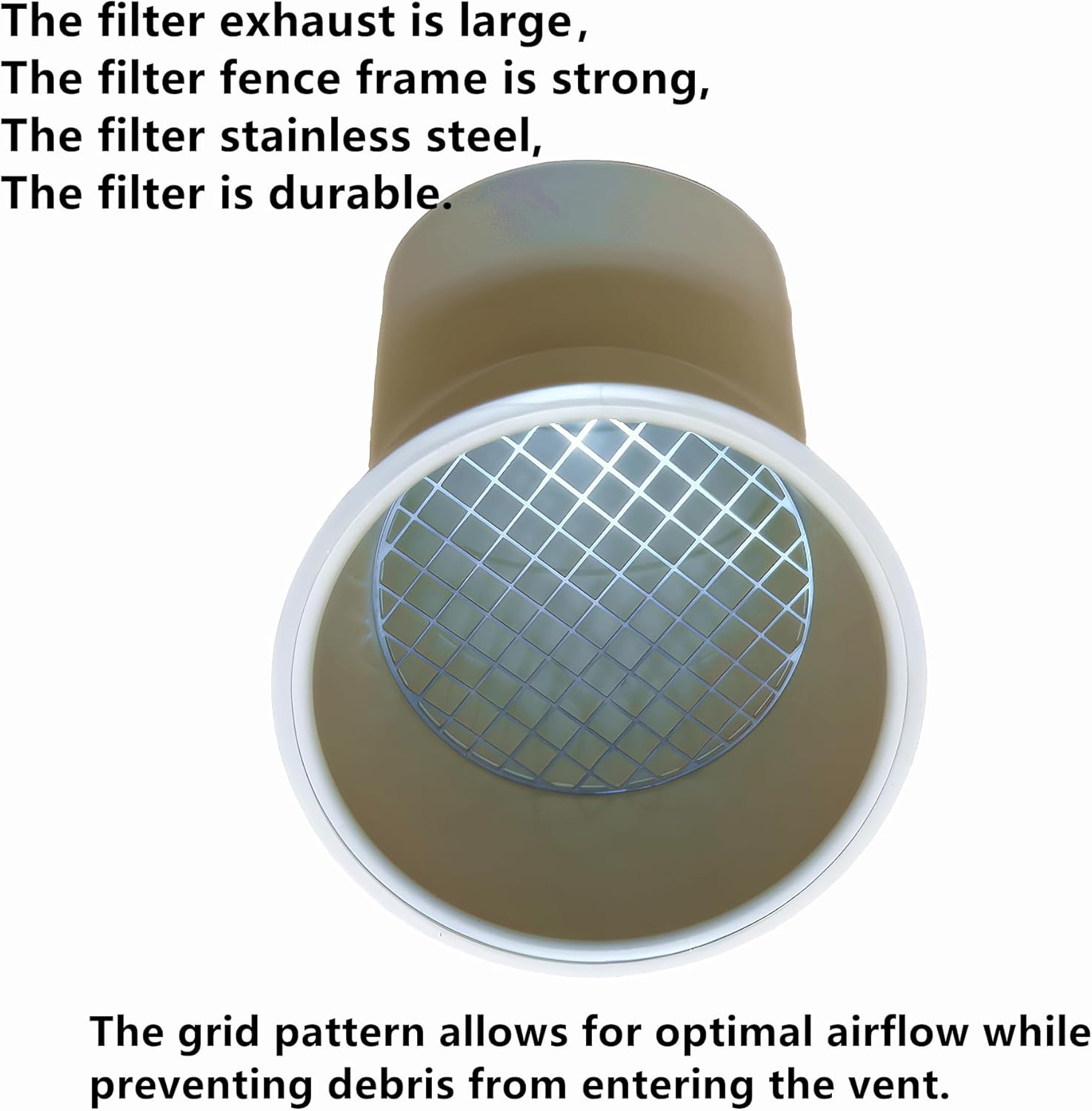

304 Stainless Steel Screen
The fixed mesh helps deter birds, rodents, insects, leaves and larger outdoor debris. It does not turn the vent into a sealed enclosure.

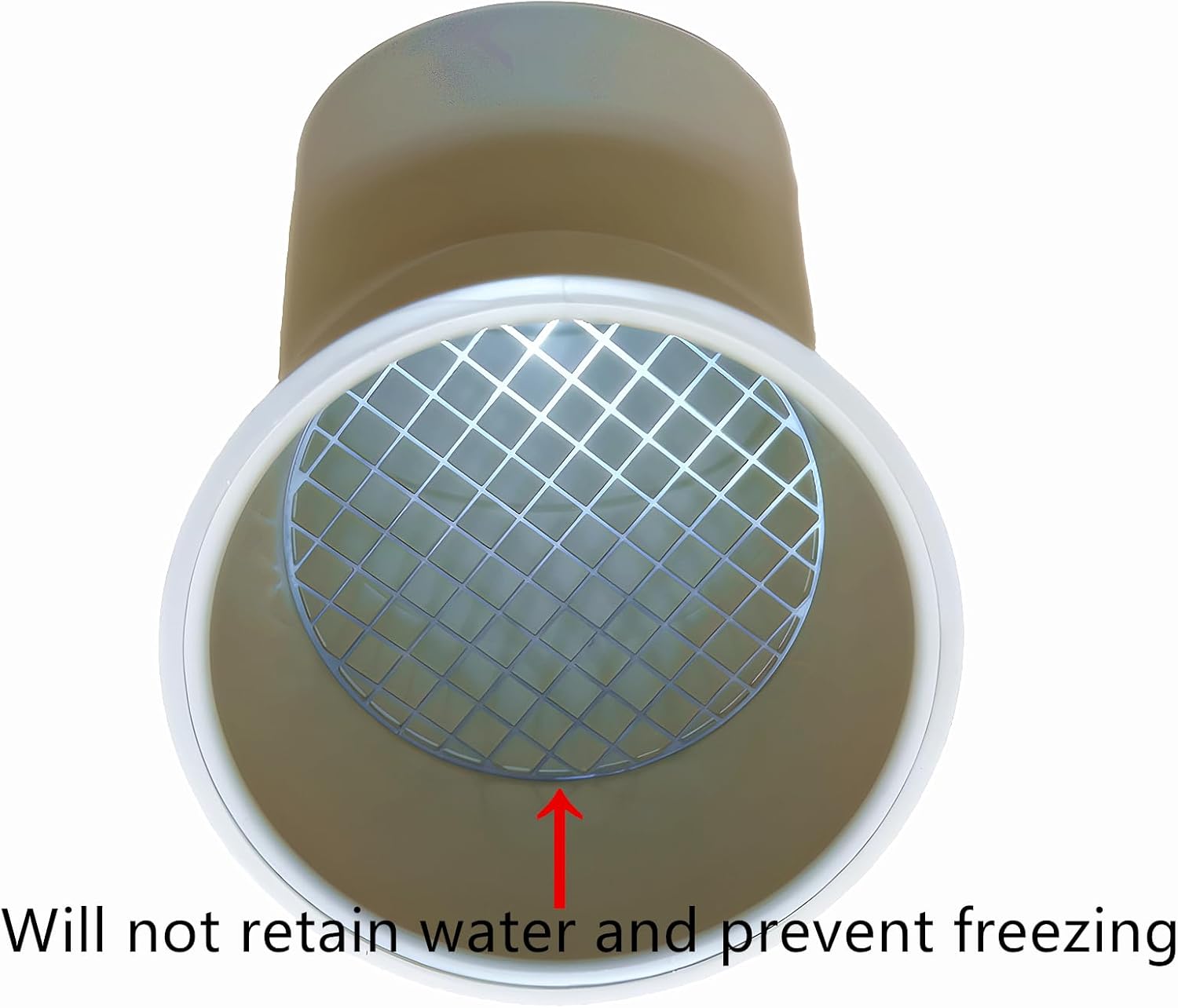

Condensation Drainage Path
The drainage path allows incidental moisture reaching the cap to exit. It is not a replacement for the appliance’s condensate system and cannot guarantee freeze prevention.
Outer-Fit Sleeve
The lower sleeve pushes over compatible pipe measuring 2.36–2.375 inches OD. Only this end connects to the existing pipe; the screened end remains open.
Know the Safety Boundary Before Installation
A furnace vent is part of an appliance system. The furnace or appliance manufacturer must permit the selected screened termination. This product cannot override the manufacturer’s instructions, airflow limits or required clearances.
- Use only for a compatible sidewall furnace intake or exhaust termination.
- Do not use this model as a vertical rooftop termination.
- Do not use it on drainage, sewer, plumbing, pool or sump-pump systems.
- Do not use it on dryer vents, metal ducts or flexible hoses.
- Do not treat it as a sealed pipe cap, backdraft damper, check valve or backflow device.
- Do not connect another pipe to the screened end.
- Confirm allowable screening, airflow, vent length, weather exposure and termination clearances.
- Keep the screen accessible for periodic inspection and maintenance.
What Real Installations Teach Us
Homeowners usually begin with a simple problem: an exposed outdoor opening that looks vulnerable. The successful installations are not based on the phrase “2 inch” alone. They start with an outside-diameter measurement, a check of the appliance manual and enough clearance for the selected bend.
Buyer feedback across LGQF-LL vent protection products repeatedly comes back to three practical details: the measured fit, the firmness of the stainless steel screen and whether the chosen shape clears the surrounding wall. Those checks matter more than choosing by the nominal pipe label alone.
Read real homeowner PVC vent protection problems and solutions.
A Small Detail That Shows You Maintain the Whole Home
Protecting an exposed vent opening is not a dramatic renovation. It is the kind of small, careful decision that helps prevent an avoidable outdoor problem from reaching an important home system.
Careful homeowners and installers measure before ordering, choose the bend that matches the available space and respect the appliance instructions. LGQF-LL makes this process easier by stating the fit, structure and limitations plainly.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 45 Degree Short Sweep PVC Vent Cap |
| Nominal Pipe Size | 2 Inch |
| Required Actual Pipe OD | 2.36–2.375 Inches |
| Fit Type | Outer-Fit / Push-On |
| Compatible Pipe | Compatible 2 Inch Schedule 40 PVC Pipe |
| Configuration | Compact 45 Degree Short Sweep |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel Mesh |
| Drainage Feature | Integrated Condensation Drainage Path |
| Primary Application | Compatible Sidewall Furnace Intake and Exhaust Terminations |
| Color | White |
| MPN | PVCVC-2-45-FF |
| GTIN / UPC | 081904961444 |
Compare the Other 2 Inch Vent Cap Shapes
Choose by the required termination configuration and available clearance—not by appearance alone.
Learn Before You Install
Vent placement, airflow, condensation, frost, snow level and termination clearances must be considered as part of the complete appliance system.
Frequently Asked Questions
What size PVC pipe does this 45 degree vent cap fit?
It is designed to push over compatible 2-inch Schedule 40 PVC pipe measuring 2.36–2.375 inches outside diameter. Measure the actual pipe before ordering.
Does this vent cap insert inside the pipe?
No. The lower sleeve is an outer-fit connection that pushes over the outside of compatible pipe.
What is the difference between this short-sweep model and the 45 degree long-sweep model?
This short-sweep model uses a tighter, more compact bend. The separate long-sweep model has a wider bend radius and requires more installation clearance. Neither should be substituted when the appliance requires a different configuration.
Can another PVC pipe be connected to the screened end?
No. Only the lower outer-fit sleeve connects to the existing pipe. The angled screened face is the termination opening and must remain open.
Can it be used on both furnace intake and exhaust terminations?
It is designed for compatible sidewall furnace intake and exhaust PVC terminations, but only when the furnace or appliance manufacturer permits this 45 degree screened configuration.
Does the 45 degree angle completely prevent rain or snow entry?
No. The angled outlet may reduce direct exposure compared with an uncovered horizontal opening, but it cannot guarantee exclusion of rain, wind-driven water or snow.
Does the stainless steel screen create zero airflow restriction?
No such guarantee should be made. Any screen can affect a vent system. Confirm allowable screening, airflow limits and inspection requirements in the appliance instructions.
Does the condensation drainage path prevent freezing?
No. It provides a path for incidental moisture reaching the cap but cannot guarantee prevention of frost or ice. Weather, condensation, vent placement and appliance operation all matter.
Can this model be used on a roof, drain, sewer, pool or plumbing vent?
No. This listing is intentionally limited to compatible sidewall furnace intake and exhaust PVC terminations.
Is this a backdraft damper, check valve or backflow device?
No. It is a fixed screened PVC termination vent cap and has no moving valve or damper mechanism.
Should the cap be glued to the pipe?
Follow the furnace or appliance manufacturer’s installation instructions and local requirements. Do not apply adhesive or permanently modify the termination unless the applicable instructions permit it.
Measure First. Choose the Short Sweep Only When It Fits the System.
Confirm compatible PVC, measure a 2.36–2.375 inch pipe OD, check the available clearance and verify that a compact 45 degree screened termination is permitted.
Price: $16.99 USD
Important Installation Notice
Always follow the furnace or appliance manufacturer’s installation instructions, local building requirements, allowable vent length, airflow limits, weather-exposure guidance and termination clearances. Inspect the mesh periodically and remove external accumulation only when the appliance is safely shut down and the manufacturer’s maintenance instructions permit access.
