LGQF-LL 3 Inch PVC Drain Guard with Stainless Steel Screen for Sump Pump Discharge and Outdoor Drainage

LGQF-LL 3 Inch PVC Drain Guard with Stainless Steel Screen for Sump Pump Discharge and Outdoor Drainage

$17.99 USD
$17.99 USD
Sale Sold out
Free U.S. Shipping Fulfilled by Amazon.
Buy on Amazon
3-inch outdoor drainage opening protection

Keep an Open Drain Receiver Open—Without Leaving It Completely Exposed

A 3-inch PVC drain receiver beside a sump pump discharge, pool backwash line or outdoor drainage area may need to remain open. That same opening can invite frogs, leaves, insects and larger pieces of debris. This LGQF-LL outer-fit drain guard adds a removable stainless steel screen around a compatible 3-inch Schedule 40 PVC opening so the area is easier to inspect and protect.

What it isA straight, outer-fit PVC drain guard with stainless steel screen.
What it fitsCompatible 3-inch Schedule 40 PVC pipe with an outside diameter near 3.50 inches.
Where it belongsAn accessible, non-pressurized outdoor drain receiver or screened drainage opening.
What it is notNot a sump pump, closed end cap, 4-inch yard grate, check valve or backflow preventer.

Is the Open PVC Pipe the Problem You Are Trying to Solve?

The right customer is not looking for a new pump or another sealed fitting. The problem is the exposed opening at the receiving end of an outdoor drainage setup.

This may be the right product

You have a compatible 3-inch PVC receiver

  • The receiving pipe is nominal 3-inch Schedule 40 PVC.
  • The measured outside diameter is approximately 3.50 inches.
  • The opening is accessible for inspection and cleaning.
  • You need a coarse physical barrier against frogs, insects, leaves or outdoor debris.
  • The setup is open and non-pressurized at the guard.
Choose another component

You need a pipe fitting or flow-control device

  • You need a sealed PVC end cap.
  • You need a 4-inch lawn grate, pop-up emitter or sloped yard drain.
  • You need to connect corrugated pipe, SDR 35 pipe or a downspout extension.
  • You need a check valve, backflow preventer or certified air-gap fitting.
  • The screen would sit directly in a required high-flow or pressurized discharge path.

Know the Part Before You Order It

Accurate product identity: this is a 3-inch outer-fit screened PVC drain guard. It slides over the outside of compatible Schedule 40 PVC pipe. It does not insert into the pipe, seal the opening or redirect water like an elbow.

Why this matters: many products shown for “sump pump discharge” are actually 4-inch sloped grates designed for lawn-level drains, corrugated extensions or 4-inch drainage pipe. Those are different products with different connection sizes. Do not use their 4-inch fit charts for this LGQF-LL 3-inch guard.

Use the Product and Installation Photos to Confirm the Structure

The images below show the exact style of outer-fit screen guard and one real-world open-receiver arrangement. Compare the product shape, pipe direction and available clearance with your own installation before ordering.

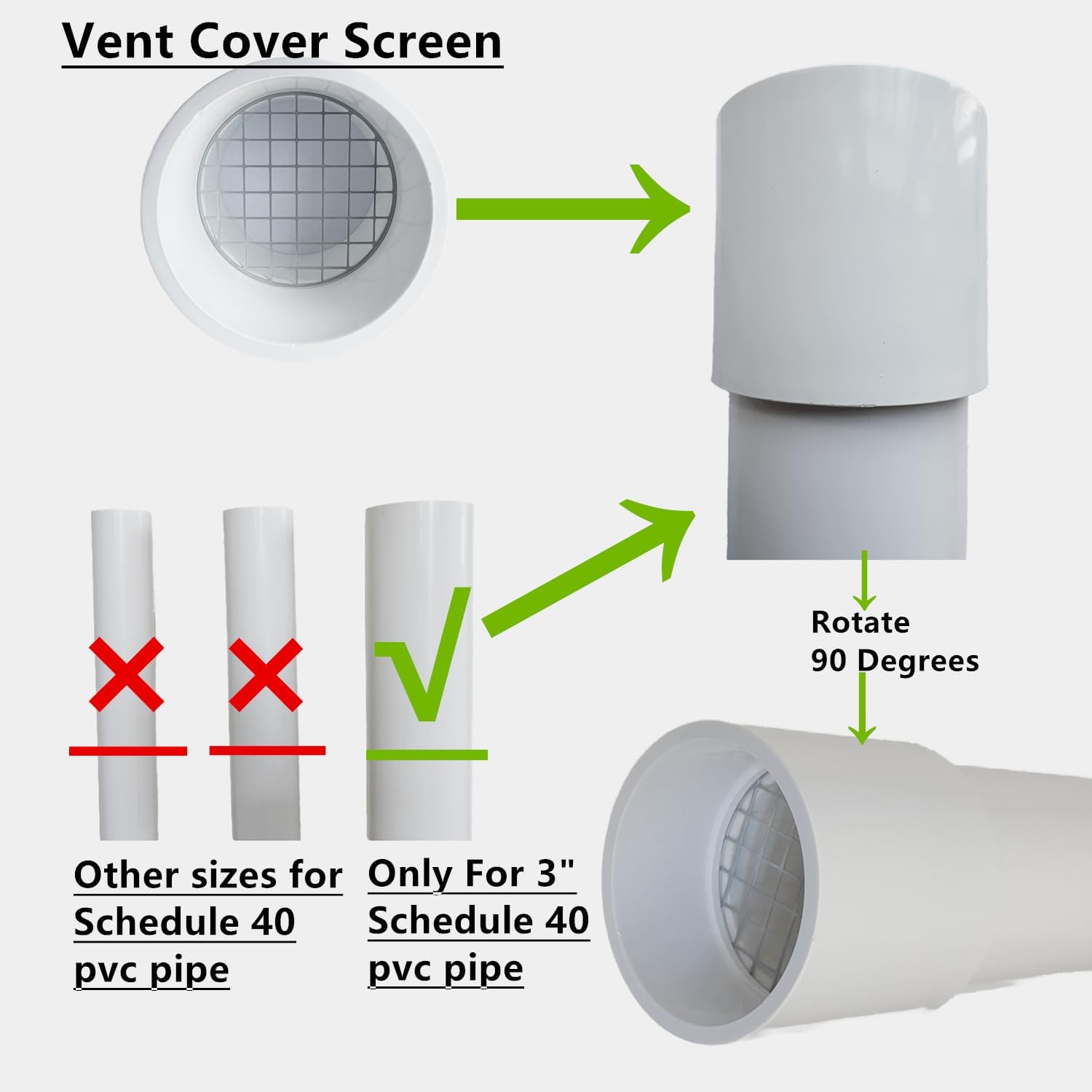

LGQF-LL 3 inch outer-fit PVC drain guard with stainless steel screen for compatible Schedule 40 PVC pipe
Product structure: straight PVC body, open stainless steel screen and outer-fit connection. The guard is removable; it is not a sealed cap.

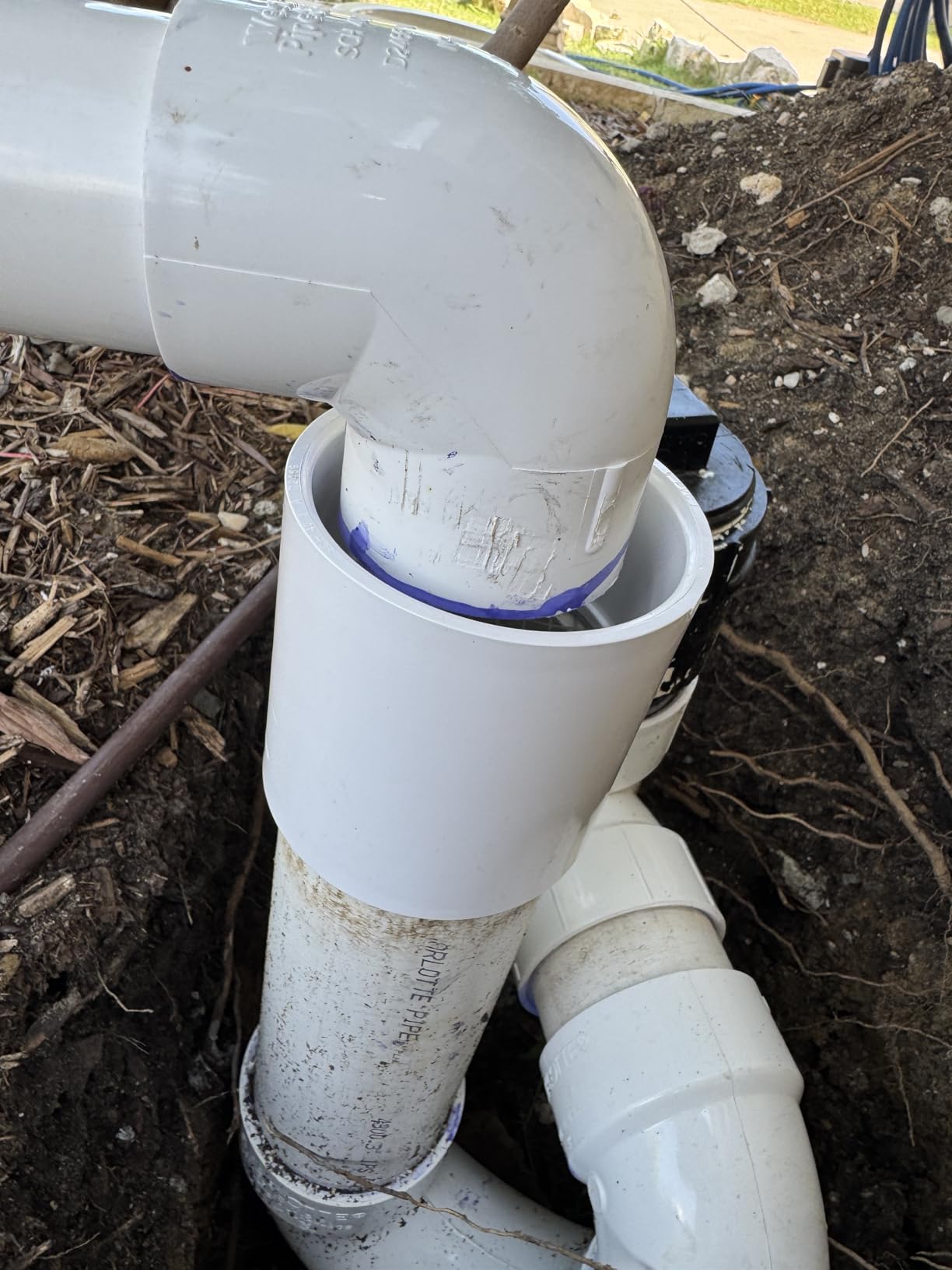

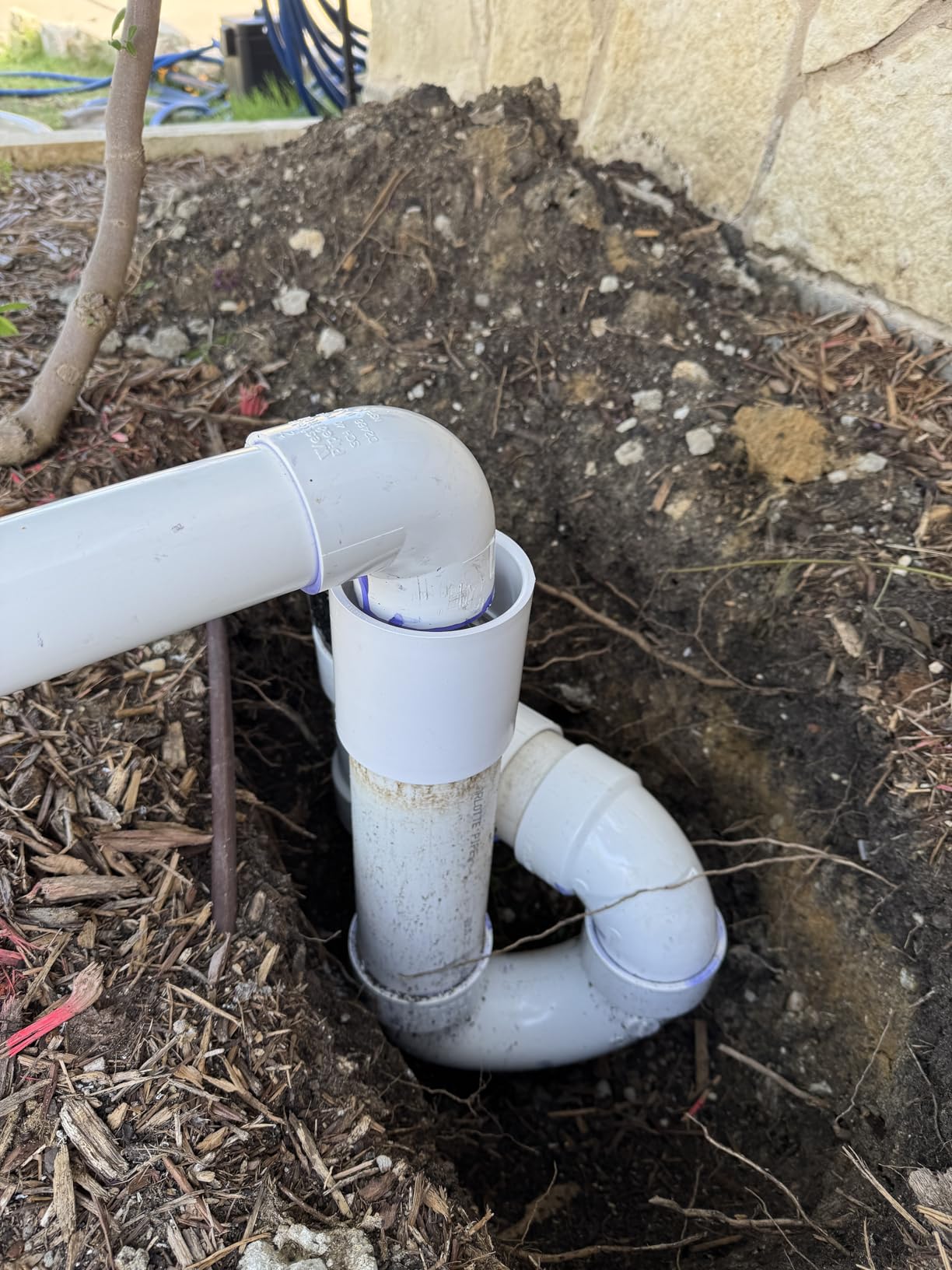

3 inch PVC screened drain guard installed over an outdoor open drain receiver below a smaller discharge elbow
One installation style: a smaller discharge elbow terminates above or within a larger open receiver while the outer guard screens the exposed gap. Local requirements still control the final setup.

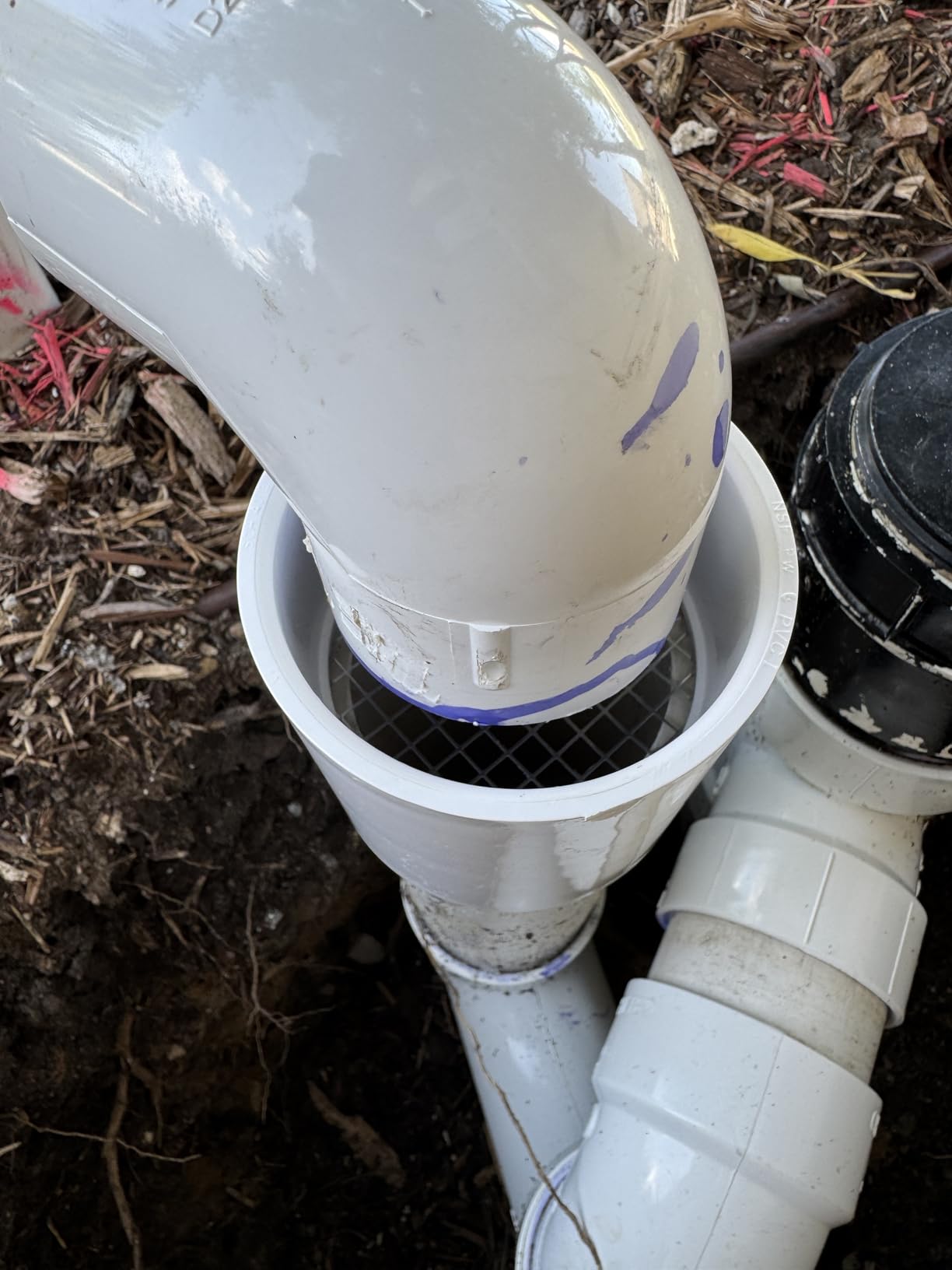

Close view of removable 3 inch PVC drain screen guard on an accessible outdoor drainage receiver
Access matters: keep the guard visible and removable so the screen and receiving pipe can be checked after storms, yard work or heavy discharge cycles.
LGQF-LL screened PVC drain guard helps deter frogs and outdoor debris near a pool backwash drainage opening
Protection goal: the metal screen forms a visible barrier against frogs and larger debris. It does not make the drainage system maintenance-free.

Measure the Outside of the Pipe—Do Not Order by the “3 Inch” Label Alone

30-second fit check

  1. Measure straight across the outside of the receiving PVC pipe.
  2. Confirm the pipe is compatible 3-inch Schedule 40 PVC with an outside diameter near 3.50 inches.
  3. Confirm the LGQF-LL body can slide over the outside of the pipe and remain accessible.
  4. Confirm the surrounding screen will not contact or obstruct the discharge outlet.
Nominal pipe size 3 inch
Target compatible pipe Compatible 3-inch Schedule 40 PVC
Target pipe outside diameter Approximately 3.50 inches
Published guard outside diameter Approximately 3.95 inches
Connection style Outer-fit / slip-over / removable
Body material PVC
Screen material Stainless steel
Orientation Straight / 0-degree screened opening

Manufacturing tolerances, pipe coatings and field conditions can affect fit. Measure the actual pipe and compare it with the current product dimensions before ordering.

A Practical Barrier for the Part of the Drainage System You Can See

Screened protection

The stainless steel screen helps deter frogs, insects, leaves and larger outdoor debris from entering the open space around a compatible receiver.

Outer-fit access

The guard slides over the pipe instead of being buried or permanently sealed, making visual checks and routine cleaning more straightforward.

Clear product purpose

It protects an exposed opening. It does not replace the pump, discharge pipe, check valve, drainage grate or correctly sized connector elsewhere in the system.

Where This 3-inch PVC Drain Guard May Be Used

Potential applications
  • An accessible outdoor receiver near a sump pump discharge line
  • A compatible pool backwash drainage receiver
  • A vertical or horizontal 3-inch Schedule 40 PVC opening that needs a removable coarse screen
  • An outdoor drainage opening where local rules permit a screened, non-sealed guard
Not intended for
  • 4-inch Schedule 40, 4-inch SDR 35 or corrugated drainage pipe
  • Downspout extensions, buried lawn drains, pop-up emitters or slope grates
  • Roof, furnace, HVAC, dryer or combustion vent termination
  • Sealed plumbing, sewer, septic or pressure-rated pipe connections
  • Any location where the screen cannot be inspected and cleared

Flow and Safety Boundaries Come Before Pest Protection

Do not place this guard where it can create a dangerous restriction. Every screen occupies some open area and can collect material. Never claim or assume “zero restriction.” Confirm required drainage capacity, pump-manufacturer instructions, overflow behavior and local rules before installation.

  • Do not install it as a sealed end on an active pressurized sump pump discharge.
  • Do not use it as a check valve or backflow-prevention device.
  • Do not describe an open receiver arrangement as a certified plumbing air gap unless the complete installation has been evaluated for that purpose.
  • Do not rely on it to prevent freezing, flooding, sewage backup or pump failure.
  • Inspect the screen after storms, mowing, leaf fall, pool service and periods of heavy discharge.
  • If water rises, backs up or drains more slowly, stop using the setup until the cause is corrected.

What Real Outdoor Installations Teach Us

The useful lesson is not that one cap fits every drainage system. It is that exposed openings should be identified correctly before they are covered.

Nominal size can mislead

A product advertised as “3 inch” may fit over a 3.50-inch outside diameter, while a 4-inch yard drain product may use a completely different socket or corrugated connection.

Open receivers need clearance

If a smaller discharge elbow empties into a larger receiver, the arrangement must remain open, accessible and capable of handling the expected flow without splashback or backup.

Screens require attention

The same screen that deters frogs and debris can collect grass, leaves or sediment. Responsible protection includes regular inspection, not installation and forgetfulness.

For more examples, open real homeowner PVC opening problems and solutions or read the LGQF-LL guide to PVC opening protection for pools and outdoor systems.

Confidence Comes From Choosing the Right Part for the Actual Opening

Function

A removable outer-fit screen helps protect a compatible 3-inch open receiver from frogs, insects and larger outdoor debris.

Peace of mind

You can see the guard, remove it and inspect the opening instead of wondering what has entered an exposed pipe.

Responsible ownership

Careful homeowners and installers measure the pipe, respect flow requirements and choose a maintainable solution instead of forcing a “universal” part onto the system.

Product Specifications

Brand LGQF-LL
Product Outer-fit screened PVC drain guard
Nominal size 3 inch
Compatible pipe target Compatible 3-inch Schedule 40 PVC, approximately 3.50-inch outside diameter
Published outside diameter Approximately 3.95 inches
Configuration Straight / 0 degree
Fit type Outer-fit / slip-over; removable
Body PVC
Screen Stainless steel
Color White
SKU / Amazon ASIN B0F1DJ8RR5
UPC 037936449078
Primary purpose Accessible, non-pressurized outdoor drainage opening protection

Need a Different Size or Connection?

If the receiving opening is not approximately 3.50 inches outside diameter, do not force this guard onto it. Measure first. If your project uses a different 4-inch protection assembly, review the LGQF-LL 4-inch sump pump discharge protection adapter in a new tab and compare its connection method with your system.

Important: a 4-inch slope grate made for SCH 40, SDR 35 or corrugated drainage pipe is not an interchangeable substitute for this 3-inch outer-fit screen guard. The search phrase may look similar; the physical interface is not.

Frequently Asked Questions

What pipe does this 3-inch PVC drain guard fit?
It is designed to slide over the outside of compatible 3-inch Schedule 40 PVC pipe with an outside diameter near 3.50 inches. Measure the actual pipe before ordering.
Does it insert inside the pipe?
No. It is an outer-fit product. The PVC body slides over the outside of the compatible receiving pipe.
Is the product 3 inches or 3.95 inches?
“3 inch” is the nominal compatible pipe size. The published outside diameter of the guard is approximately 3.95 inches, while the target 3-inch Schedule 40 PVC pipe outside diameter is near 3.50 inches.
Will it fit 3-inch corrugated drain pipe?
No compatibility is claimed for corrugated pipe. Corrugated pipe uses a different outside profile and connection. This listing is for compatible 3-inch Schedule 40 PVC only.
Will it fit 4-inch Schedule 40 or SDR 35 pipe?
No. This is not the 4-inch slope grate or yard drain emitter style seen in many sump-pump discharge listings.
Is this a sump pump or sump pump replacement part?
No. It is a screened guard for a compatible outdoor drainage opening. It does not include a pump, float, basin, hose or electrical component.
Can it be used near a sump pump discharge?
It may be used on a compatible open, non-pressurized 3-inch drainage receiver near a sump pump discharge if the guard does not obstruct required flow and the complete setup follows the pump manufacturer’s instructions and local requirements.
Can it be used for a pool backwash line?
It may help screen a compatible accessible receiving opening used in an outdoor pool backwash drainage arrangement. Confirm pipe size, expected discharge volume, chemical exposure and local disposal requirements before use.
Is this a plumbing air gap?
No certification as an air-gap fitting is claimed. A photographed installation may show physical separation between a smaller discharge elbow and a larger open receiver, but only the complete installation and applicable rules determine whether it meets local air-gap requirements.
Does it prevent backflow?
No. It is not a check valve or backflow preventer. Use the correctly specified flow-control device elsewhere in the system when required.
Does the screen restrict flow?
Every screen reduces some open area and may collect material. The product must be kept clean, and the installer must confirm adequate drainage capacity for the application.
Can I install it directly on a pressurized discharge outlet?
Do not use it where the screen can block or restrict an active pressurized discharge. It is intended as a guard for a compatible open, non-pressurized receiving opening.
Does it stop frogs, insects and leaves?
The stainless steel screen helps deter frogs, insects and larger pieces of debris. It cannot guarantee exclusion of every pest or particle, and the screen still requires inspection.
Does it prevent freezing or flooding?
No. Freezing and flooding depend on temperature, water volume, grade, discharge routing, maintenance and other system conditions. This product is not a freeze-prevention or flood-control device.
Should the cap be glued in place?
The product is intended as a removable outer-fit guard. Do not permanently glue it unless the complete system design specifically requires that method and inspection access is preserved.
How often should the screen be checked?
Inspect it regularly and after heavy rain, mowing, leaf fall, pool service or any event that can move debris. Clean it immediately if water flow changes or material is visible on the screen.
Can it replace a buried yard drain grate or pop-up emitter?
No. It is not designed as a traffic-rated, lawn-level or buried drainage grate, and it is not a pop-up emitter.
Can it be used on a furnace, roof or dryer vent?
No application is claimed here for furnace combustion vents, roof vents, metal ducts or flexible dryer vents. This product page is intentionally limited to compatible outdoor drainage opening protection.

Measure First. Protect the Correct Opening.

Choose this $17.99 LGQF-LL 3-inch PVC drain guard when the actual receiver is compatible Schedule 40 PVC near 3.50 inches outside diameter, the opening is accessible and the screen will not interfere with required flow.
