Need to Screen a 6 Inch PVC Opening Without Changing Its Direction?
A straight outdoor PVC opening can give birds, rodents, insects, leaves and larger debris a direct path into the pipe. Some systems need that opening protected while remaining aligned with the existing pipe rather than adding a 45, 90 or 180 degree bend.
The LGQF-LL 6 Inch 0 Degree PVC Vent Screen Cap adds a fixed 304 stainless steel mesh at the end of compatible pipe. Its sleeve fits over the pipe exterior, keeping the screened face aligned with the original pipe direction.
- 0 Degree straight-through screened termination
- Outer-fit sleeve for compatible pipe measuring approximately 6.625 inches OD
- Product fit opening shown at approximately 6.65 inches
- Designed for compatible 6-inch Schedule 40 PVC dimensions
- Fixed 304 stainless steel mesh helps deter pests and larger outdoor debris
- Suitable only where the connected vent or non-pressurized pipe system permits screening
See the Straight 0 Degree Structure
The screen stays in line with the pipe, so this model does not redirect the outlet or provide the downward-facing geometry of the 45, 90 or U-Bend models. Choose it only when a straight screened opening is appropriate for the actual system.

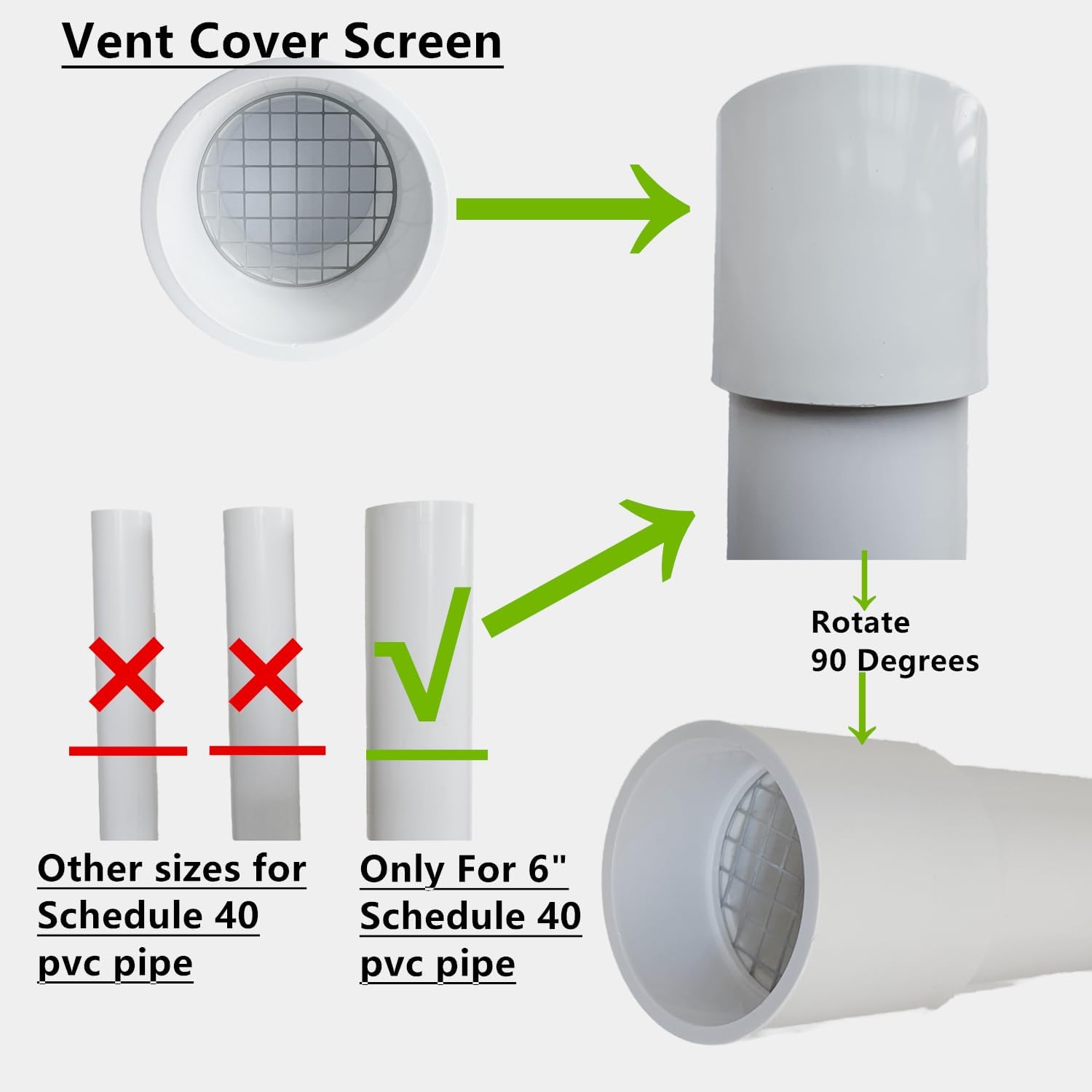

Confirm Pipe Diameter, Direction and Service Access
1. Identify the Pipe
Confirm compatible 6-inch Schedule 40 PVC—not metal duct, flexible hose or an incompatible thin-wall pipe.
2. Measure the Outside
Measure straight across the pipe exterior. The expected pipe OD is approximately 6.625 inches.
3. Check the Opening
Confirm that a straight screened face is permitted and will remain visible and accessible for inspection and cleaning.
“6 inch” is the nominal pipe size. Select this outer-fit cap by the actual outside diameter—not by the pipe’s inside opening.
Match the Screen to the Actual System
Permitted Furnace or PVC Roof Termination
Use only when the furnace, appliance or roof-vent system permits a straight screened PVC termination. Confirm airflow, allowable screening, weather exposure, equivalent vent length and required clearances.
Approved Drain or Pool Pipe Opening
It may be used on an open, non-pressurized outdoor drain, overflow, backwash or pool-related pipe termination only when the system permits a fixed screen and retained debris can be inspected and removed.
Pump-related use requires extra care: this is not a sump pump, pump fitting, strainer basket or discharge kit. Do not place it where a fixed screen could obstruct an active pressurized discharge, emergency overflow or suction line. Use only on a separate open termination whose system instructions permit screening.
What Each Part Is Designed to Do

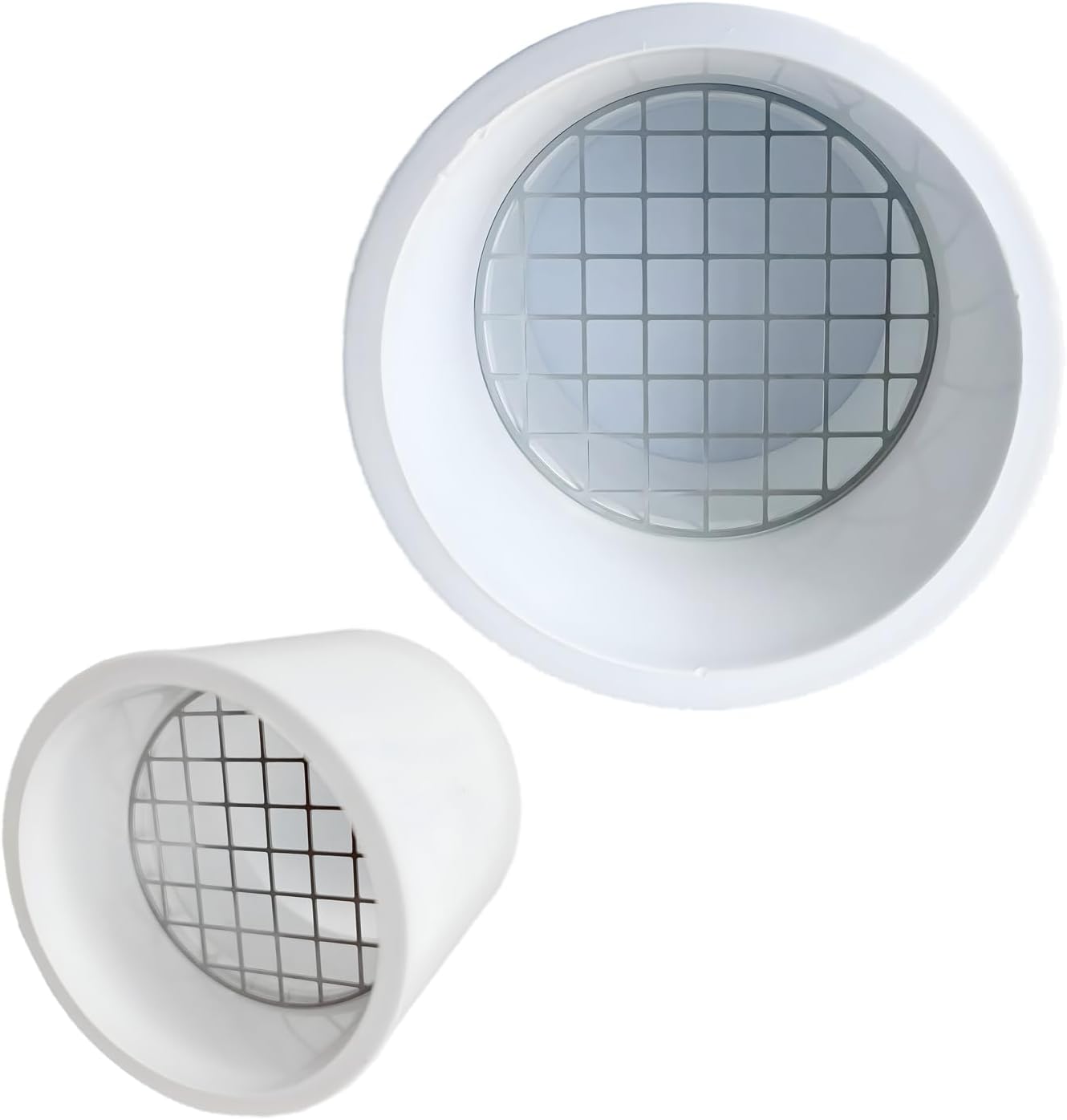

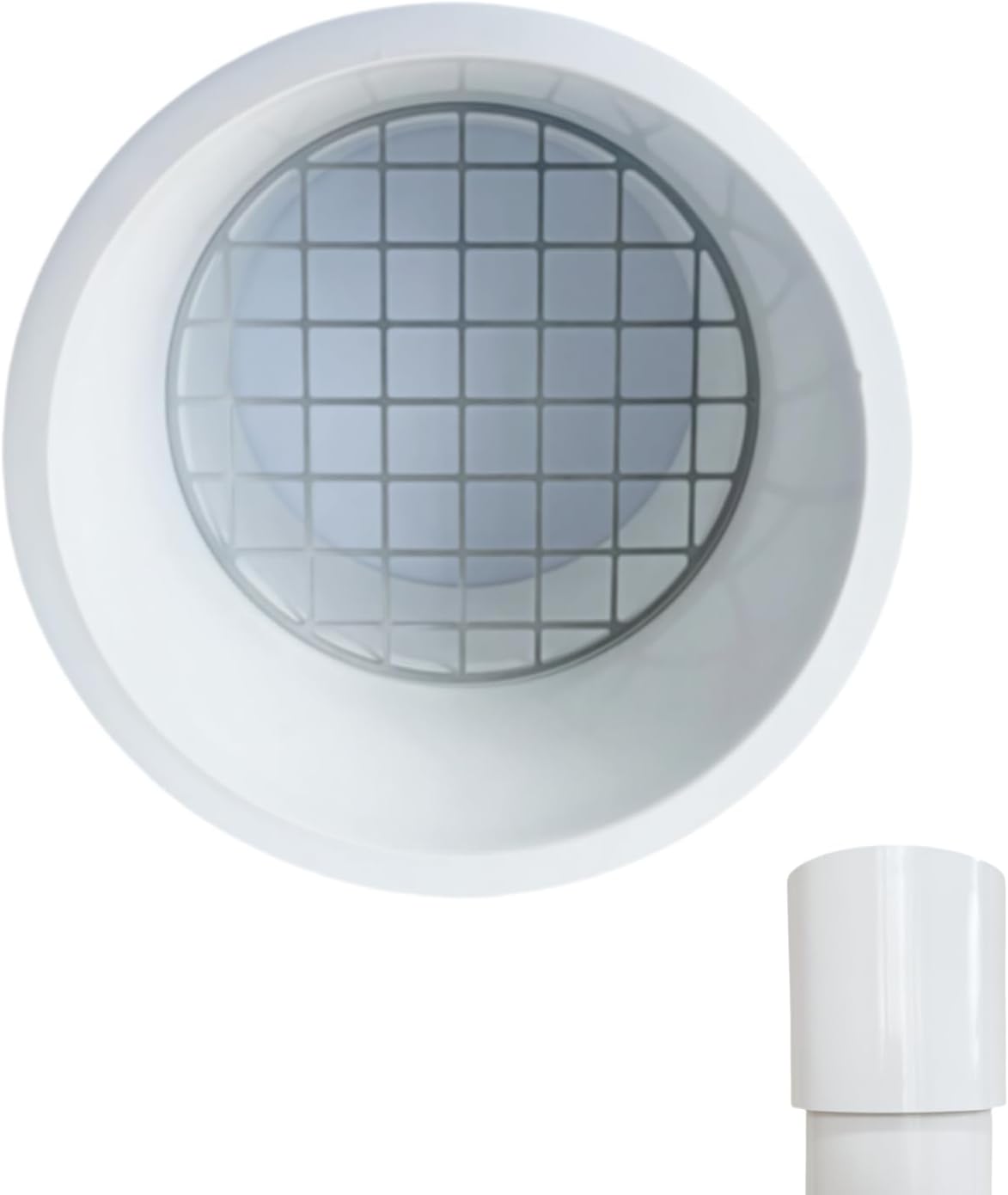

0 Degree Straight Body
The body keeps the screened face aligned with the existing pipe. It does not add a bend or change the outlet direction.

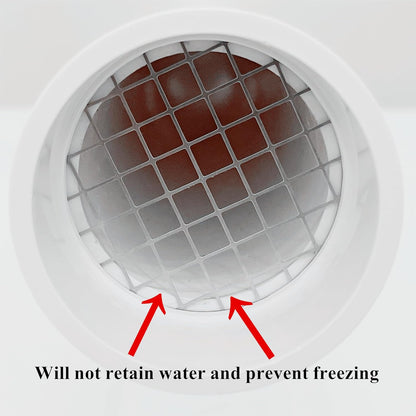

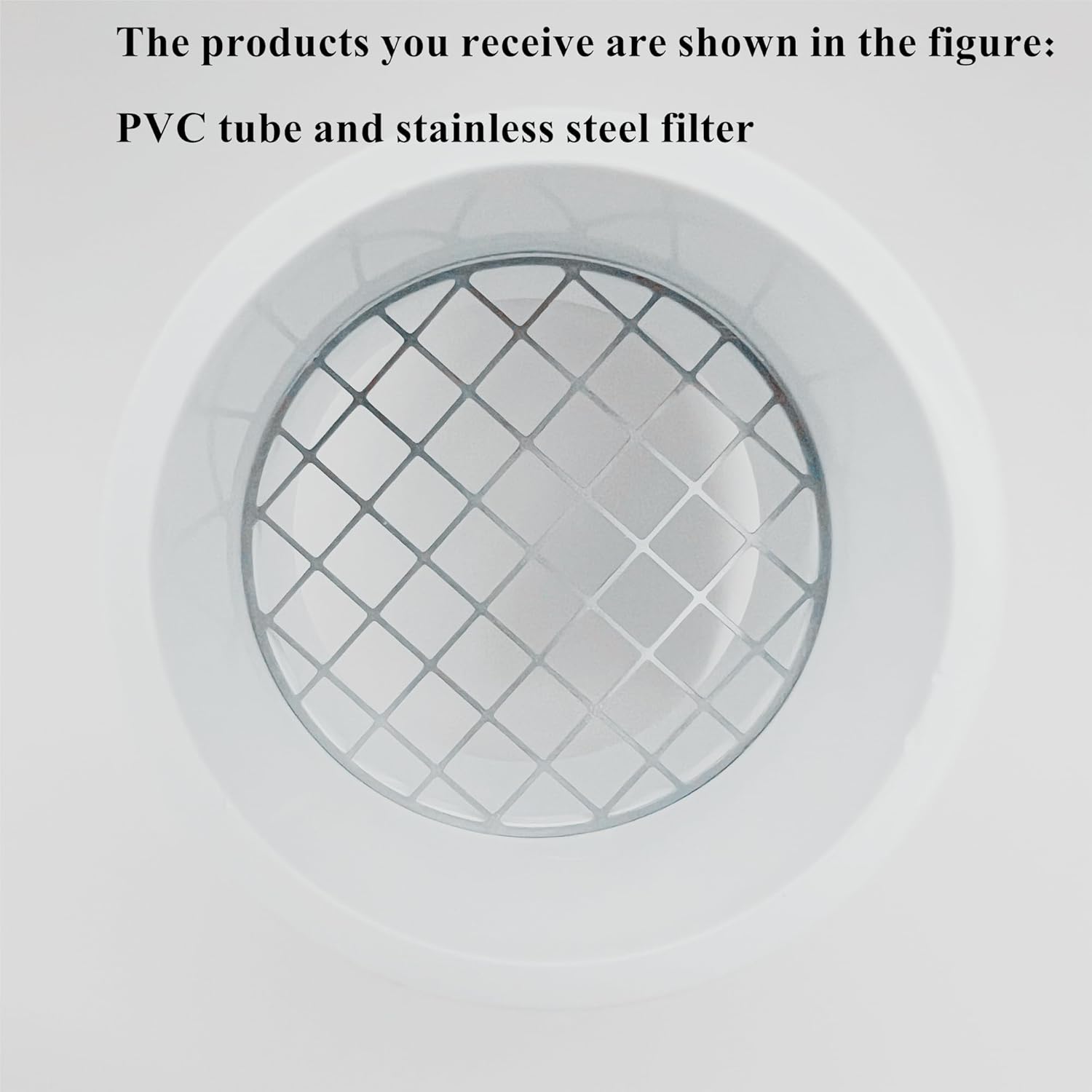

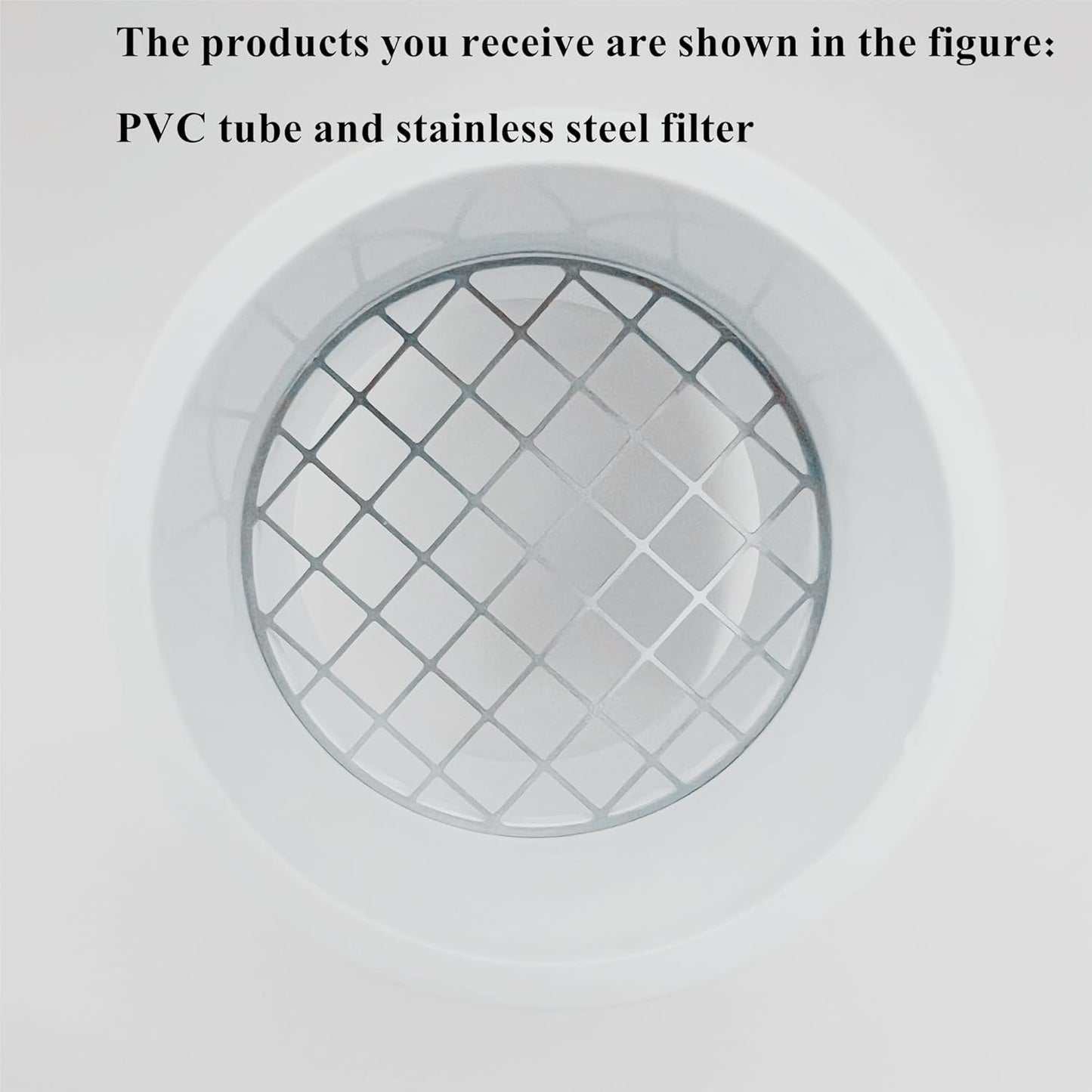

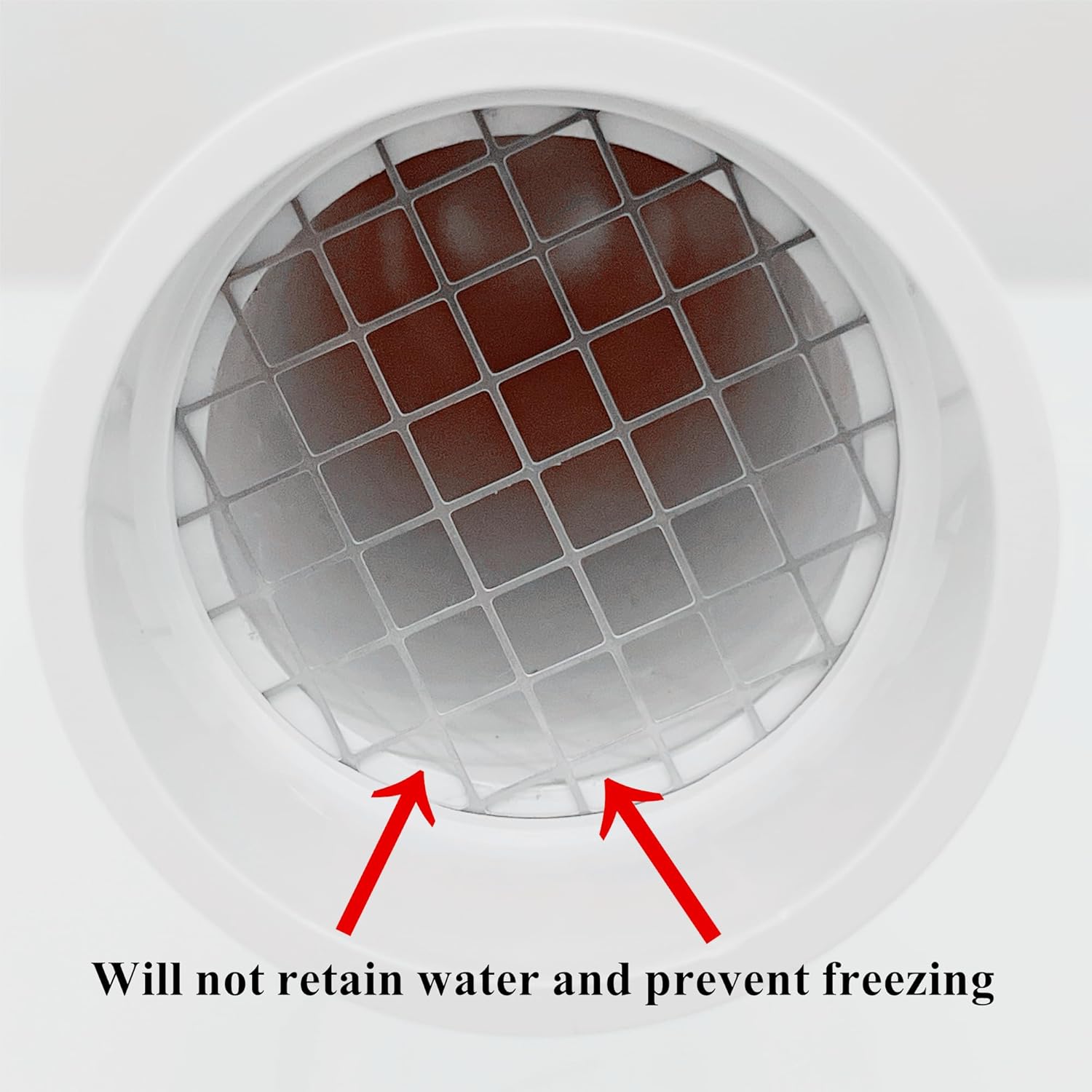

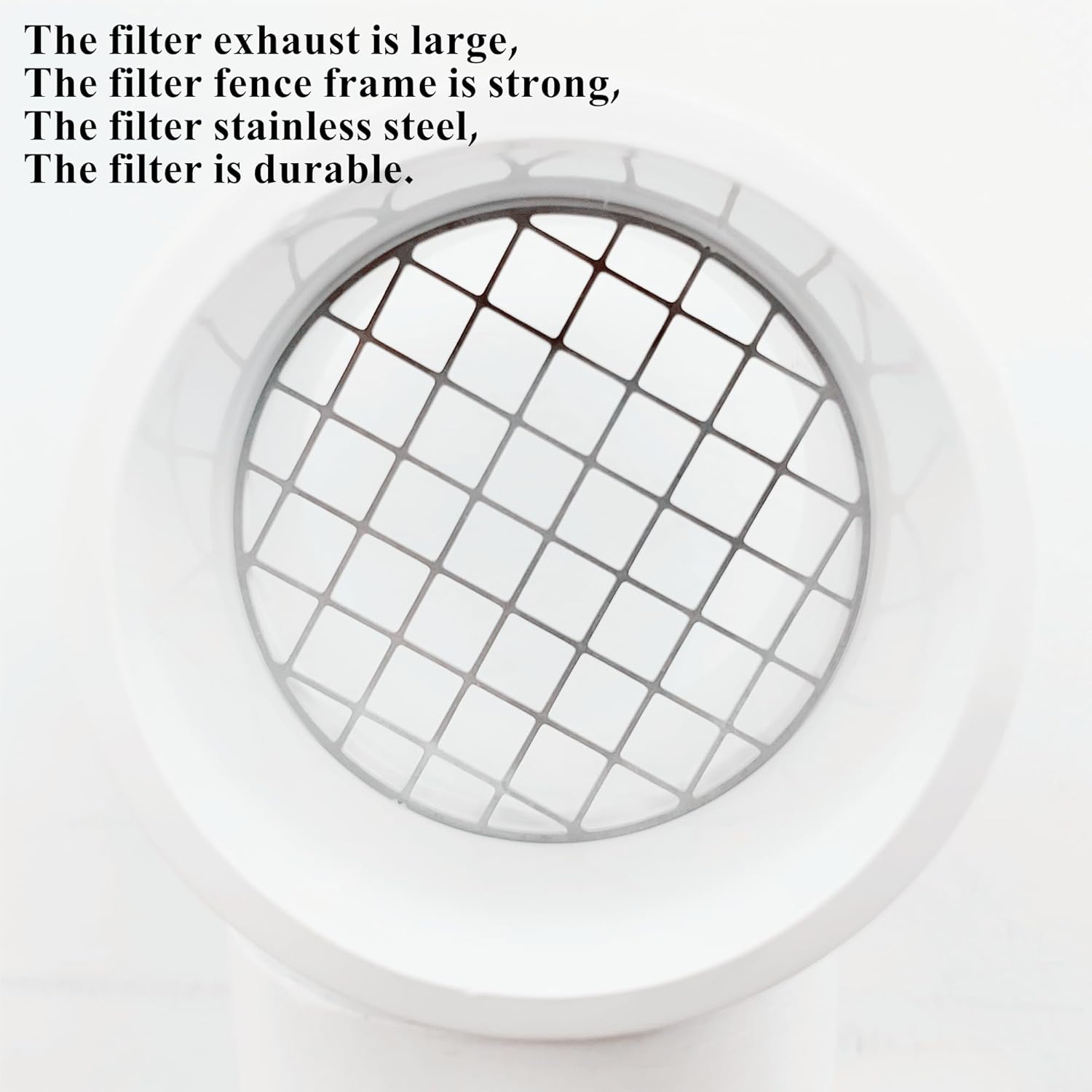

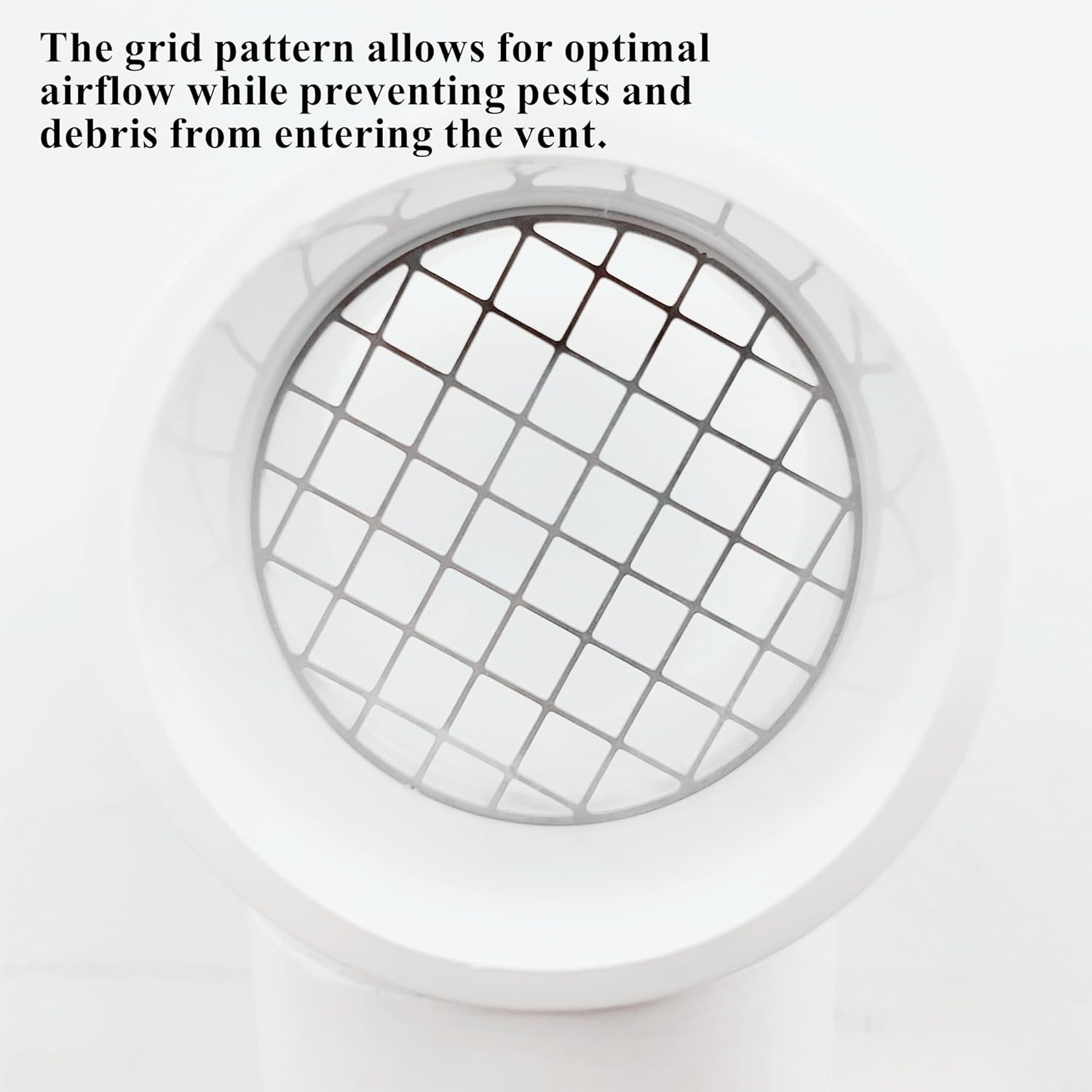

304 Stainless Steel Mesh
The fixed mesh helps deter birds, rodents, insects, leaves and larger debris. It is not a fine-particle, air-quality or water-treatment filter.

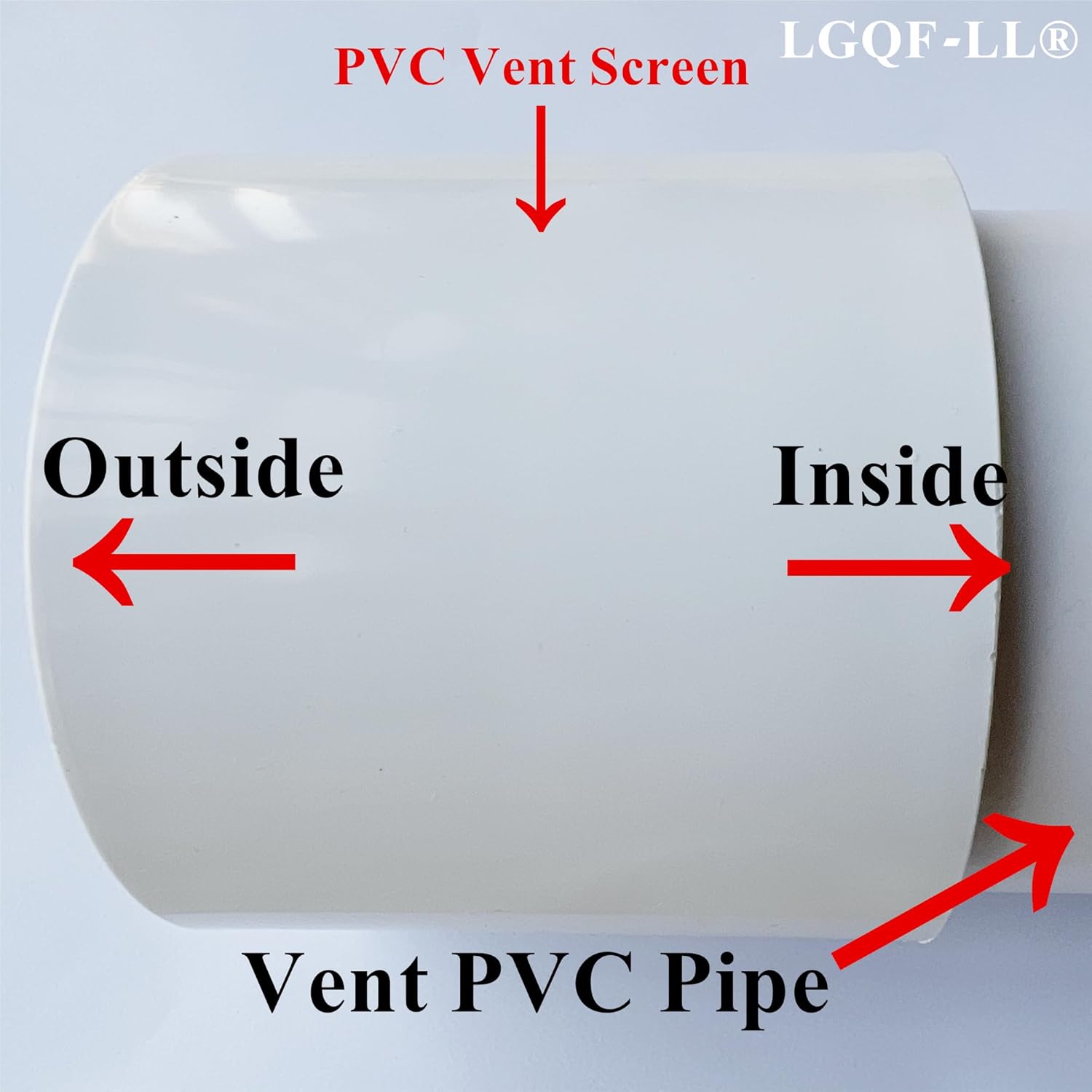

Outer-Fit Sleeve
The sleeve fits over compatible pipe measuring approximately 6.625 inches OD. It preserves the pipe’s inside opening instead of inserting a fitting into it.
Recessed Screen Position
The mesh sits inside the outer rim, which adds a physical edge around the screened face without sealing the termination.
Low-Point Moisture Openings
Small openings provide a path for incidental moisture when oriented at the lowest practical point. They do not guarantee drainage or freeze prevention.
Visible, Serviceable Face
The screen must remain accessible. Leaves, lint, frost or other material caught on the mesh can still require inspection and cleaning.
Know the Safety Boundary
A fixed screen can affect any air or water system. The connected system’s instructions determine whether this product is suitable.
- Use only where a straight, fixed screened termination is permitted.
- Do not use it as a sealed PVC cap, plug, coupling, adapter, reducer or check valve.
- Do not use it as a backdraft damper, backflow device, drain grate or pool safety drain cover.
- Do not install it on pressurized flow, suction piping or a discharge where retained debris could create an unsafe restriction.
- Do not use it on dryer lint exhaust, metal ductwork or flexible hose.
- It does not replace roof flashing, a pipe boot or waterproofing around a roof penetration.
- Do not assume the mesh creates full flow, zero restriction, no pressure buildup or freeze prevention.
- Confirm airflow or water-flow requirements, pressure condition, orientation, clearances and inspection access.
- Inspect the screen regularly and remove external accumulation according to the connected system’s maintenance instructions.
What Real Installations Teach Before Checkout
The first mistake is assuming “6 inch” means the pipe measures exactly four inches across the outside. Nominal 6-inch Schedule 40 PVC is approximately 6.625 inches OD, and this cap fits over that exterior dimension.
The second is choosing a straight screen where the opening really needs to face downward. A 0 Degree model preserves the existing direction. If direct weather exposure is the main problem and the system permits a bend, compare the 45 and 90 Degree options before ordering.
The third is installing a screen and forgetting it. A screen does not make debris disappear; it catches material at the opening. That is useful only when the face remains visible and can be inspected before buildup affects the connected system.
See documented homeowner PVC vent protection problems and solutions and learn why birds and outdoor debris enter exposed PVC terminations.
For People Who Protect the Opening Without Ignoring the System
A straight screen cap is a simple part, but correct use requires more than matching the word “6 inch.” The pipe material, actual outside diameter, flow condition, screen permission and maintenance access all matter.
Careful homeowners and installers identify the system, measure the pipe and think about what will collect on the screen after installation. LGQF-LL makes those decision points visible so customers can choose a practical protective part without treating every outdoor pipe as the same.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 0 Degree Outer-Fit PVC Vent Screen Cap |
| Nominal Pipe Size | 6 Inch |
| Compatible Pipe OD | Approximately 6.625 Inches; Measure Before Ordering |

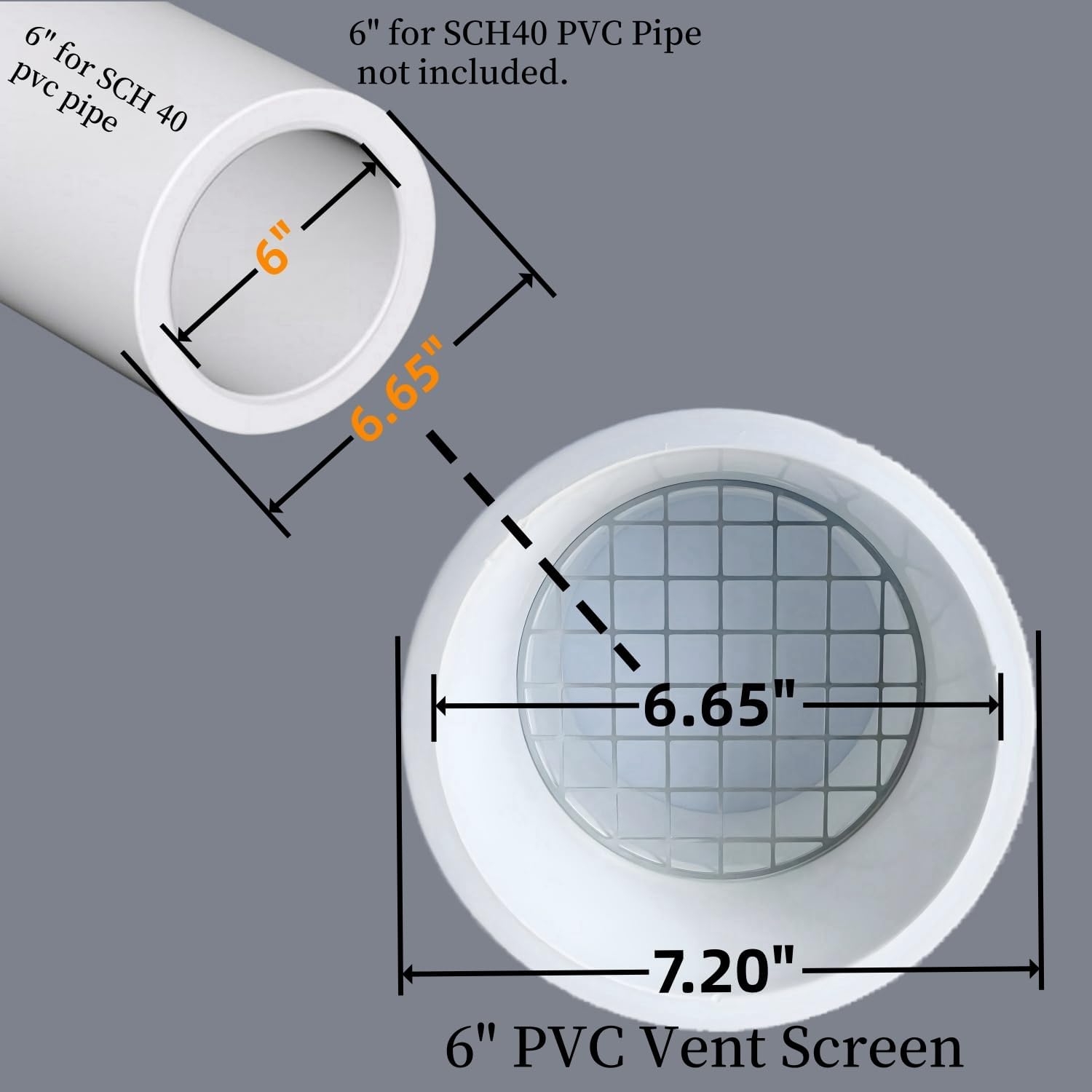

| Approximate Outer Rim | Approximately 7.20 Inches as Shown in Current Dimension Image |
| Product Fit Opening | Approximately 6.65 Inches as Shown in Current Dimension Image |
| Fit Type | Outer-Fit / Push-On Sleeve |
| Compatible Pipe | Compatible 6 Inch Schedule 40 PVC |
| Configuration | 0 Degree / Straight Screened Termination |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel Mesh |
| Primary Applications | Permitted Furnace and PVC Roof Terminations |
| Conditional Applications | Approved Non-Pressurized Outdoor Drain, Overflow, Backwash or Pool-Related Pipe Openings |
| Color | White |
| GTIN / UPC | 081904961437 |
| SKU / Amazon ASIN | B0DJJN31TM |
Compare the 6 Inch Vent Cap Shapes
The 0 Degree model keeps the opening straight. The 45 Degree models angle the outlet, while the 90 Degree models turn it farther. Choose the geometry permitted by the connected system and the actual exposure at the pipe location.
Learn Before You Install
Pipe direction, allowable screening, airflow or water flow, pressure, weather exposure and maintenance access must be evaluated as part of the complete system.
Frequently Asked Questions
What pipe does this 6 inch PVC vent screen cap fit?
It is designed to fit over compatible 6-inch Schedule 40 PVC pipe measuring approximately 6.625 inches outside diameter. The current dimension image shows the cap’s fit opening at approximately 6.65 inches. Measure the actual pipe before ordering.
Does the screen cap insert inside the pipe?
No. This is an outer-fit product. Its sleeve pushes over the outside of compatible PVC pipe.
What does 0 Degree mean?
It means the screen remains aligned with the existing pipe. The product does not add a 45, 90 or 180 degree change of direction.
Can it be used for furnace intake or exhaust?
Only when the appliance manufacturer permits a straight fixed screen on the compatible 6-inch PVC termination. Confirm airflow, allowable screening, equivalent vent length and clearances.
Can it be used on a PVC roof termination?
Only when the applicable system instructions, roof configuration and local requirements permit a straight screened PVC termination. It does not replace flashing or waterproofing around the roof penetration.
Can it be used on an outdoor drain pipe?
It may be suitable for an open, non-pressurized pipe termination when the drainage design permits a fixed screen and the face remains accessible. Do not use it where debris retained on the screen could cause a backup or unsafe restriction.
Can it be used on a pool backwash or overflow pipe?
Only when the pool-system instructions permit a fixed screen on that specific non-pressurized termination. It is not a pool drain safety cover, suction fitting or substitute for approved pool equipment.
Can it be installed on a sump-pump discharge pipe?
Do not install it on an active pressurized discharge unless the complete pump-system instructions explicitly permit the screen and account for retained debris. This product is not a sump pump, discharge kit, check valve or pump strainer.
Does the stainless steel screen create zero airflow or water-flow restriction?
No such guarantee should be made. Any screen—and any debris caught on it—can affect flow. Confirm system requirements and inspect the screen regularly.
Does the cap keep all rain and snow out?
No. A 0 Degree model keeps the opening aligned with the pipe and does not direct it downward. Weather exposure depends on the pipe orientation and installation location.
Do the small moisture openings prevent freezing?
No. They can provide an exit path for incidental moisture when oriented correctly, but they cannot guarantee prevention of frost or ice.
Is this a sealed PVC cap, pipe plug or coupling?
No. It is an open screened termination. It does not seal the pipe and is not intended to connect two pipes.
How should the cap be oriented?
Keep the screen visible and accessible. When the product and system instructions permit, rotate the sleeve so the small moisture openings sit at the lowest practical point.
How often should the screen be inspected?
Follow the connected system’s maintenance instructions and inspect more frequently during leaves, insects, frost or heavy outdoor-debris conditions. Remove accumulation before it affects the permitted flow path.
Should the cap be glued to the pipe?
Follow the appliance or system instructions and local requirements. Do not use adhesive or permanently modify the termination unless those instructions permit it.
Measure the Pipe. Confirm the Flow Condition. Then Choose the Straight Screen.
Confirm compatible PVC, measure approximately 6.625 inches OD and verify that a fixed 0 Degree screen is permitted and accessible for maintenance.
Price: $28.99 USD
Important Installation Notice
Always follow the connected appliance, roof, drainage, pool or pipe-system instructions and applicable local requirements. Confirm allowable screening, airflow or water-flow requirements, pressure condition, pipe material, orientation, weather exposure, clearances and inspection access before installation. Inspect the mesh periodically and remove exterior accumulation only when the connected system can be accessed safely under its maintenance instructions.
