Should You Put a Critter Cover on a Furnace Intake or Exhaust Pipe?

You walk around the side of the house and notice two PVC pipes sticking through the wall. One may be bringing combustion air into a high-efficiency furnace. The other may be carrying warm, moisture-rich exhaust outside.

Both can look surprisingly exposed.

If you've ever had a bird, mouse, leaves, or nesting material get into an outdoor pipe, the first reaction is understandable: shouldn't there be some kind of screen or critter cover over that opening?

The answer is not a simple yes or no. A furnace vent termination has to do two things at the same time: help keep unwanted material out while allowing the furnace to move air the way its manufacturer intended.

That is why choosing a furnace intake screen, exhaust screen, PVC vent cap, or critter cover should start with the furnace — not with the product.

A Real Homeowner Question That Does Not Have a One-Line Answer

A homeowner in the Chicago suburbs recently raised this exact question in a discussion on Reddit's r/hvacadvice community.

The homeowner had a new high-efficiency furnace with an open PVC termination. At a previous home, a bird had entered the HVAC system, so the concern was not theoretical. Looking at the new open pipe, the question was obvious: what stops another bird or a mouse from getting inside?

At the same time, the homeowner had seen warnings that screens on furnace exhausts can collect condensation and frost in cold weather. In a Chicago winter, that matters.

The discussion quickly showed why homeowners get conflicting answers. Some people warned about freezing and airflow restriction. Others described years of using screened terminations without trouble. One homeowner even described a field mouse entering an unscreened PVC pipe and creating a nest that prevented the furnace from operating.

The most useful point in the discussion was also the simplest: the furnace intake and furnace exhaust should not automatically be treated as the same pipe.

Furnace Intake and Exhaust Pipes Are Not the Same Thing

Many high-efficiency condensing furnaces use PVC venting because the exhaust temperature is low enough for approved plastic vent systems. Two PVC pipes may look nearly identical from outside the house, but they perform very different jobs.

Combustion-Air Intake

The intake brings outside air into the furnace for combustion. Depending on the location of the termination, an open intake can potentially admit leaves, nesting material, larger insects, birds, rodents, or wind-blown debris.

For this reason, some homeowners have a legitimate reason to consider a protective termination or screen — provided the furnace manufacturer allows it and airflow is not improperly restricted.

Furnace Exhaust

The exhaust deserves more caution. A condensing furnace produces water as part of normal operation, so the flue gas leaving the house contains significant moisture.

When warm, moisture-rich exhaust reaches a cold outdoor termination, condensation or frost can form. In very cold conditions, that moisture can freeze.

Adding a restrictive or poorly designed screen can create more surface area where frost, ice, or debris may accumulate.

That is why the question, "Can I put a screen on my furnace exhaust?" cannot responsibly be answered with: "Yes, because this product fits 2-inch PVC."

Physical fit is only the first part of the decision.

The Three Risks You Are Actually Balancing

Most homeowners searching for a furnace exhaust critter cover, furnace intake screen, PVC vent screen, or furnace vent cap are thinking about one main problem: keeping something from getting inside the pipe.

The furnace has another priority: moving air safely and reliably.

A good decision has to balance both.

1. Animal and Debris Intrusion

Open PVC terminations can provide a direct path into a vent system. It does not happen to every house, but when it does happen, the cause can be surprisingly difficult to diagnose.

A mouse does not need to damage the furnace itself to create trouble. Nesting material inside a vent can interfere with airflow. A bird, leaves, or accumulated debris can create a similar restriction.

If you have already dealt with an animal entering an exterior pipe once, an open termination looks very different afterward.

You become the homeowner who checks the side of the house before the first cold week of winter. That is not overreacting. It is understanding one of the small failure points in your own home.

2. Restricted Airflow

The opposite mistake is solving the animal problem by creating an airflow problem.

A furnace termination is not the place for improvised window screen, cloth, foam, very fine insect mesh, or whatever material happens to fit over the pipe.

The more restrictive the opening becomes, the more carefully the application needs to be evaluated.

A vent protector should never turn an air-moving system into a bottleneck.

3. Frost and Ice

This becomes especially important in cold-weather areas such as Chicago, Minneapolis, Detroit, Buffalo, and other regions where furnace systems may run for long periods during freezing temperatures.

Moist furnace exhaust meets freezing outdoor air. Depending on temperature, humidity, wind, furnace runtime, and termination geometry, frost can develop around the opening.

A screen adds additional surface area at that opening.

That does not mean every furnace screen will freeze. It also does not mean no furnace screen will freeze.

The more accurate conclusion is: cold-climate furnace exhaust terminations deserve more caution than a generic outdoor PVC pipe.

Should You Put a Screen on a Furnace Intake Pipe?

For many installations, the combustion-air intake is easier to evaluate than the exhaust because it is not carrying the same warm, moisture-rich flue gas.

If birds, rodents, leaves, or debris are a realistic concern, a properly selected protective termination may make sense — but only when compatible with the furnace manufacturer's requirements.

Before buying anything, check these five things:

• Is the pipe definitely the combustion-air intake?
• What termination configuration does the furnace manual show?
• Does the manufacturer allow a screen or protective termination?
• What is the actual PVC pipe size and outside diameter?
• Will the screen remain accessible for inspection and cleaning?

If you cannot confidently answer the first two questions, find the furnace model number and read the installation manual before ordering a cover.

That five-minute check matters more than whether one screen looks better than another.

Should You Put a Critter Cover on a Furnace Exhaust Pipe?

This question deserves a more cautious answer.

Do not add a furnace exhaust screen simply because an Amazon listing says it fits your PVC pipe.

First determine what termination your furnace manufacturer allows. Furnace manuals may specify particular vent fittings, termination layouts, distances, clearances, or cold-weather requirements.

If the manufacturer permits an appropriate protective termination, then screen design, opening size, orientation, drainage, accessibility, and climate become meaningful considerations.

If the manufacturer does not permit the screen or termination you are considering, do not use it.

Straight Screen, 90° Bend, or 180° Downward-Facing Termination?

Once you have confirmed that a protective termination is appropriate for your installation, the next question is geometry.

This is where products that look similar in a search result can solve very different problems.

Option 1: Straight Termination Screen

A straight termination screen keeps the pipe's existing direction essentially unchanged. This is a simple approach when the existing PVC termination is already positioned correctly and the homeowner mainly wants a protective barrier at the opening.

Products such as the Raven R1508B termination screen represent this type of design.

If the approved vent configuration is already correct and you simply need a straight protective screen, a design like this may be the logical choice.

There is nothing wrong with saying that.

The goal is not to force every homeowner into the same product. The goal is to help them choose the termination that actually matches their installation.

Option 2: 90° Downward-Facing Termination

A 90-degree termination changes the direction of the opening so that it faces downward rather than straight outward.

That geometry can help reduce direct exposure to falling debris and wind-driven precipitation while keeping the protective screen at the downward-facing outlet.

LGQF-LL offers integrated 90-degree PVC vent-cap designs for homeowners who specifically need this type of termination.

The advantage is not simply that the product contains more PVC. It is that the bend and screened outlet are already integrated into one component, rather than requiring the homeowner to assemble a separate elbow, coupling, and screen.

See the LGQF-LL 2-Inch 90° PVC Vent Cap.

Option 3: 180° Return-Bend Termination

A 180-degree or U-shaped return bend takes the outlet back downward and can provide an integrated screened termination for applications where that geometry is appropriate.

The LGQF-LL 2-Inch 180° PVC Vent Cap combines the return-bend body with an integrated 304 stainless-steel mesh screen.

For a homeowner who already knows that a downward-facing 180-degree termination is appropriate, the appeal is simplicity: the bend and protective screen are built into one piece.

But the most important specification is not the stainless steel, the bend angle, or even the price.

The most important question is whether that termination belongs on your particular system.

LGQF-LL vs. Raven R1508B: Which Type Makes More Sense?

This comparison becomes more useful when we stop asking, "Which brand is better?" and instead ask, "Which termination style matches the problem?"

Raven's straight-screen approach may make more sense when a homeowner already has the correct termination geometry and simply wants to protect the opening.

LGQF-LL becomes more relevant when the homeowner wants an integrated 90-degree or 180-degree downward-facing termination rather than building the same geometry from several separate PVC components.

That is the difference worth understanding.

Why LGQF-LL Uses 304 Stainless-Steel Mesh

Outdoor vent protection lives in a difficult environment. A termination can see rain, snow, temperature swings, condensation, wind-blown debris, and repeated seasonal heating and cooling cycles.

That is why LGQF-LL uses 304 stainless-steel mesh in its PVC vent protection products rather than treating the screen as an afterthought.

But material choice is only one part of the design.

A useful vent protector has to balance three things: protection, open airflow, and outdoor durability.

Make the barrier too open and it may not solve the intrusion problem. Make it too restrictive and you have forgotten what the vent is supposed to do.

This is why LGQF-LL is building around a narrow problem rather than trying to become another general hardware brand: protecting exposed PVC terminations while respecting the job the pipe still has to perform.

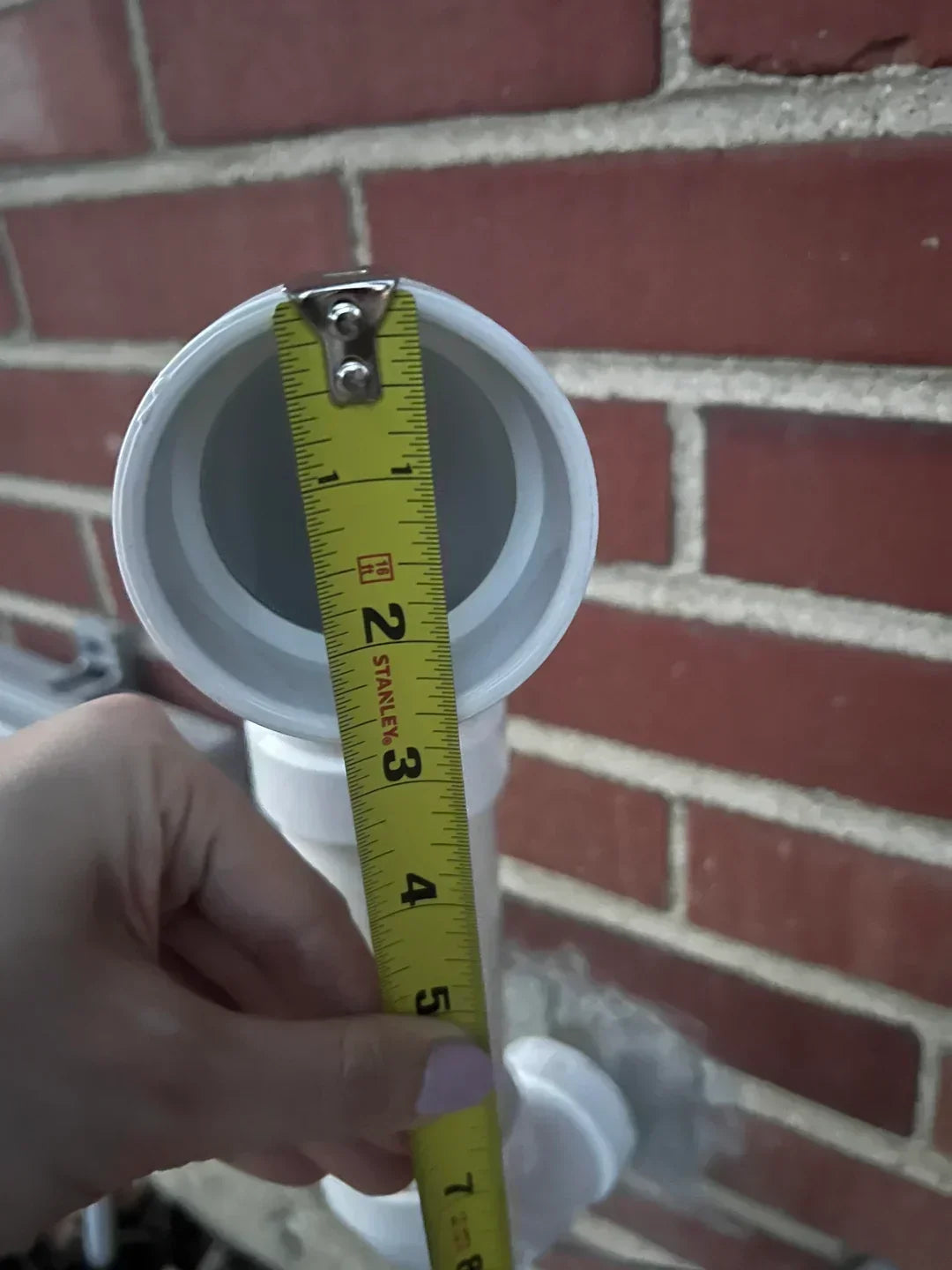

Measure the Pipe Before You Buy Anything

One of the easiest mistakes to prevent is also one of the most common: assuming a nominal 2-inch PVC pipe measures exactly 2 inches across the outside.

It does not.

For applicable LGQF-LL 2-inch designs, always compare the product's stated fitment with the actual outside diameter of your pipe before ordering.

• Nominal pipe size: 2 inch
• Typical actual outside diameter: approximately 2.375 inches
• Relevant LGQF-LL fit range: approximately 2.3–2.375 inches where specified
• Construction: PVC body with 304 stainless-steel mesh

Do not assume a product designed for 2-inch PVC will automatically fit a 2-inch metal duct, flexible hose, thin-wall tubing, or another piping standard.

Thirty seconds with a tape measure can save a return and a frustrating Saturday afternoon.

What You Are Really Buying

Most homeowners are not excited about buying a vent cap.

It is a small object attached to a pipe that many people never noticed until something went wrong.

That is also why it matters.

A good home is not maintained only by replacing expensive equipment. It is maintained by noticing small failure points before they become expensive ones.

When you choose an integrated PVC vent termination with a 304 stainless-steel screen, the technical features are easy to describe. The screen helps block unwanted intrusion. The bend changes the direction of the opening. The PVC body fits a particular pipe size.

But the homeowner does not really buy stainless steel or a bend angle.

The homeowner buys the feeling of walking past that side of the house next winter and knowing the exposed opening is no longer sitting there exactly as it was before.

If you have already found nesting material, leaves, or an animal inside a pipe once, you understand that feeling immediately.

You are not the homeowner who waits until something stops working before looking outside.

You are the homeowner who notices a small vulnerability, checks the manual, measures the pipe, and fixes the right problem before it becomes a larger one.

That is the homeowner LGQF-LL is designing for.

A 60-Second Furnace Vent Check Before You Buy

1. Identify the pipe.
   Determine whether it is a combustion-air intake, furnace exhaust, drain, or another PVC termination.
2. Find the furnace model number.
   Do not rely only on what the pipe looks like.
3. Read the manufacturer's venting instructions.
   Look for approved termination diagrams, fittings, screens, clearances, and cold-weather requirements.
4. Measure the pipe.
   For standard nominal 2-inch Schedule 40 PVC, expect approximately 2.375 inches OD.
5. Consider your climate.
   A furnace termination in Georgia does not experience the same winter conditions as one outside Chicago.
6. Define the actual problem.
   Are you trying to stop birds, mice, leaves, direct precipitation, or another known issue?
7. Keep the termination inspectable.
   Any outdoor protective screen should remain easy to check and clean.

Related LGQF-LL Guides

If you are dealing with a specific furnace or PVC vent problem, these related guides go deeper:

• Furnace Intake Pipe Freezing: Causes, Fixes & Prevention
• What to Do When a Bird Enters a PVC Vent Pipe
• LGQF-LL 2-Inch 90° PVC Vent Cap
• LGQF-LL 2-Inch 180° PVC Vent Cap

External References

• Reddit: Critter Cover for HVAC Furnace Exhaust Pipe and/or Add a 90 Degree Bend
• Raven R1508B Straight Termination Screen
• LGQF-LL 2-Inch 180° PVC Termination on Amazon

Important: Your furnace manufacturer's installation instructions should take priority over general internet advice, Reddit comments, this article, or an aftermarket product listing.

Furnace Intake & Exhaust Critter Cover FAQ

Can I put a critter cover on a furnace exhaust pipe?

Not automatically. A high-efficiency condensing furnace exhaust carries moisture, and a restrictive screen can potentially collect frost, ice, or debris in cold conditions. Check the furnace manufacturer's installation instructions before adding any screen or aftermarket termination.

Can I put a screen on a furnace intake pipe?

A protective screen may be appropriate for some combustion-air intake installations when permitted by the furnace manufacturer. It can help keep birds, rodents, nesting material, and larger debris out of the pipe while still requiring adequate airflow.

Can a furnace exhaust screen freeze?

Yes, under some conditions it can. Moist exhaust, freezing outdoor temperatures, wind, humidity, furnace runtime, and screen geometry can all affect frost or ice accumulation around a termination.

Should furnace intake and exhaust pipes both have screens?

Not necessarily. The intake and exhaust perform different jobs and may have different termination requirements. Never assume both pipes should receive the same screen or cap.

Is a 90-degree furnace vent termination better than a straight screen?

Not universally. A 90-degree downward-facing termination can reduce direct exposure to falling debris and precipitation, but the correct configuration is the one permitted by the furnace manufacturer and appropriate for the installation.

What is the difference between a straight screen and a 180-degree PVC vent cap?

A straight screen keeps the existing direction of the pipe. A 180-degree return-bend termination turns the outlet downward and can combine the bend and screen into one integrated component.

What size vent cap fits 2-inch Schedule 40 PVC?

Standard nominal 2-inch Schedule 40 PVC has an actual outside diameter of approximately 2.375 inches. Always compare your pipe measurement with the product's stated fitment before ordering.

Should I use fine insect mesh on a furnace vent?

Do not improvise with very fine mesh unless the furnace manufacturer's instructions specifically allow the configuration. Fine openings can increase restriction and provide more surface area for debris, frost, or ice to collect.

Which is better: LGQF-LL or Raven R1508B?

Neither is automatically better for every installation. Raven's R1508B is a straight termination-screen design. LGQF-LL offers integrated angled PVC designs, including 90-degree and 180-degree configurations, for users who specifically need a downward-facing termination. Choose based on manufacturer requirements, pipe dimensions, orientation, climate, and the problem you are trying to solve.

How often should I inspect a furnace vent screen?

Inspect exterior furnace terminations periodically and especially before heating season. During snow, freezing weather, or heavy debris conditions, visually confirm that the termination remains clear and unobstructed.

A vent cap is a small part of a house. Most of the time, nobody thinks about it.

But good home maintenance is often exactly that: noticing the small things that can quietly become large problems.

Identify the pipe. Read the manual. Measure it. Protect it only when protection makes sense.

That is the standard LGQF-LL wants to build around.

```
