Need to Angle a 4 Inch PVC Opening in a Tight Space?
An open outdoor PVC pipe can give birds, rodents, insects, leaves and larger debris a direct path into the system. A straight screen keeps the original direction, but some installations need a compact angle without the extra clearance required by a wider long-sweep curve.

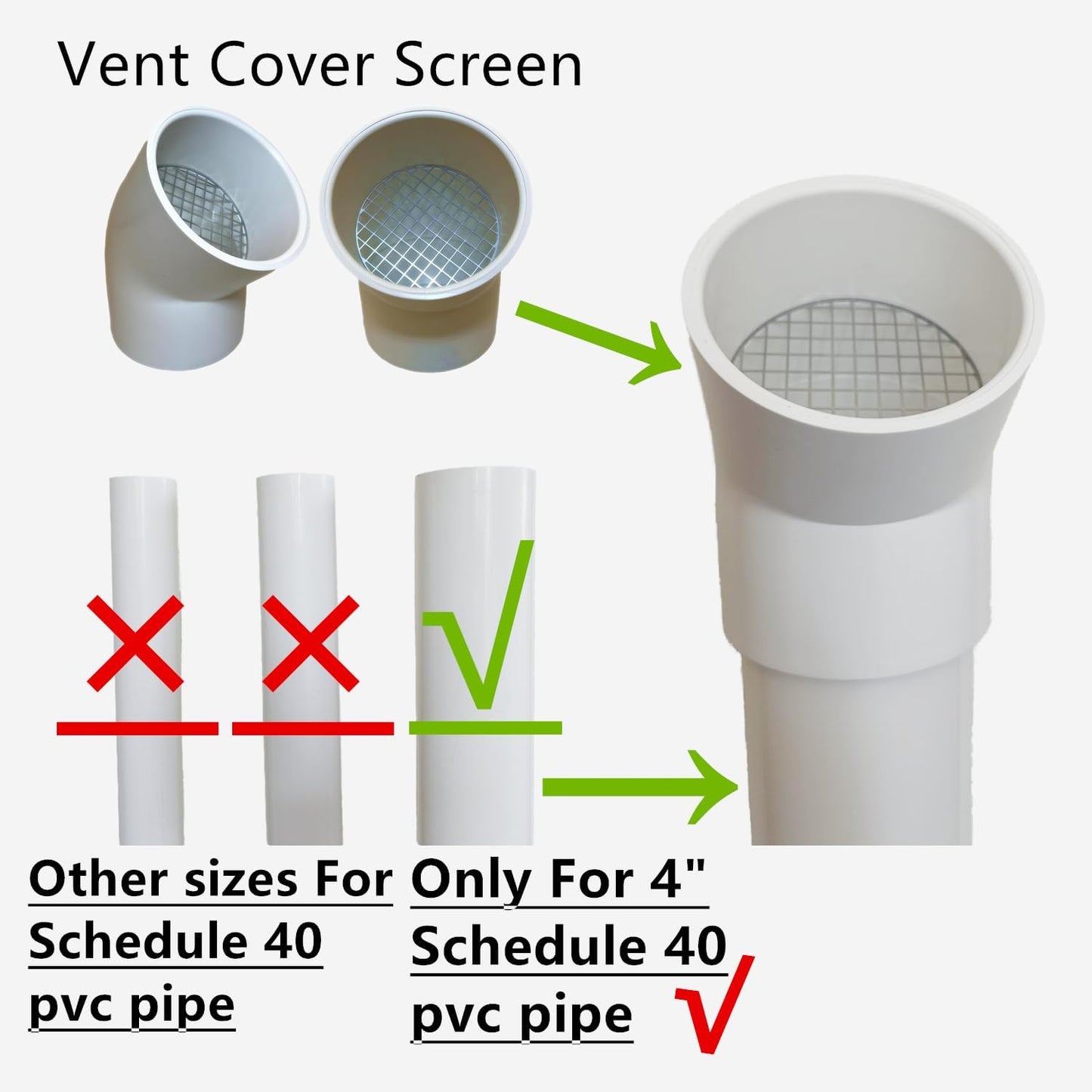

The LGQF-LL 4 Inch 45 Degree Short Sweep PVC Vent Cap combines a compact angled body, an outer-fit lower socket and a fixed 304 stainless steel screen. It changes the outlet direction by 45 degrees while keeping the overall footprint smaller than the separate Long Sweep model.
- Compact 45 Degree Short Sweep configuration
- Outer-fit lower socket for compatible pipe measuring approximately 4.5 inches OD

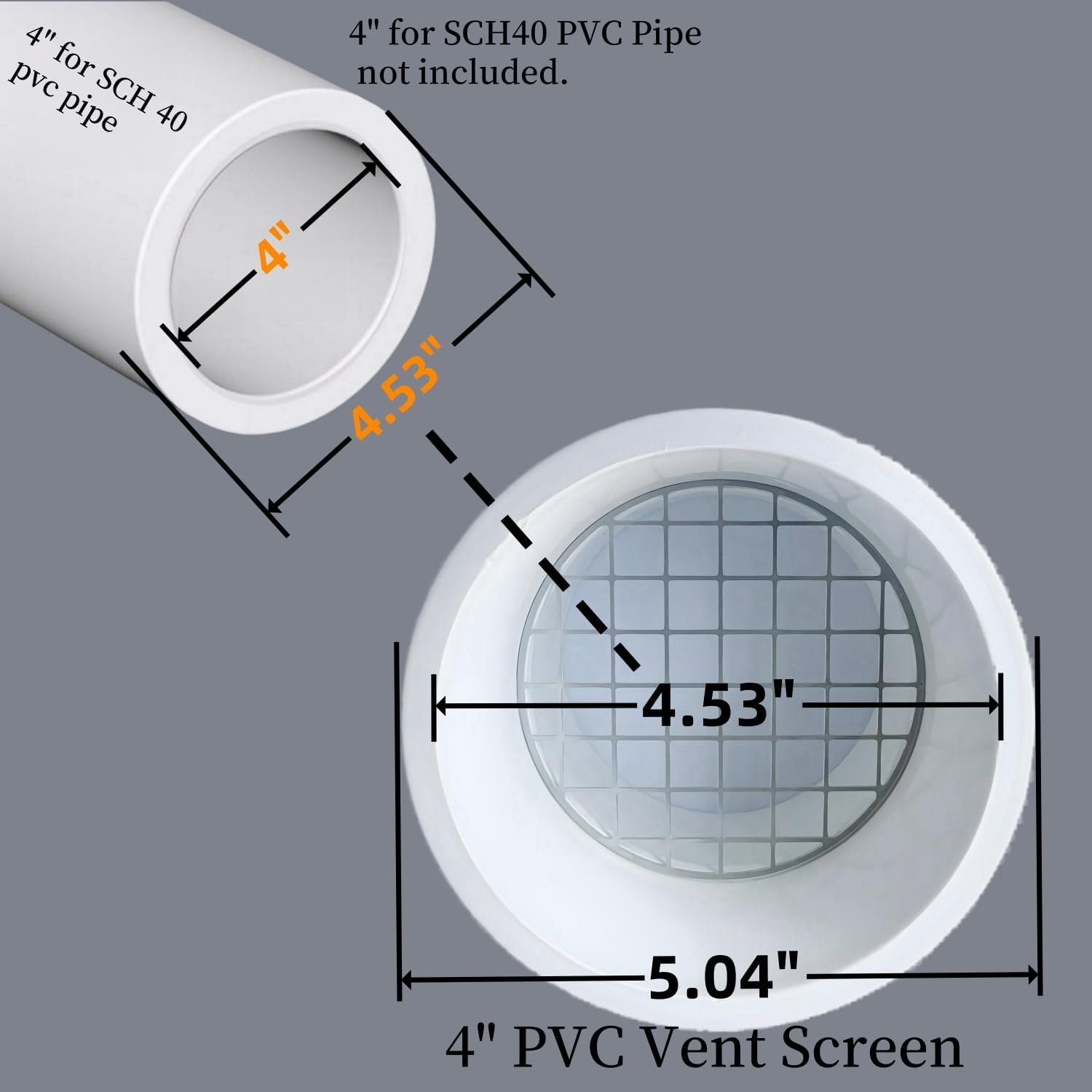

- Current dimension image shows a product fit opening of approximately 4.53 inches
- Designed around compatible 4-inch Schedule 40 PVC dimensions
- Fixed 304 stainless steel screen helps deter pests and larger outdoor debris
- Applicable only where the connected air or non-pressurized water system permits screening
See the Compact 45 Degree Structure
This is the Short Sweep model. Its curve is tighter and more compact than the separate 45 Degree Long Sweep product. “Short sweep” describes the geometry and required space; it does not promise better flow, lower pressure or improved system efficiency.
Confirm Diameter, Outlet Direction and Clearance
1. Identify the Pipe

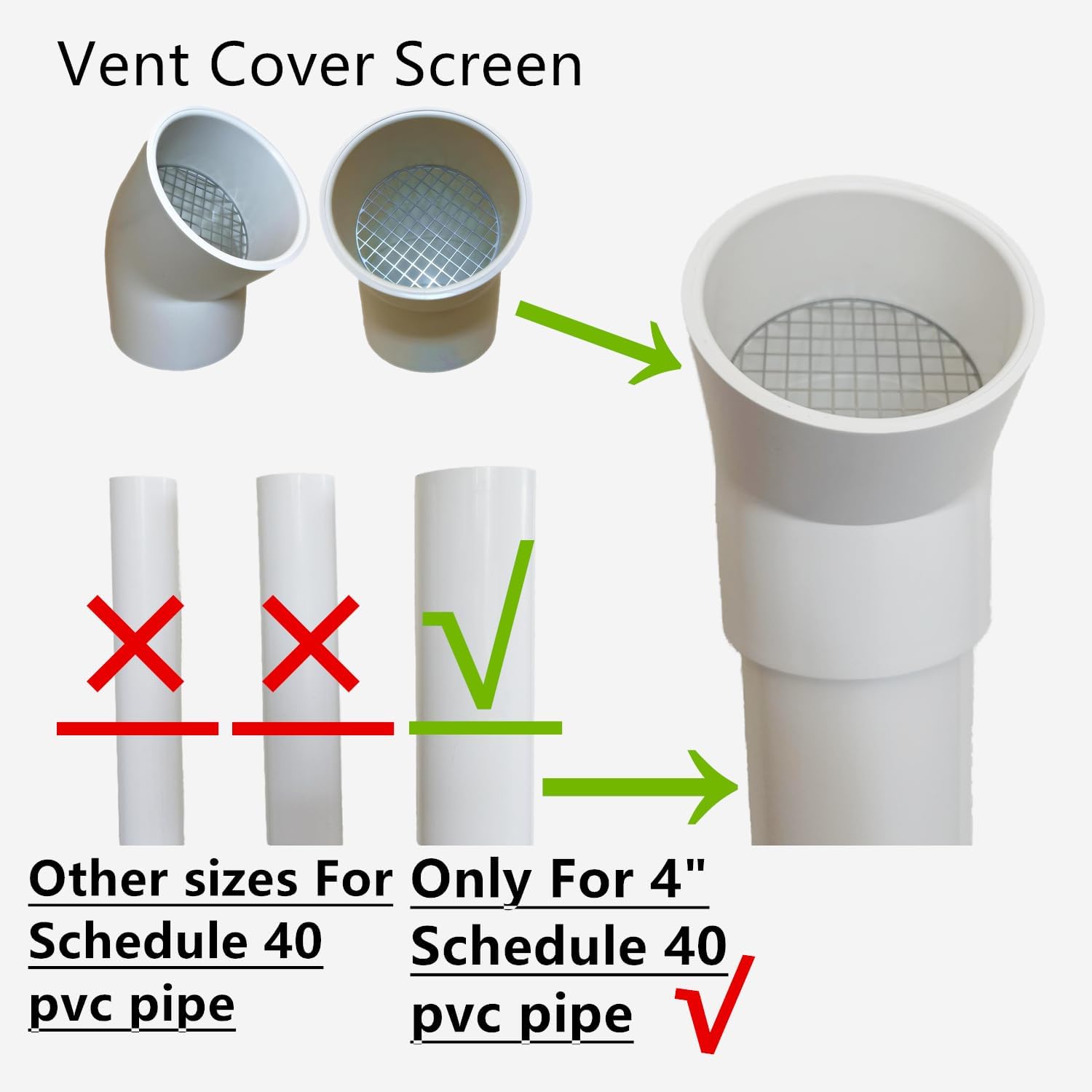

Confirm compatible 4-inch Schedule 40 PVC—not metal duct, flexible hose or an incompatible thin-wall pipe.
2. Measure the Outside
Measure straight across the pipe exterior. The expected pipe OD is approximately 4.5 inches.
3. Check the Angle
Confirm the 45 degree outlet can face the permitted direction and remain clear of walls, roofing, nearby openings and accumulated debris.
“4 inch” is the nominal pipe size. Select this outer-fit cap by the actual outside diameter—not by the pipe’s inside opening.
Match the 45 Degree Outlet to the Actual System
Permitted Furnace or PVC Roof Termination
Use only when the furnace, appliance or roof-vent system permits this 45 degree screened PVC configuration. Confirm airflow, screening permission, equivalent vent length, weather exposure, orientation and required clearances.
Approved Drain or Pool Pipe Opening
It may be used on an open, non-pressurized outdoor drain, overflow, backwash or pool-related pipe termination only when the system permits a fixed screen and retained debris can be inspected and removed.
Pump-related use requires extra care: this is not a sump pump, pump fitting, strainer basket or discharge kit. Do not place it where a fixed screen could obstruct an active pressurized discharge, emergency overflow or suction line. Use only on a separate open termination whose system instructions permit screening.
What Each Part Is Designed to Do

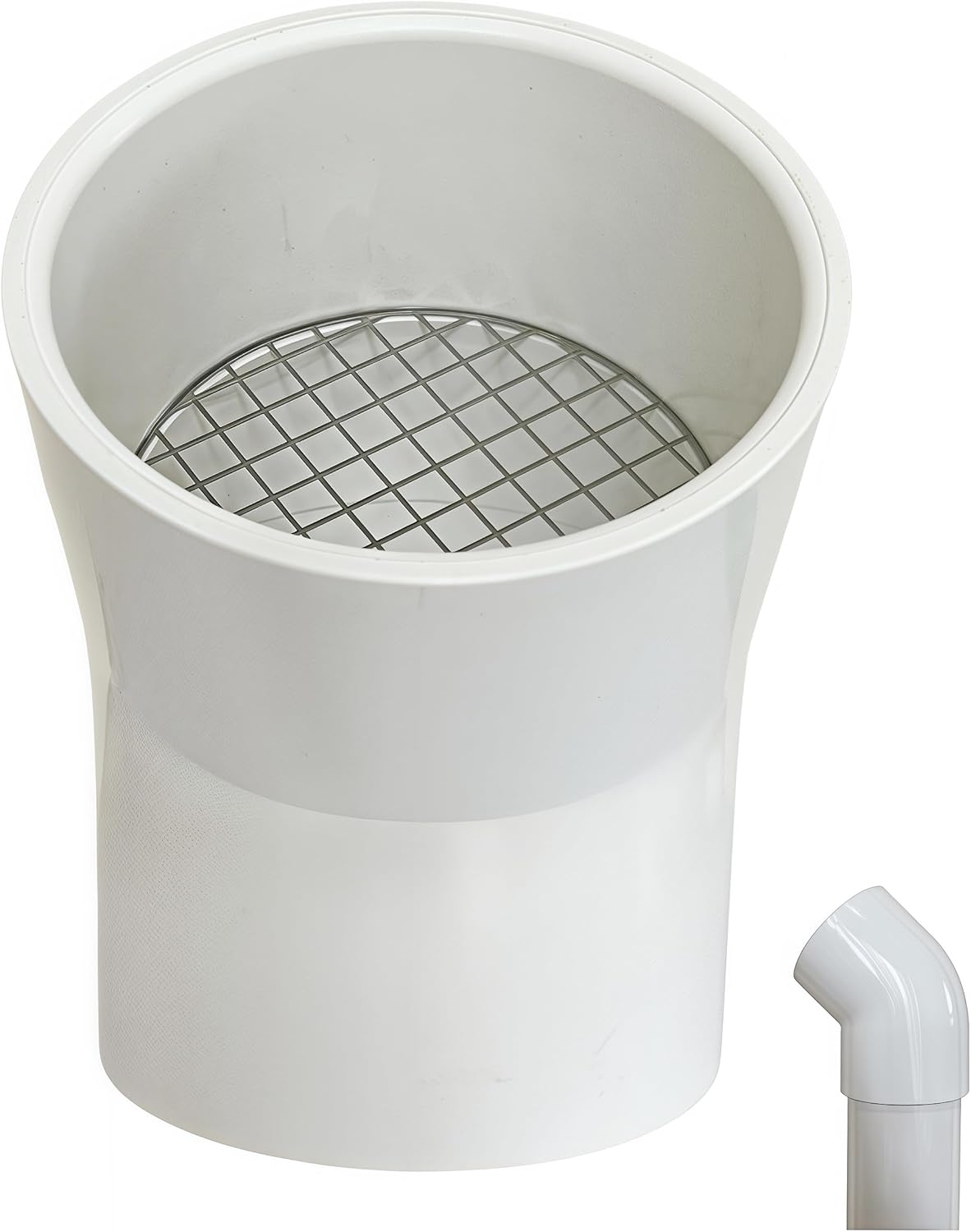

45 Degree Short-Sweep Body
The compact bend changes the outlet direction by 45 degrees while taking less space than the Long Sweep version.
Angled Screened Outlet
The outlet can reduce direct exposure when oriented downward, but it cannot guarantee rain, snow or backflow prevention under every condition.
304 Stainless Steel Screen
The fixed mesh helps deter birds, rodents, insects, leaves and larger debris. It is not an air-quality or water-treatment filter.
Outer-Fit Lower Socket
The lower socket fits over compatible pipe measuring approximately 4.5 inches OD. Only this end connects to the existing pipe.
Incidental-Moisture Path
Small low-point openings can provide an exit for incidental moisture when oriented correctly. They do not guarantee drainage or freeze prevention.
Visible, Serviceable Screen
The screened outlet remains open and accessible. Leaves, frost or debris caught on the mesh can still require inspection and cleaning.
Know the Safety Boundary
A fixed screen and compact bend can affect an air or water system. The connected system’s instructions determine whether this product is suitable.
- Use only where a 45 degree fixed screened PVC termination is permitted.
- Do not connect another pipe, cover or valve to the screened outlet.
- Do not use it as a sealed cap, plug, coupling, adapter, reducer, check valve or backflow device.
- Do not install it on pressurized flow, suction piping or a discharge where retained debris could create an unsafe restriction.
- Do not use it on dryer lint exhaust, metal ductwork or flexible hose.
- It does not replace roof flashing, a pipe boot or waterproofing around a roof penetration.
- Do not assume the compact bend or screen creates smooth/full flow, zero restriction, no pressure buildup or freeze prevention.
- Confirm airflow or water-flow requirements, pressure condition, bend allowance, orientation and inspection access.
- Inspect the screen regularly and remove external accumulation according to the connected system’s maintenance instructions.
What Real Installations Teach Before Checkout
The first mistake is ordering from the “4 inch” label without measuring the outside. Nominal 4-inch Schedule 40 PVC is approximately 4.5 inches OD, and this cap fits over that exterior dimension.
The second is treating Short Sweep and Long Sweep as performance grades. They are different shapes. Short Sweep takes less room; Long Sweep uses a wider curve. The correct choice depends on system permission and available clearance—not the word “better.”
The third is aiming the 45 degree outlet without checking where debris or water will go. Confirm the final direction, maintain access to the screen and make sure nearby walls, roofing or openings do not create a new problem.
See documented homeowner PVC vent protection problems and solutions and learn why birds and outdoor debris enter exposed PVC terminations.
For People Who Choose the Shape That Fits the Installation
A 45 degree cap is a small part, but it changes the final direction of the pipe opening. Correct selection means checking more than size: material, actual OD, flow condition, available space and inspection access all matter.
Careful homeowners and installers compare the Short and Long Sweep shapes, measure the pipe and confirm the connected system’s requirements. LGQF-LL makes those differences visible so customers can solve the actual opening—not guess from a product photo.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 45 Degree Short Sweep PVC Vent Cap |
| Nominal Pipe Size | 4 Inch |
| Compatible Pipe OD | Approximately 4.5 Inches; Measure Before Ordering |
| Product Fit Opening | Approximately 4.53 Inches as Shown in Current Dimension Image |
| Fit Type | Outer-Fit / Push-On Lower Socket |
| Compatible Pipe | Compatible 4 Inch Schedule 40 PVC |
| Configuration | 45 Degree Short Sweep |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel Mesh |
| Primary Applications | Permitted Furnace and PVC Roof Terminations |
| Conditional Applications | Approved Non-Pressurized Outdoor Drain, Overflow, Backwash or Pool-Related Pipe Openings |
| Color | White |
| GTIN / UPC | 081904961468 |
| SKU / Amazon ASIN | B0DLVLXS82 |
Compare the 4 Inch Vent Cap Shapes
This Short Sweep model is the compact 45 degree option. The 45 Degree Long Sweep uses a wider curve, the 0 Degree model remains straight and the 90 Degree models turn the outlet farther.
Learn Before You Install
Pipe direction, allowable screening, bend allowance, airflow or water flow, pressure, weather exposure and maintenance access must be evaluated as part of the complete system.
Frequently Asked Questions
What pipe does this 4 inch 45 degree vent cap fit?
It is designed to fit over compatible 4-inch Schedule 40 PVC pipe measuring approximately 4.5 inches outside diameter. The current dimension image shows the product fit opening at approximately 4.53 inches. Measure the actual pipe before ordering.
Does the vent cap insert inside the pipe?
No. The lower socket is an outer-fit connection that pushes over the outside of compatible PVC pipe.
What does 45 Degree Short Sweep mean?
It describes a compact 45 degree bend with a tighter curve than the separate Long Sweep model. It does not indicate superior or inferior airflow performance.
What is the difference between Short Sweep and Long Sweep?
Short Sweep uses a tighter curve and needs less space. Long Sweep uses a wider radius and requires more clearance. The connected system’s instructions determine which bend is permitted.
Can another PVC pipe be attached to the screened end?
No. Only the lower outer-fit socket connects to the existing pipe. The angled screened end is the final open termination outlet.
Can it be used for furnace intake or exhaust?
Only when the appliance manufacturer permits this 45 degree screened configuration on the compatible PVC termination. Confirm screening, airflow, allowable vent length and clearances.
Can it be used on a PVC roof termination?
Only when the applicable system instructions, roof configuration and local requirements permit this 45 degree screened PVC termination. It does not replace flashing or waterproofing around the roof penetration.
Can it be used on an outdoor drain pipe?
It may be suitable for an open, non-pressurized pipe termination when the design permits a fixed screen and the face remains accessible. Do not use it where retained debris could cause a backup or unsafe restriction.
Can it be used on a pool backwash or overflow pipe?
Only when the pool-system instructions permit a fixed screen on that non-pressurized termination. It is not a pool drain safety cover, suction fitting or substitute for approved pool equipment.
Can it be installed on a sump-pump discharge pipe?
Do not install it on an active pressurized discharge unless the complete pump-system instructions explicitly permit the screen and account for retained debris. This product is not a sump pump, discharge kit or check valve.
Does the screen and compact bend create zero restriction?
No such guarantee should be made. Any screen, bend and accumulated debris can affect flow. Confirm the connected system’s requirements and inspect the screen regularly.
Does the 45 degree outlet prevent rain or backflow?
No. When permitted and oriented downward it can reduce direct exposure compared with an uncovered opening, but it is not a backflow-prevention device and cannot exclude every weather condition.
Do the moisture openings prevent freezing?
No. They can provide an exit path for incidental moisture when oriented correctly, but they cannot guarantee prevention of frost or ice.
How should the outlet be oriented?
Follow the connected system’s instructions. For a permitted sidewall application, the outlet may angle downward. For a vertical pipe, the outlet remains angled rather than fully downward. Keep the screen visible and accessible.
Should the cap be glued to the pipe?
Follow the appliance or system instructions and local requirements. Do not use adhesive or permanently modify the termination unless those instructions permit it.
Measure the Pipe. Check the Direction. Then Choose the Short Sweep.
Confirm compatible PVC, measure approximately 4.5 inches OD, verify that a compact 45 degree screened termination is permitted and keep the outlet accessible.
Price: $20.99 USD
Important Installation Notice
Always follow the connected appliance, roof, drainage, pool or pipe-system instructions and applicable local requirements. Confirm allowable bend configuration, screening, airflow or water-flow requirements, pressure condition, pipe material, outlet orientation, weather exposure, clearances and inspection access before installation. Inspect the mesh periodically and remove exterior accumulation only when the connected system can be accessed safely under its maintenance instructions.
