Furnace PVC Vent Blocked by Rocks? Check the Simple Things Before Replacing Parts
Fall is when many American homeowners start thinking about the furnace again.
The air filter gets replaced. The thermostat gets switched back to heat. Smoke and carbon monoxide alarms get tested. Maybe the furnace gets its annual inspection before the first truly cold night arrives.
There is one part of the heating system that is much easier to forget:
the PVC pipes terminating outside the house.
They may look like ordinary white plastic pipes.
On a high-efficiency condensing gas furnace, however, those pipes can be critical parts of the combustion-air and venting system.
And sometimes the problem inside one of them is surprisingly simple.
A Real HVAC Call That Started With the Wrong Parts
A discussion in Reddit's HVAC community caught our attention because it describes exactly the kind of problem homeowners rarely think about.
According to the technician who posted the case, he was the third person called to the furnace.
The first technician had changed pressure switches.
The second had changed the inducer motor.

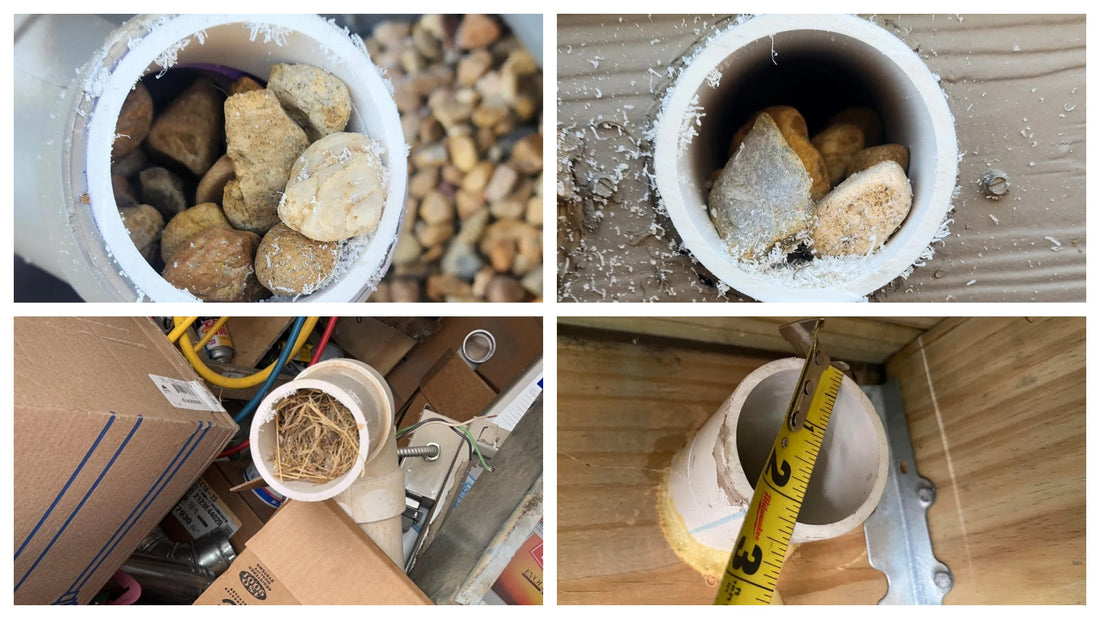

The third technician found the actual problem in less than five minutes:
the vent pipe contained rocks.
The discussion gets even more interesting.
One commenter said he had pulled roughly 100 rocks from a vent. Another homeowner described children putting golf balls, rocks and toy cars into an exhaust pipe. Other HVAC professionals shared similarly strange examples of foreign objects reaching exposed furnace vent terminations.
Read the original Reddit HVAC discussion →
It sounds almost funny until it happens to your furnace.
Then it becomes a no-heat call.
What Does the PVC Furnace Exhaust Pipe Actually Do?
This is the first thing worth understanding.
A high-efficiency condensing gas furnace does not use its PVC vent pipe the same way a plumbing roof vent works.
The furnace venting system is part of the appliance's combustion process.
Depending on the furnace and installation, one PVC pipe may carry combustion products outdoors while another supplies combustion air from outdoors.
The exhaust side has an especially important job:
it provides the venting path designed for the furnace to safely discharge combustion products outdoors.
That is why an obstruction is not simply a cosmetic problem.
The inducer, pressure switches, condensate system, heat exchanger, intake and exhaust piping all operate as parts of a system.
If airflow through that system is not what the furnace expects, the furnace's safety controls may prevent normal operation.
This is also why replacing a pressure switch without investigating why the expected pressure condition is not being achieved can miss the real problem.
The Reddit story is a memorable example of that principle.
Intake Pipe vs. Exhaust Pipe: They Are Not Necessarily Doing the Same Job
Homeowners sometimes call both white PVC pipes “vents.”
But on a two-pipe direct-vent furnace installation, they normally have different jobs.
One provides combustion air.
The other carries combustion products outdoors.
That distinction matters when inspecting, protecting or changing a termination.
Never assume that because a cap physically fits the PVC pipe, it is appropriate for that furnace.
The furnace manufacturer's installation instructions should determine the approved pipe size, vent length, fittings, clearances and termination configuration.
That comes before any product decision.
What Can Get Into an Exposed Furnace PVC Vent?
The Reddit thread highlights something technical manuals do not always make memorable:
Sometimes the obstruction isn't caused by the furnace. It comes from outside.
Depending on the termination location and surrounding environment, an exposed opening may encounter:
- Leaves
- Twigs
- Seeds and seed pods
- Nesting material
- Windblown debris
- Snow and ice
- Mice and other small rodents
- Squirrels and other curious animals
- Foreign objects placed into a low vent opening
And if the pipe terminates low enough for a young child to reach it?
A PVC pipe can look remarkably similar to a place to drop a pebble.
One pebble may not create a service call.
Dozens of them are a different story.
Why Fall Is the Right Time to Look
Fall is one of the best times for American homeowners to prepare the house and heating system for winter.
The goal is not to turn yourself into an HVAC technician.
It is to discover small problems before the heating system has to run every day.
Typical fall furnace preparation includes:
- Inspecting or replacing the HVAC air filter
- Running the furnace before the first truly cold night
- Listening for unusual noises or startup behavior
- Testing smoke and carbon monoxide alarms according to their instructions
- Having the furnace professionally inspected when appropriate
- Visually checking accessible outdoor intake and exhaust terminations
Carrier's furnace inspection guidance also emphasizes checking important furnace components and the venting system as part of a professional furnace inspection.
Read Carrier's Furnace Inspection Guide →
Look at the Opening Before Looking for an Expensive Part
From a safe location outside, look at the furnace intake and exhaust terminations.
Check for obvious conditions such as:
- Accumulated leaves
- Visible nesting material
- Foreign objects near the opening
- Physical damage
- Snow or ice accumulation
- Signs of animal activity
- Anything that looks different from the original installation
If you see a problem, don't automatically stick tools into the pipe.
And don't change the vent configuration simply because another furnace down the street looks different.
If the furnace is locking out, showing an error code, or repeatedly failing to start, the problem should be diagnosed rather than guessed at.
A blocked vent is one possible cause. It is not the explanation for every pressure-switch fault or no-heat call.
Is Your “2-Inch” PVC Furnace Vent Really 2 Inches Across?
This is one of the easiest mistakes to make when shopping for a PVC vent termination.
PVC pipe uses nominal sizing.
That means the name of the pipe is not the same as its actual outside diameter.
For common Schedule 40 PVC:
- 2-inch nominal PVC = 2.375-inch outside diameter (2-3/8")
- 3-inch nominal PVC = 3.500-inch outside diameter
So if you place a ruler or caliper across the outside of your furnace PVC pipe and measure about 2-3/8 inches, you may be looking at standard nominal 2-inch PVC.
If the outside measures approximately 3.5 inches, you may be looking at nominal 3-inch PVC.
View Charlotte Pipe Schedule 40 PVC dimensional data →
Measure first. Don't order by appearance.
Should You Put a Screen or Vent Cap on a Furnace PVC Pipe?
This is where LGQF-LL takes a deliberately cautious position.
An exposed opening can obviously be vulnerable to foreign objects.
The Reddit case makes that easy to understand.
But that does not mean every furnace should have a mesh screen added to its intake or exhaust.
A screen changes the termination.
Depending on the furnace design, mesh opening and climate, a screen can affect available open area or become a place where frost, ice or debris accumulates.
So the correct order is:
- Identify the furnace model.
- Identify the intake and exhaust pipes.
- Read the manufacturer's venting and termination instructions.
- Measure the actual PVC outside diameter.
- Confirm that the proposed termination configuration is permitted.
- Only then choose protection.
If the manufacturer prohibits screens, do not install one.
If the manufacturer specifies a particular termination, follow that requirement.
If an appropriate screened termination is permitted, protecting an exposed opening may make sense.
That's not a disclaimer hidden at the bottom of this page.
It's part of choosing the right product.
0°, 45°, or 90° — Why the Direction Matters
LGQF-LL offers different PVC vent protection configurations because outdoor furnace pipes do not all terminate in the same direction, location or environment.
The angle is not simply a styling choice.
It changes the direction of the outlet and how directly the opening is exposed to falling debris and other outdoor conditions.
| Configuration | Outlet Direction | Protection Characteristic | When to Consider It |
|---|---|---|---|
| 0° Straight | Continues in the existing pipe direction | Adds a physical screened barrier without introducing a directional bend | Where the furnace manufacturer permits a straight screened termination |
| 45° Angled | Angled downward | Changes the outlet direction while providing a screened barrier | Where an angled termination is compatible with the manufacturer's instructions |
| 90° Elbow | Downward-facing | Reduces direct access from above for falling leaves, seeds and objects dropped toward the opening | Where a downward-facing termination is permitted and exposure from above is a concern |
The important point is not that one angle is universally “better.”
The right configuration is the one that fits the pipe, addresses the actual exposure, and remains compatible with the furnace manufacturer's instructions.
Have a 2-Inch Furnace PVC Vent? Start With the Actual Measurement
If your Schedule 40 PVC pipe measures approximately 2.375 inches (2-3/8") across the outside, compare the installation requirements with LGQF-LL's 2-inch options.
Always verify that the selected termination is permitted for your furnace before ordering or installing.
Have a 3-Inch Furnace PVC Vent?
If your pipe measures approximately 3.500 inches across the outside, it may be nominal 3-inch Schedule 40 PVC.
LGQF-LL also offers corresponding 3-inch configurations for compatible installations.
The product page is the second step.
Your furnace manual is the first.
Prevention Is Not the Same as Selling More Parts
Imagine paying for a service call.
A component gets replaced.
The furnace fails again.
Another component gets replaced.
And eventually someone looks inside the PVC vent and finds a pile of rocks.
That's the part of the Reddit story worth remembering.
Not because every furnace problem is caused by a blocked vent.
It isn't.
But because good maintenance often begins with understanding the whole system before replacing something.
At LGQF-LL, that's the kind of homeowner we want to help:
Someone who doesn't wait for every small exposure to become a failure.
Someone who measures before ordering.
Someone who checks the furnace manual before modifying a vent.
Someone who understands that a small PVC accessory should never override the instructions written for a furnace costing thousands of dollars.
Protect Before Problems Happen doesn't mean putting a screen on everything.
It means preventing the problems that actually can be prevented.
A Practical Fall Furnace Checklist
Before winter arrives, give the heating system a little attention.
- Inspect or replace the furnace filter.
- Run the furnace before the first freezing night.
- Listen for unusual startup sounds.
- Test smoke and carbon monoxide alarms according to their instructions.
- Consider professional furnace inspection and maintenance.
- Locate the outdoor furnace intake and exhaust terminations.
- Look for visible leaves, debris, nesting material, foreign objects or physical damage.
- Consider snow and ice exposure before winter.
- Find the furnace model number before changing any vent termination.
- Measure the actual PVC outside diameter instead of guessing the nominal size.
That ten-minute habit is far less exciting than replacing an inducer motor.
That's exactly the point.
Frequently Asked Questions
What is the main purpose of a high-efficiency furnace PVC exhaust pipe?
Its primary role is to provide the furnace's designed path for venting combustion products outdoors. On many direct-vent systems, a separate PVC pipe supplies outdoor combustion air. The exact configuration depends on the furnace and its installation instructions.
Can a blocked furnace exhaust cause a pressure-switch problem?
A restriction in the venting system can affect the pressure conditions monitored by the furnace, so checking for vent obstruction can be part of diagnosing certain pressure-related faults. However, pressure-switch faults have multiple possible causes and should be properly diagnosed rather than automatically blamed on a blockage.
Can children really block a furnace vent with rocks?
Yes. HVAC professionals in the Reddit discussion described rocks and other foreign objects being placed into exposed vent pipes. One commenter reported removing roughly 100 rocks, while another homeowner described golf balls, rocks and toy cars.
Can mice or squirrels enter an exposed PVC furnace vent?
An exposed outdoor pipe can be accessible to wildlife depending on its location, diameter and termination design. Where the furnace manufacturer permits an appropriate screened termination, a physical barrier can help reduce direct access by animals and larger outdoor debris.
Can leaves, twigs and seeds block a furnace vent?
Outdoor terminations can be exposed to leaves, seeds, twigs, nesting material and windblown debris. Whether that material creates a meaningful restriction depends on the termination design and amount of accumulation, which is why periodic visual inspection can be useful.
What is the outside diameter of 2-inch Schedule 40 PVC?
Nominal 2-inch Schedule 40 PVC has a standard outside diameter of approximately 2.375 inches, or 2-3/8 inches.
What is the outside diameter of 3-inch Schedule 40 PVC?
Nominal 3-inch Schedule 40 PVC has a standard outside diameter of approximately 3.500 inches.
Is a 90-degree furnace vent cap better than a straight 0-degree cap?
Not universally. A downward-facing 90-degree termination reduces direct access from above, while a 0-degree termination preserves a straight outlet direction. The correct choice depends first on what the furnace manufacturer permits and then on the actual outdoor exposure.
Can I put an LGQF-LL screen on my furnace exhaust?
Only when the furnace manufacturer's installation instructions permit the proposed screened termination and configuration. A product physically fitting the PVC pipe does not by itself mean it is appropriate for the appliance.
Should I check my furnace PVC vents every fall?
A simple visual inspection of accessible exterior terminations can be a sensible part of fall furnace preparation. Look for visible debris, foreign objects, physical damage, nesting material, snow or ice exposure, while following the furnace manufacturer's maintenance instructions.
Unsure If Your Furnace Allows a Mesh Vent Cap?
Don't start with the cap. Start with the furnace.
Locate the furnace model number, open the manufacturer's installation manual, find the venting and termination section, and confirm what termination configurations are permitted.
Then measure the PVC outside diameter:
About 2-3/8" OD → usually nominal 2" Schedule 40 PVC
About 3.5" OD → usually nominal 3" Schedule 40 PVC
Once those two questions are answered — “Is this termination permitted?” and “What size is my pipe?” — choosing a vent cap becomes much simpler.
Explore LGQF-LL PVC Vent Caps →One Last Look Before Winter
Most homeowners will never find 100 rocks inside a furnace vent.
That's good.
But the lesson isn't really about rocks.
It's about noticing the small, exposed parts of a home that quietly matter.
Before winter, replace the filter. Test the furnace. Test the alarms. Have the system inspected when appropriate.
And when you walk outside, take a few seconds to look at those white PVC pipes.
If they're clear and properly terminated, move on with your day.
If something looks wrong, investigate it before the coldest night of the year.
And if protection is appropriate and permitted for your particular furnace, measure first and choose the configuration that makes sense for the actual installation.
