Need to Protect a 3 Inch PVC Vent Without Adding a Tight Elbow?
An open PVC termination can give birds, rodents, insects, leaves and windblown debris a direct path into the pipe. A straight screen may be enough in some locations, while other installations need the outlet redirected at an angle and have room for a wider curve.

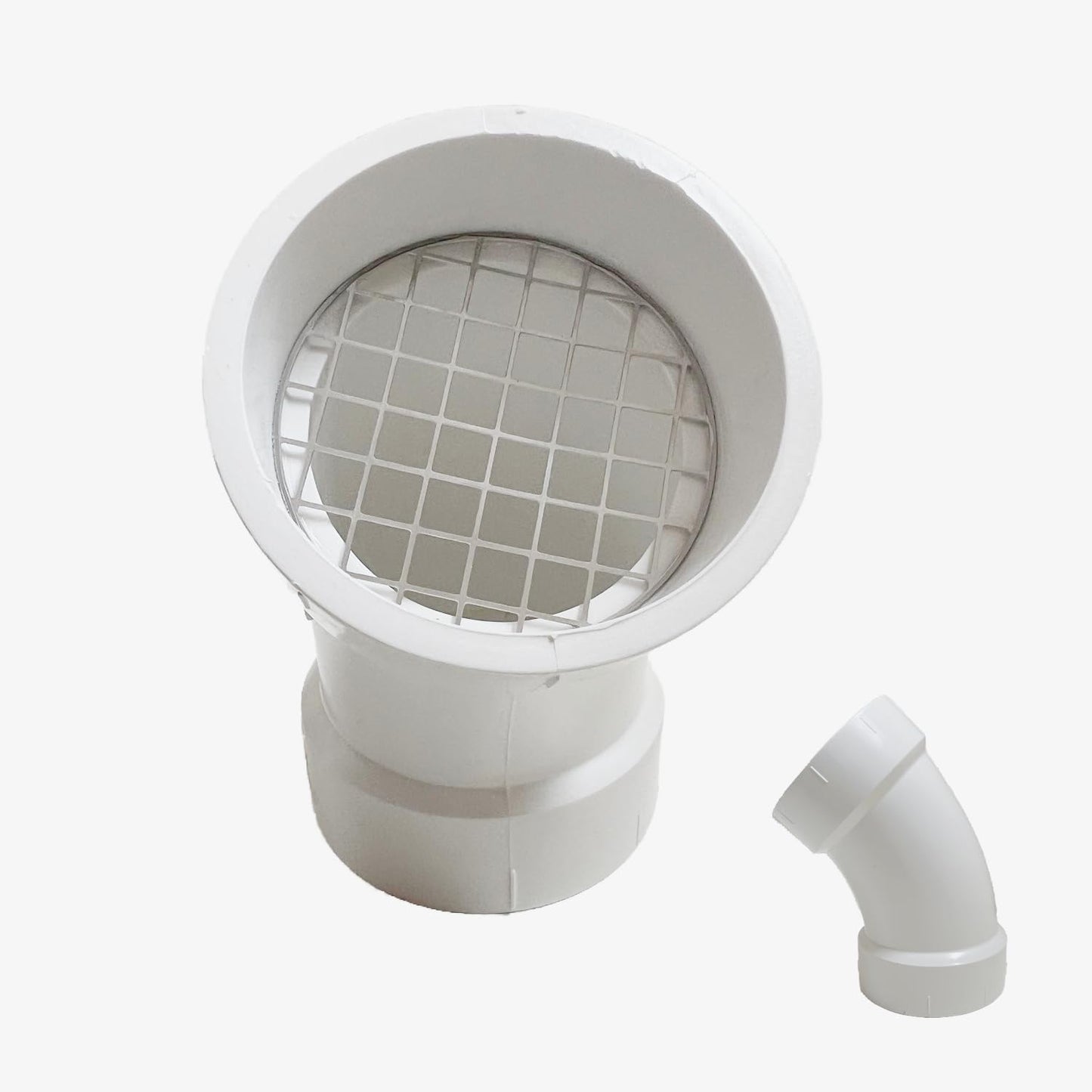

The LGQF-LL 3 Inch 45 Degree Long Sweep PVC Vent Cap combines a gradual 45 degree body, a lower outer-fit socket and a fixed 304 stainless steel screen. It is intended for correctly sized PVC terminations where this screened configuration is permitted—not as a universal elbow or general roof-vent product.
- 45 Degree Long Sweep configuration with a wider bend radius
- Outer-fit lower socket for compatible pipe measuring approximately 3.5 inches OD
- Designed around 3-inch Schedule 40 and compatible DWV PVC dimensions
- Fixed 304 stainless steel screen helps deter pests and larger outdoor debris
- Low-point drainage opening gives incidental moisture a path out of the body
- Applicable to permitted furnace terminations and approved PVC roof configurations
See the 45 Degree Long-Sweep Structure
This model is different from the separate 45 Degree Short Sweep cap. Its wider curve needs more space around the pipe. “Long sweep” describes the product’s geometry; it does not guarantee a specific airflow rate, pressure reduction or appliance-efficiency improvement.
Confirm Diameter, Orientation and Clearance
1. Identify the Pipe

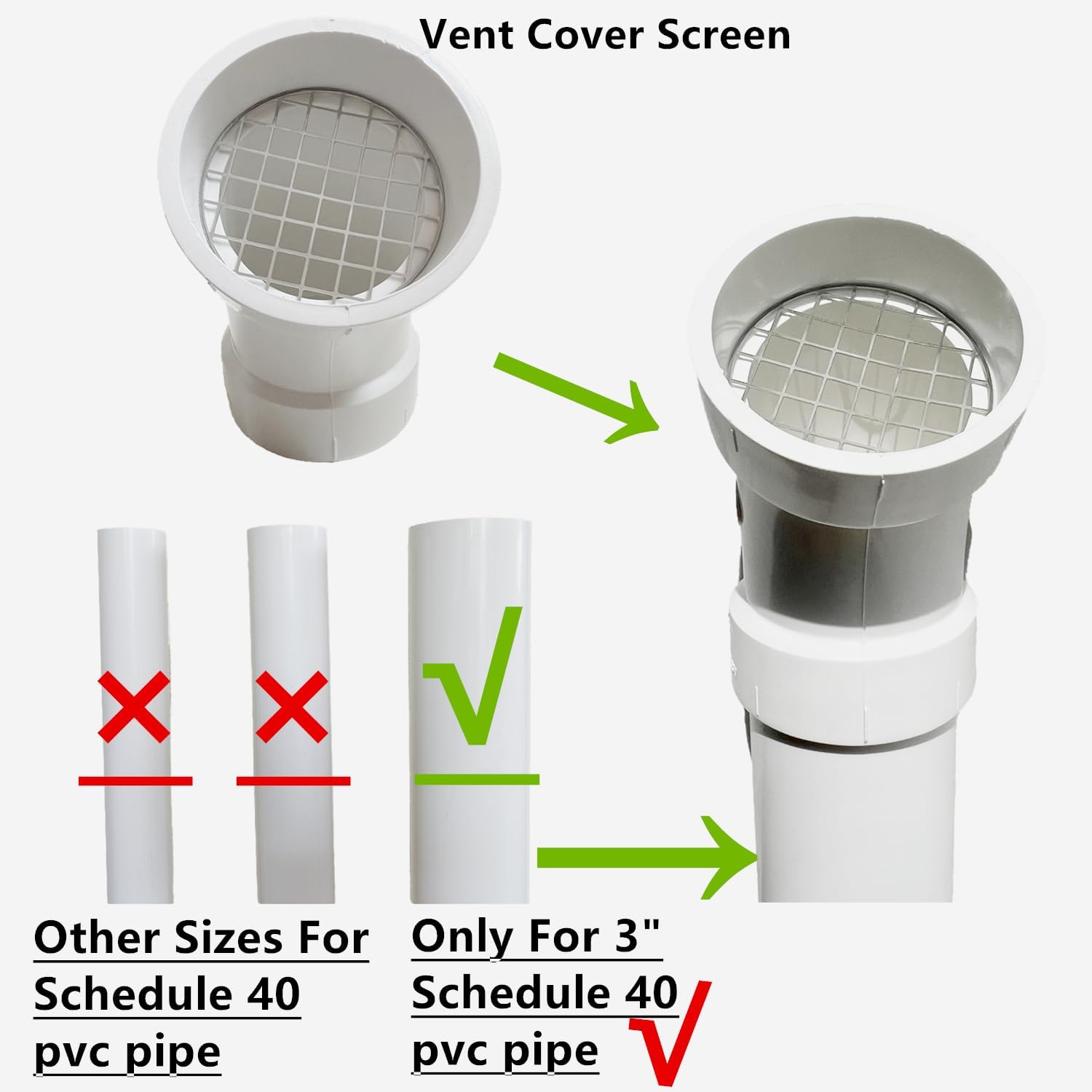

Confirm that the termination uses compatible 3-inch Schedule 40 or dimensionally compatible DWV PVC.

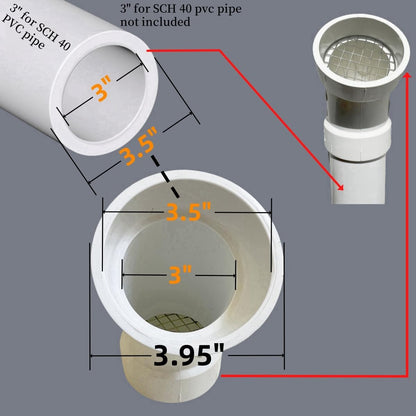

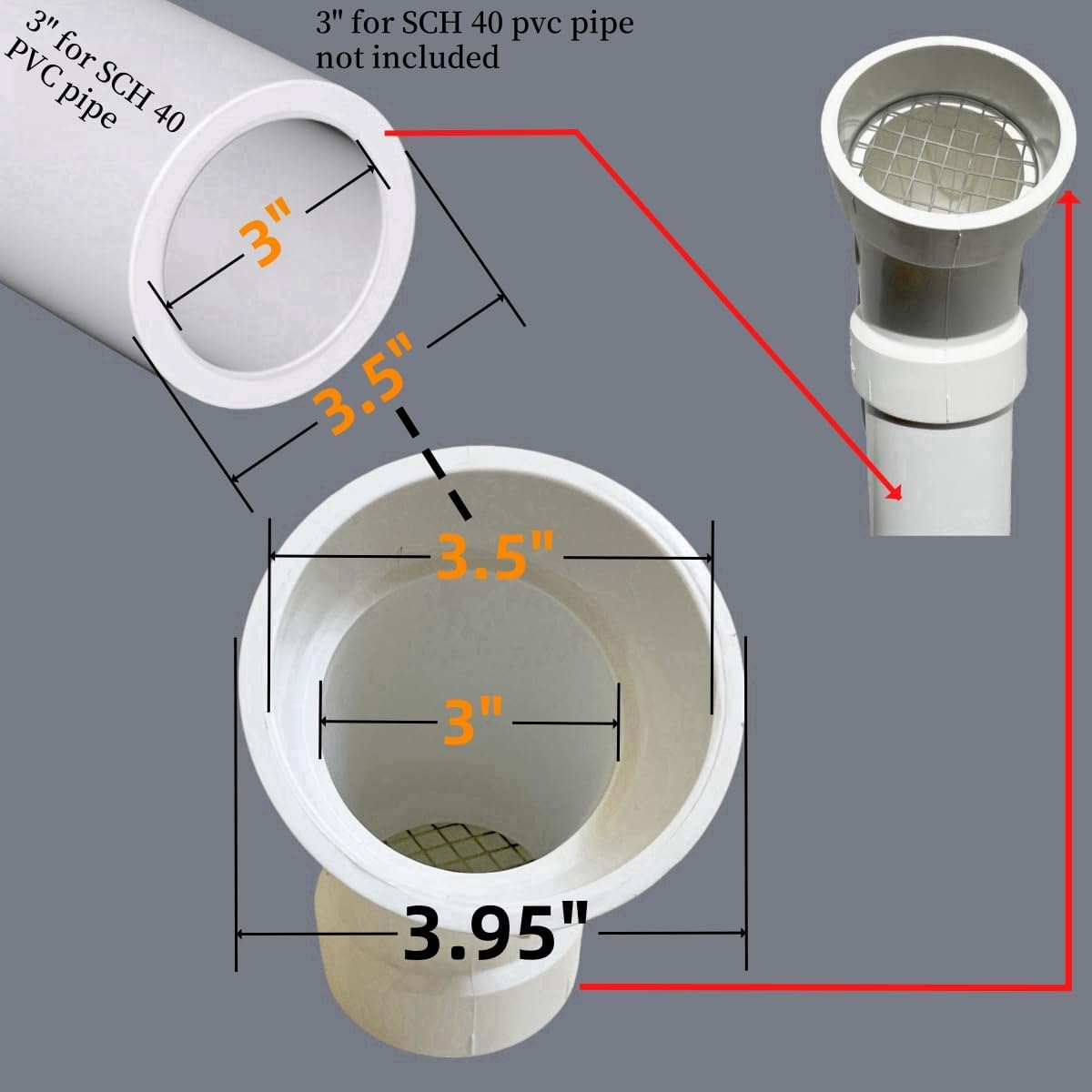

2. Measure the Outside
Measure straight across the pipe’s outside diameter. The expected OD is approximately 3.5 inches.
3. Check the Available Space
Allow room for the wider curve, screen inspection and every required wall, roof, appliance and service clearance.
“3 inch” is the nominal pipe size. This outer-fit cap is selected by the actual outside diameter. Do not use the pipe’s inside opening as the fit measurement.
Match the Product to the Actual Termination
Compatible Furnace Intake or Exhaust
For a sidewall termination, the outlet may be oriented downward when the appliance instructions permit this 45 degree screened configuration. Confirm allowable screening, equivalent vent length, airflow and clearances first.
Permitted PVC Roof Termination
The cap may be used only on a PVC roof termination whose system instructions and local requirements permit this connection, screen and orientation. It does not replace roof flashing, a pipe boot or waterproofing at the roof penetration.
What Each Part Is Designed to Do
45 Degree Long-Sweep Body
The wider curve changes the outlet direction more gradually than the compact Short Sweep model and requires additional installation space.
Angled Termination Outlet
The 45 degree outlet changes the direction of the opening. Its weather exposure depends on installation orientation, wind, roof or wall location and system requirements.
304 Stainless Steel Screen
The fixed mesh helps deter birds, rodents, insects, leaves and larger outdoor debris while leaving the termination visibly open.
Low-Point Drainage Opening
A small opening provides an exit path for incidental moisture reaching the cap. It does not replace a condensate-management system or guarantee freeze prevention.
Outer-Fit Lower Socket
The lower socket pushes over compatible PVC pipe measuring approximately 3.5 inches OD. Verify fit before any permanent installation step.
Open, Serviceable Screen
The screened end remains the open termination. Keep it accessible so exterior debris, frost or damage can be checked as the system instructions require.
Know the Safety Boundary
A vent termination is part of a complete appliance or building system. This accessory cannot override the manufacturer’s instructions, engineering requirements or local code.
- Use only when the applicable system permits a 45 degree screened PVC termination.
- Do not connect another pipe, cover or valve to the screened outlet.
- Do not use it as a sealed end cap, backdraft damper, check valve or backflow device.
- Do not use it on metal ductwork, flexible dryer duct or an incompatible pipe diameter.
- It is not a roof fan, roof flashing, pipe boot, ridge vent or soffit-ventilation product.
- Do not assume the screen creates zero restriction or that the drain opening prevents freezing.
- Confirm screening permission, airflow, allowable vent length, orientation and termination clearances.
- Keep the screen visible and accessible for inspection and maintenance.
What Real Installations Teach Before Checkout
Most fit problems begin with the same shortcut: ordering from the “3 inch” label without measuring the pipe. A nominal 3-inch PVC pipe is approximately 3.5 inches across the outside, and an outer-fit cap must match that outside dimension.
The second common mistake is treating every roof opening or appliance vent as interchangeable. The pipe may look similar from a distance, but the permitted material, screen, orientation and clearance come from the actual system—not from the appearance of the opening.
The practical sequence is simple: identify the system, measure the pipe, compare the available space with the Long Sweep shape, then confirm that the termination configuration is permitted.
See documented homeowner PVC vent protection problems and solutions and learn why birds and outdoor debris enter exposed PVC terminations.
For People Who Measure First and Maintain the Whole System
A vent cap is a small part, but it sits at the boundary between an important system and the outdoors. The goal is not to close that opening. It is to add a correctly sized, permitted protective termination while preserving inspection access.
Careful homeowners and installers do not buy from the nominal label alone. They verify the pipe material, actual diameter, Long Sweep clearance and system instructions. LGQF-LL makes those decision points visible so the purchase is based on the installation—not guesswork.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 45 Degree Long Sweep PVC Vent Cap |
| Nominal Pipe Size | 3 Inch |
| Compatible Pipe OD | Approximately 3.5 Inches; Measure Before Ordering |
| Fit Type | Outer-Fit / Push-On Lower Socket |
| Compatible Pipe | Compatible 3 Inch Schedule 40 or Dimensionally Compatible DWV PVC |
| Configuration | 45 Degree Long Sweep |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel Mesh |
| Drainage Feature | Low-Point Opening for Incidental Moisture |
| Compatible Applications | Permitted Furnace Intake, Furnace Exhaust and Approved PVC Roof Termination Configurations |
| Color | White |
| GTIN / UPC | 014679987371 |
| SKU / Amazon ASIN | B0DW8Y5WRJ |
Compare the 3 Inch Vent Cap Shapes
Choose the shape from the required termination direction and available clearance. The Short Sweep model is more compact; this Long Sweep model uses a wider curve; the 90 Degree models direct the screened opening farther from the straight pipe axis.
Learn Before You Install
Pipe location, allowable screening, airflow, condensation, frost, snow level, roof exposure and termination clearance must be considered as part of the complete system.
Frequently Asked Questions
What pipe does this 3 inch 45 degree long-sweep vent cap fit?
It is designed for compatible 3-inch Schedule 40 or dimensionally compatible DWV PVC pipe measuring approximately 3.5 inches outside diameter. Measure the actual pipe before ordering.
Does the cap insert inside the pipe?
No. The lower socket is an outer-fit connection that pushes over the outside of a compatible pipe.
What does 45 degree long sweep mean?
It describes the wider curved geometry of the body. It does not guarantee a specific airflow rate, pressure drop or appliance-efficiency improvement.
How is this different from the 3 inch 45 degree short-sweep cap?
The Short Sweep model uses a tighter curve and takes less space. This Long Sweep model has a wider bend radius and needs more clearance around the termination.
Can another PVC pipe be connected to the screened end?
No. Only the lower socket connects to the existing pipe. The angled screened end is the open termination outlet.
Can it be used for furnace intake and exhaust pipes?
It may be used on compatible PVC furnace intake or exhaust terminations only when the appliance manufacturer permits this 45 degree screened configuration. Confirm allowable screening, airflow, equivalent vent length and clearances.
Can this model be installed on a PVC roof termination?
Only when the applicable system instructions, roof configuration and local requirements permit this outer-fit 45 degree screened termination. The cap does not replace the flashing or waterproofing around the roof penetration.
Is it a general roof vent cap?
No. It is a screened PVC pipe termination accessory. It is not a metal roof vent, attic ventilator, fan, flashing or roof boot.
Does the screen create zero airflow restriction?
No such guarantee should be made. Any screen can affect a vent system. Verify screening permission, airflow limits and inspection requirements for the actual system.
Does the drainage opening prevent freezing?
No. It gives incidental moisture reaching the body a path out, but it cannot guarantee prevention of frost or ice. Weather, condensation, orientation and system operation all matter.
Does the 45 degree outlet completely keep out rain and snow?
No outdoor termination can guarantee that under every orientation and weather condition. Exposure depends on the installation location, wind and the permitted termination design.
Is this a backdraft damper, check valve or sealed end cap?
No. It is a fixed screened PVC termination cap with no moving valve or damper mechanism, and the screened outlet remains open.
Should the cap be glued to the pipe?
Follow the applicable appliance or system instructions and local requirements. Do not use adhesive or permanently modify the termination unless those instructions permit it.
Measure the Pipe. Confirm the System. Then Choose the Long Sweep.
Confirm compatible PVC, measure approximately 3.5 inches OD, allow room for the wider curve and verify that this 45 degree screened termination is permitted.
Price: $20.99 USD
Important Installation Notice
Always follow the appliance, system or pipe manufacturer’s instructions and applicable local requirements. Confirm allowable screening, airflow, equivalent vent length, orientation, weather exposure, roof or wall clearances and inspection access before installation. Inspect the mesh periodically and remove exterior accumulation only when the connected system can be accessed safely under its maintenance instructions.
