Need to Screen an Open 3-Inch PVC Termination Without Sealing It?
An open PVC termination can give birds, rodents, insects, leaves and larger outdoor debris a direct path into the pipe. The LGQF-LL 3 Inch 0 Degree PVC Vent Screen Cap adds a fixed stainless steel barrier while keeping the termination visibly open.
- Made for compatible 3-inch Schedule 40 PVC pipe
- Outer-fit sleeve for pipe measuring approximately 3.5 inches outside diameter
- Straight 0-degree body keeps the screened face aligned with the pipe
- Integrated 304 stainless steel mesh helps deter pests and larger debris
- Small drainage gaps provide a path for incidental moisture near the screen
- Suitable only where the applicable system instructions permit a straight screened termination
The Shape, Screen and Fit Are Visible Before You Order

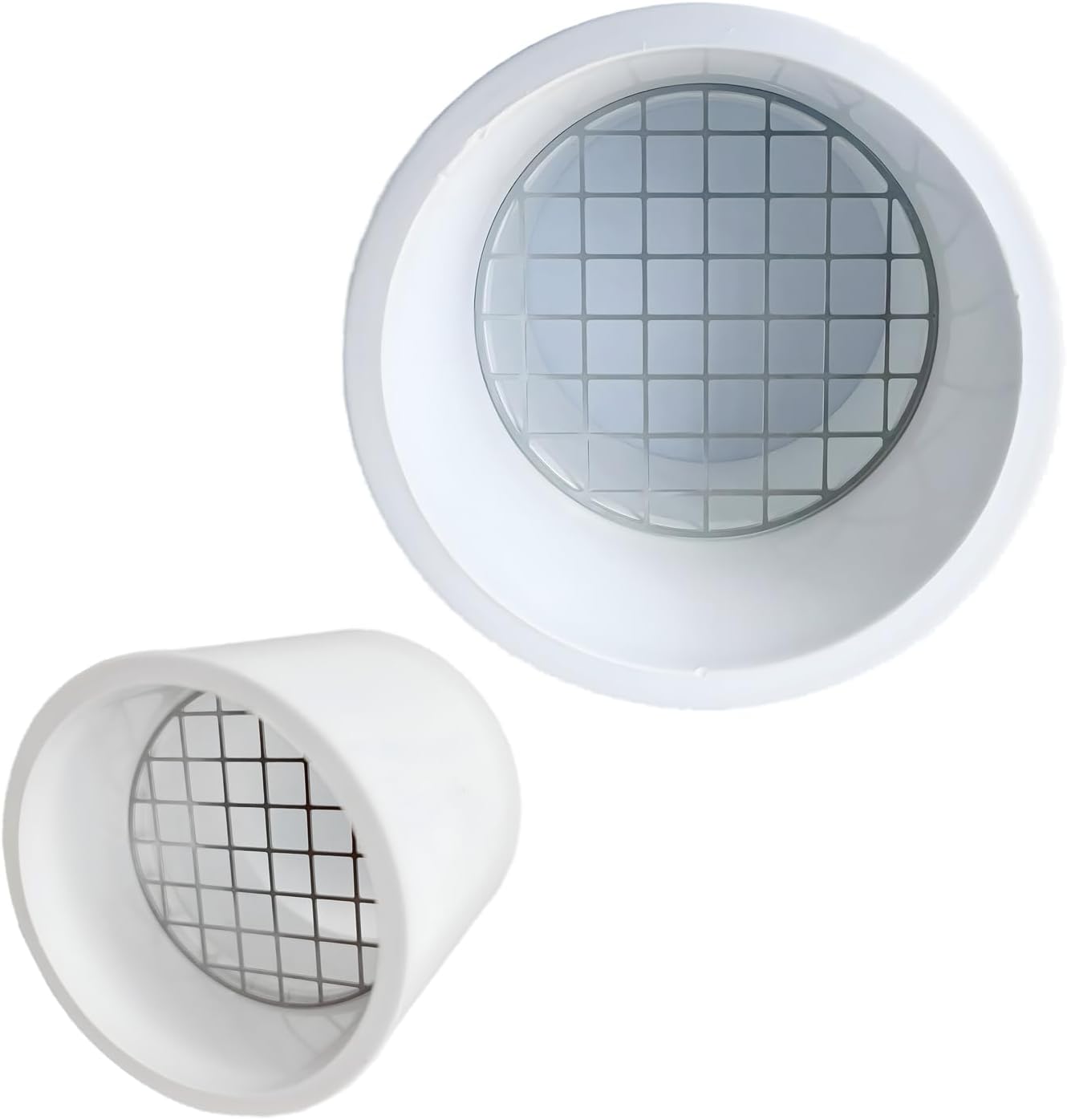

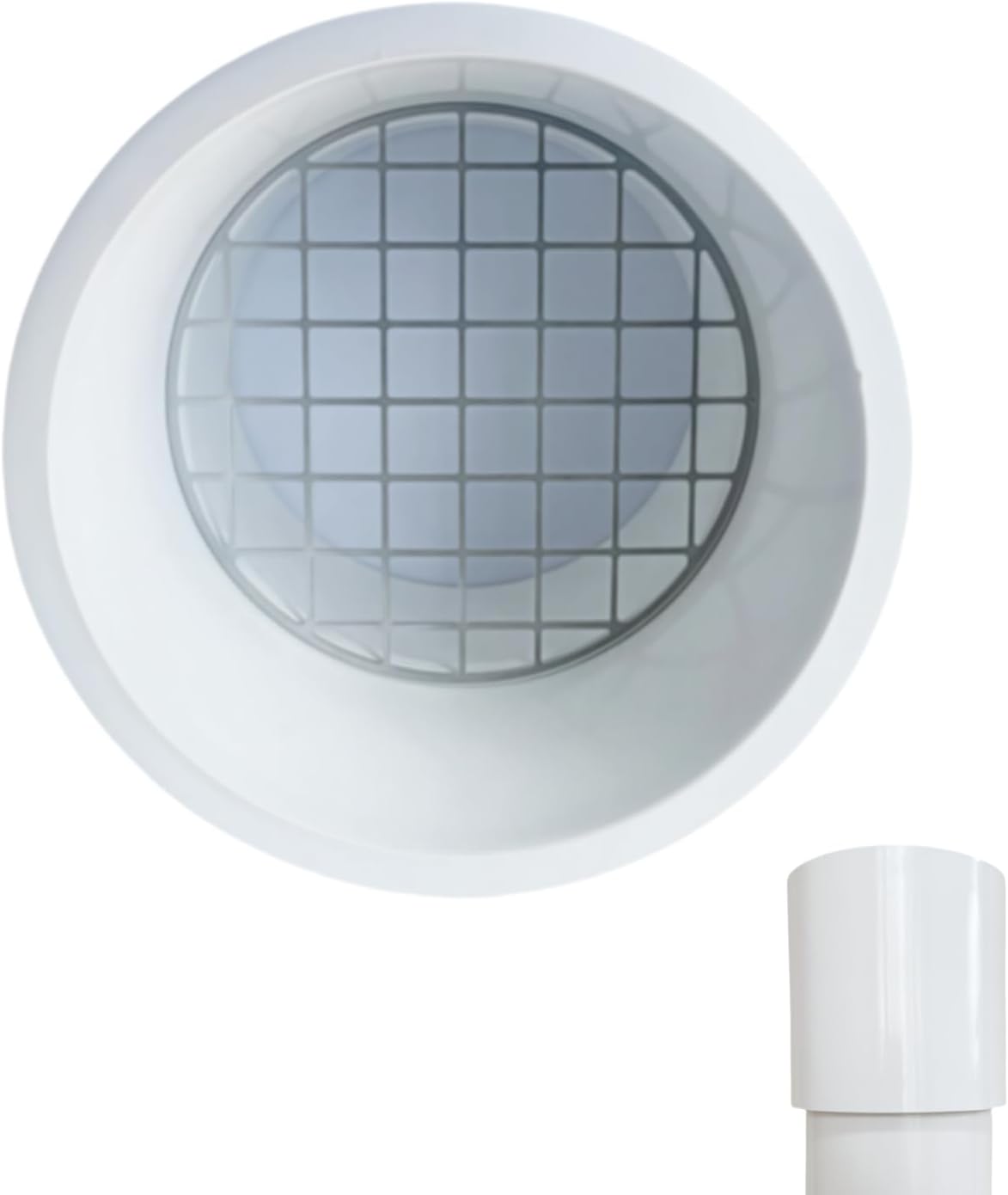

This is the straight 0-degree model. It does not add a 45-, 90- or 180-degree bend, and it is not a sealed end cap. The gallery shows the open screened face, outer-fit sleeve and published dimensions so the structure can be checked against the existing pipe.
A 30-Second Measurement Prevents the Most Common Ordering Mistake
1. Confirm the Pipe
Verify that the termination is compatible 3-inch Schedule 40 PVC—not metal duct, flexible hose or thin-wall pipe.
2. Measure the Outside
Measure straight across the pipe exterior. The target outside diameter is approximately 3.5 inches.
3. Confirm the Use
Check the appliance, vent-system or local-code instructions to confirm that a straight screened termination is permitted in the actual location.
“3 inch” is the nominal pipe size. The actual outside measurement—not the name alone—determines whether this outer-fit sleeve can slide over the pipe.
What the 0-Degree Design Actually Does
Straight, Low-Profile Body
The short PVC sleeve adds a screened end without changing the pipe direction. It is useful only where the approved termination is meant to remain straight or vertical.

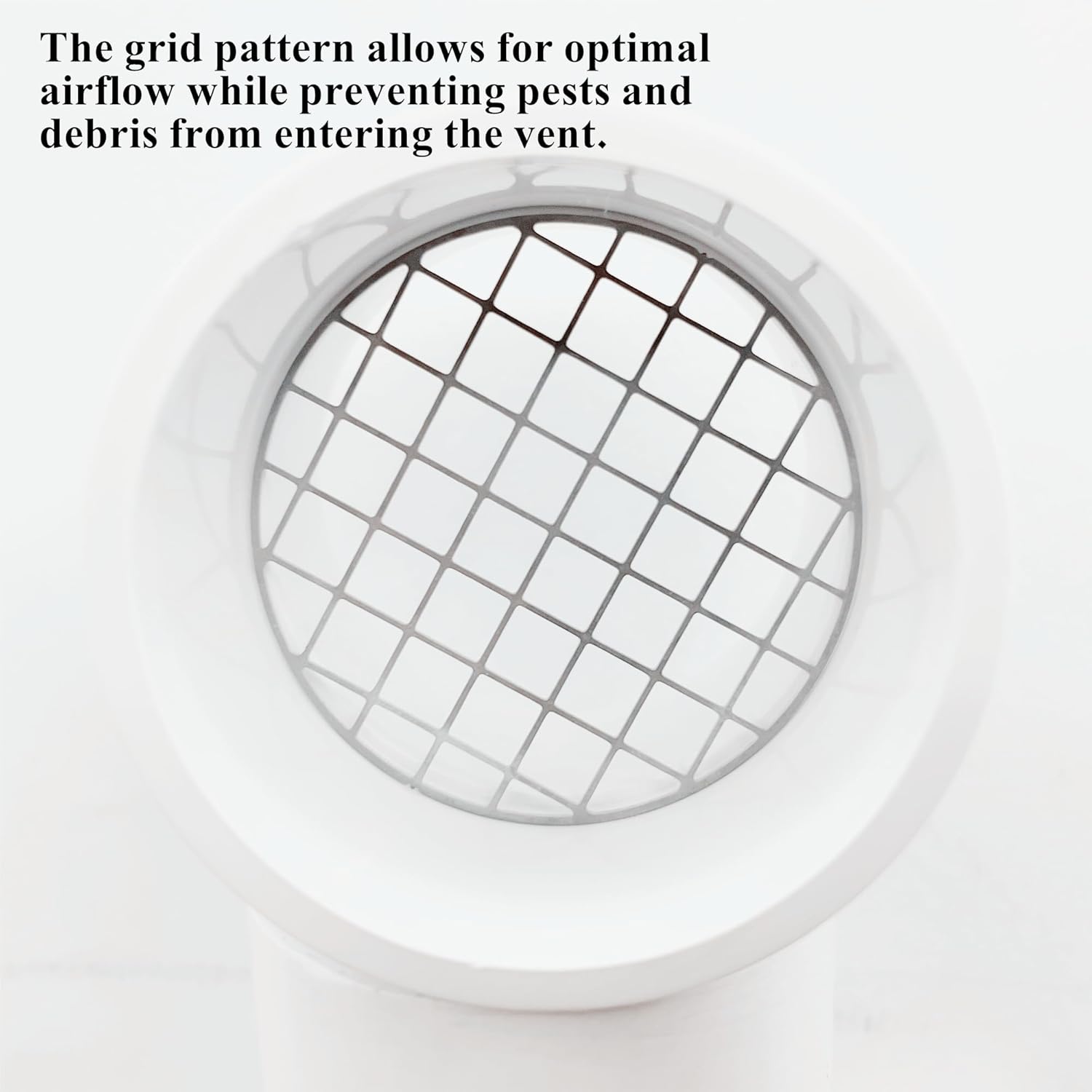

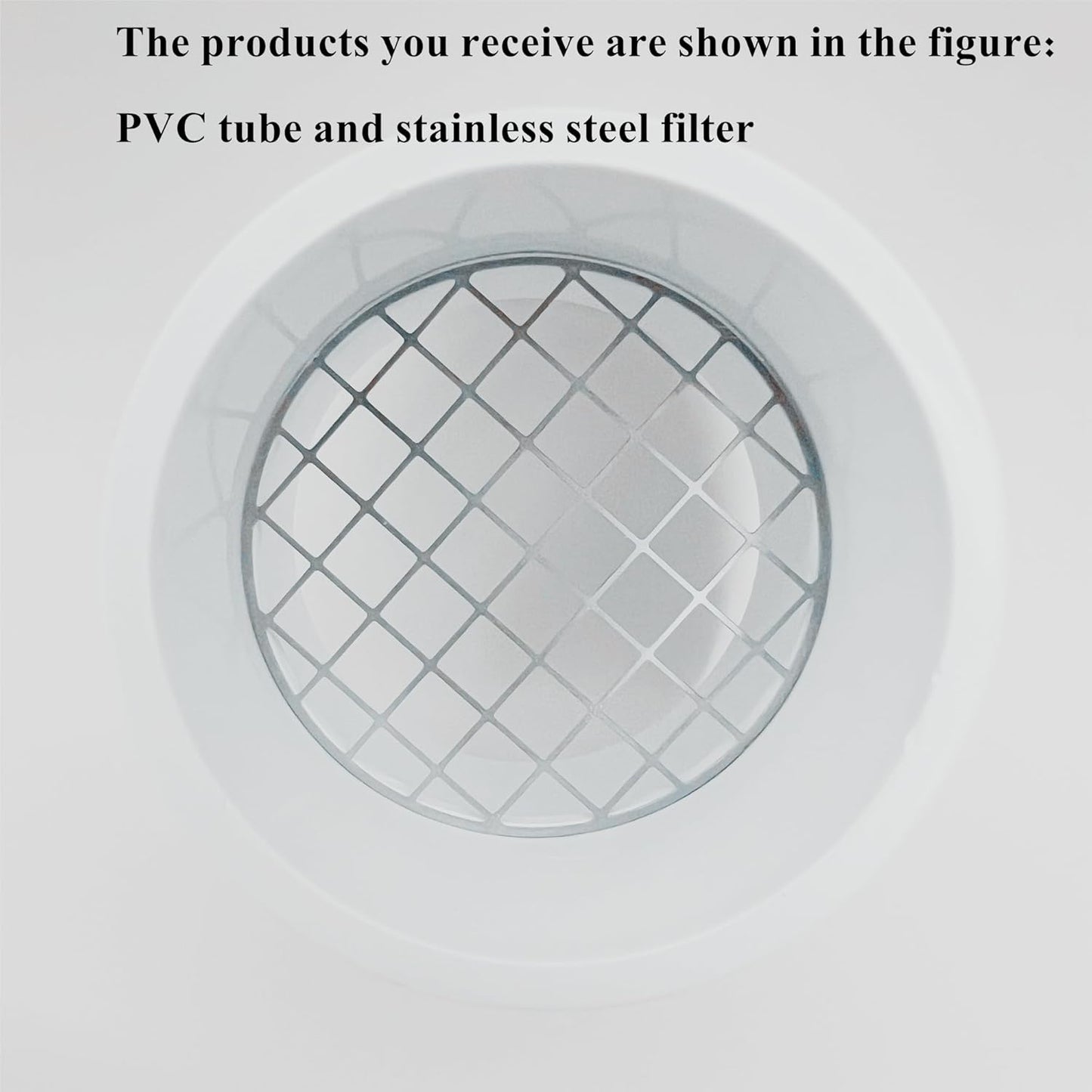

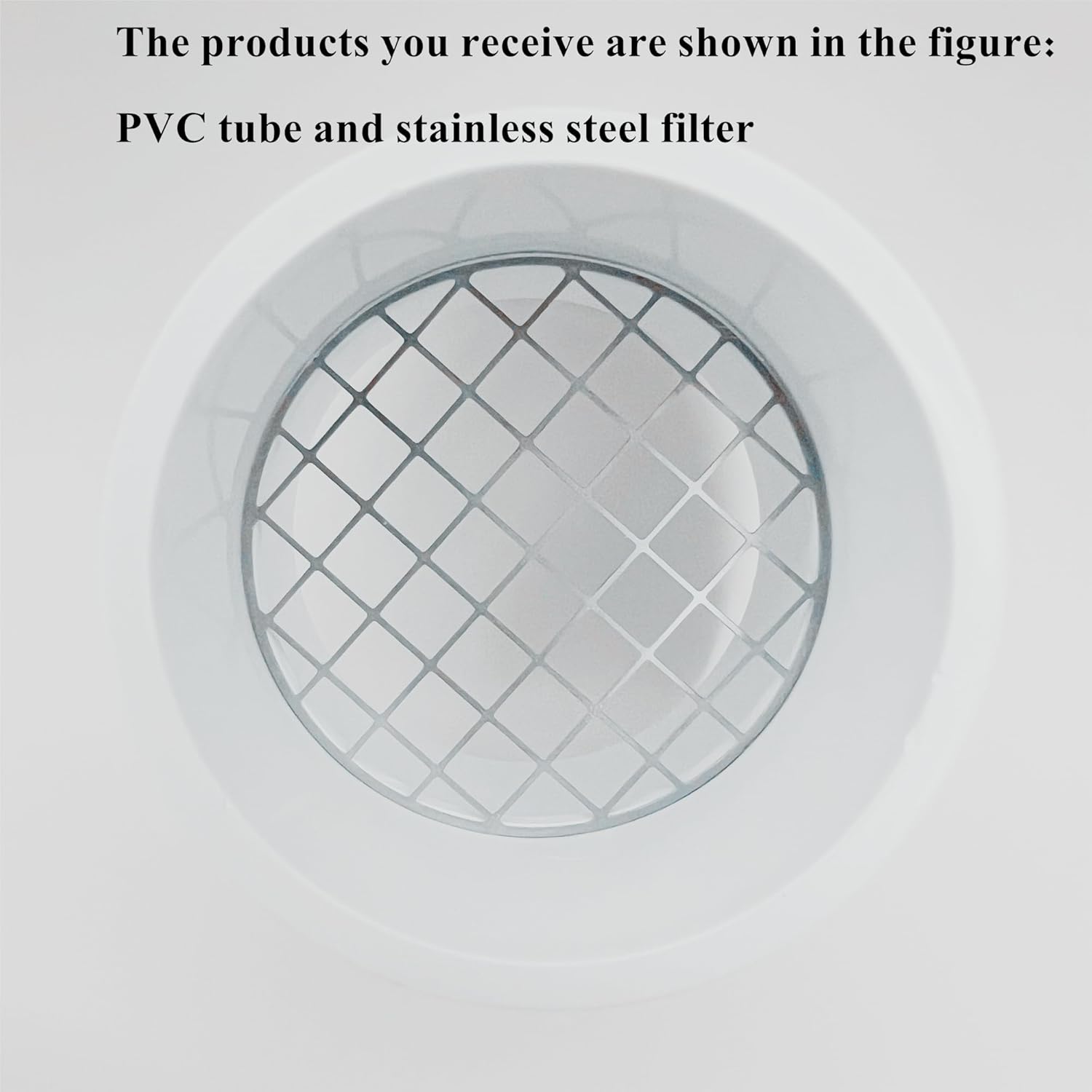

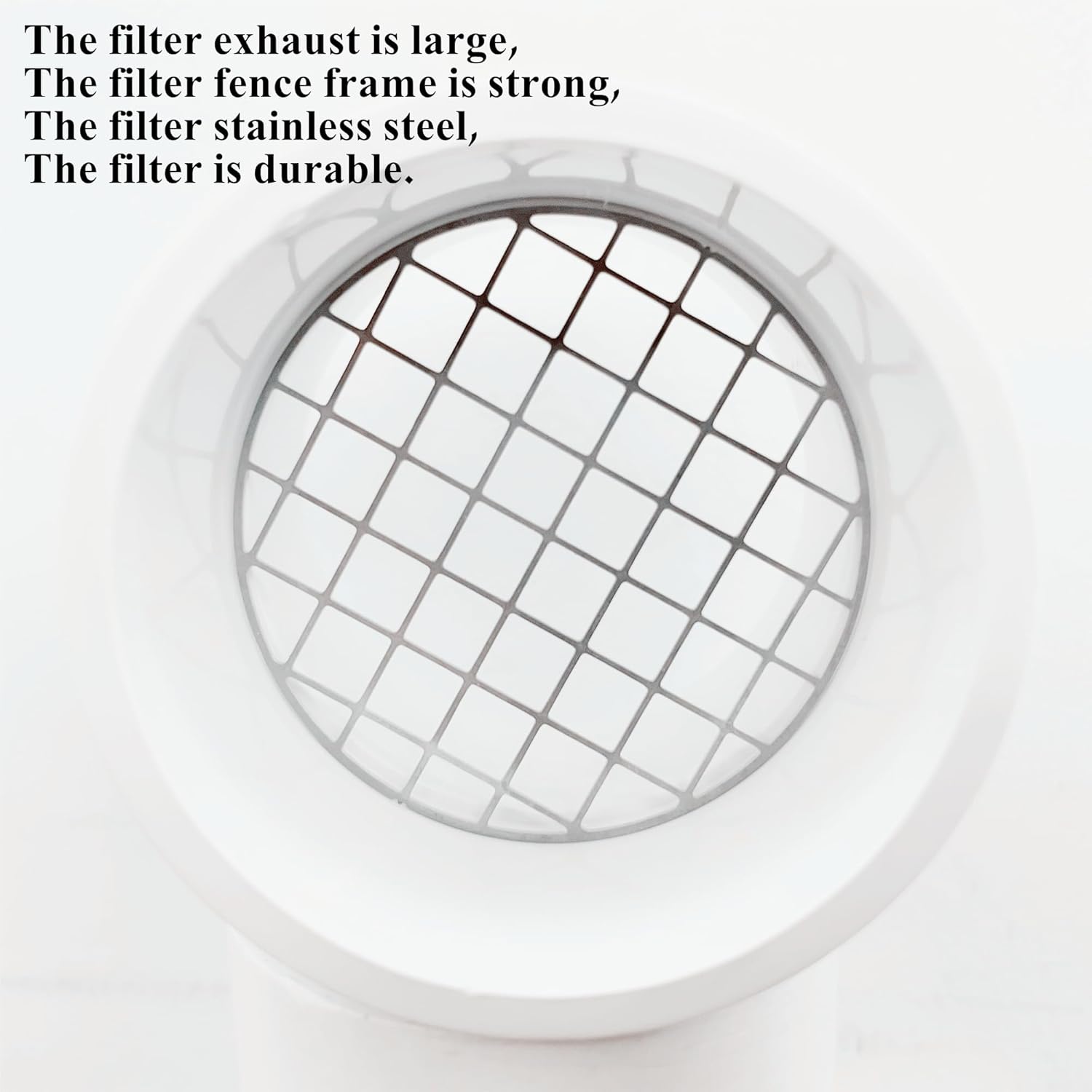

304 Stainless Steel Screen
The fixed mesh helps deter birds, rodents, insects, leaves and larger debris. It does not filter fine particles and does not close when airflow stops.

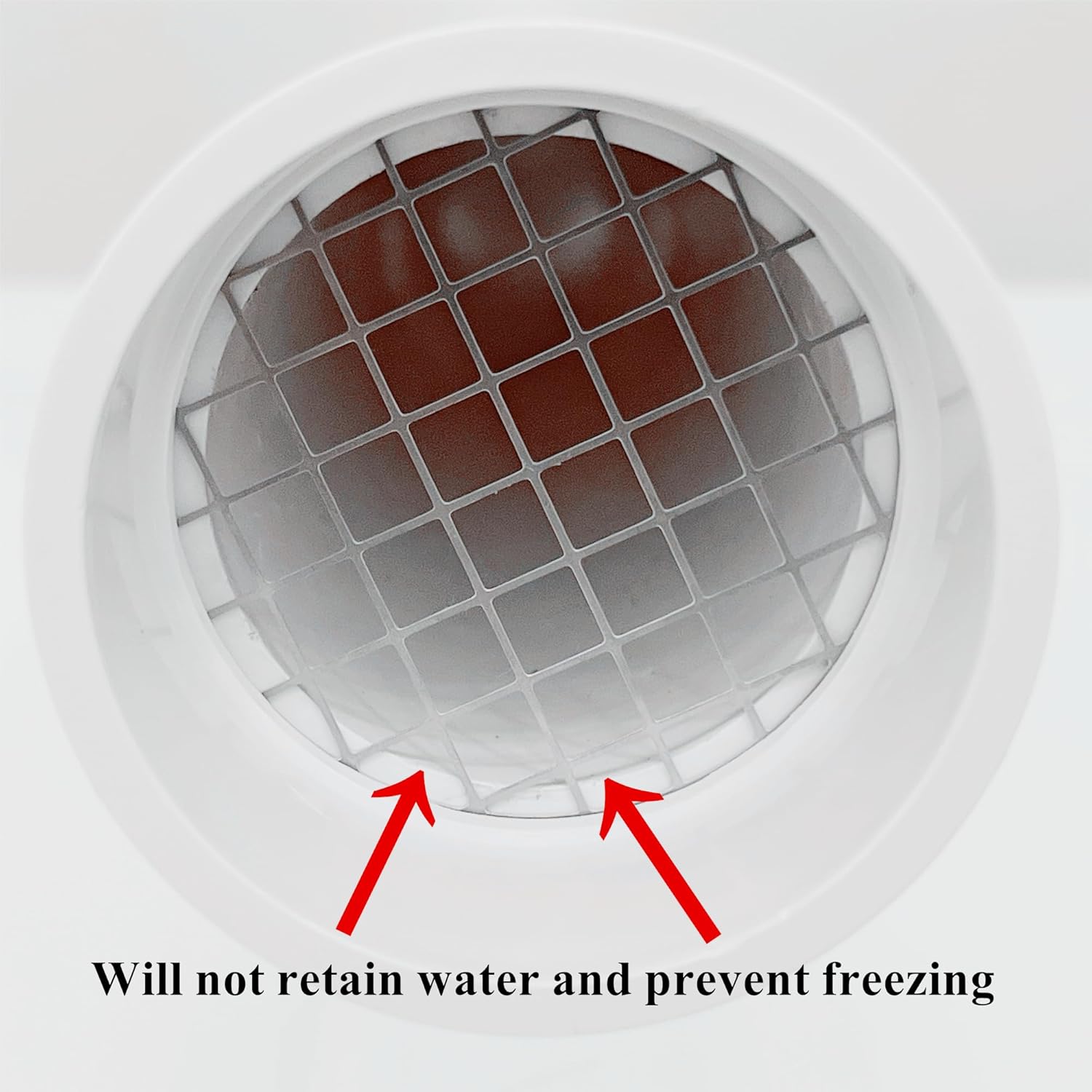

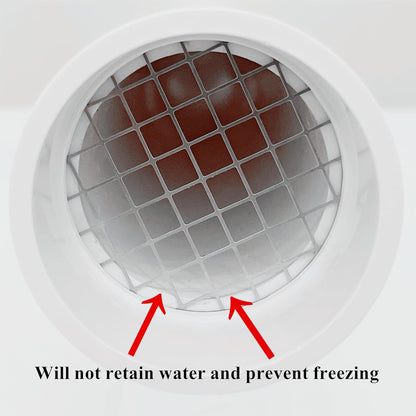

Small Drainage Gaps
Openings near the screened rim give incidental moisture a path out. They cannot guarantee that rain, frost, snow or ice will never enter or collect.

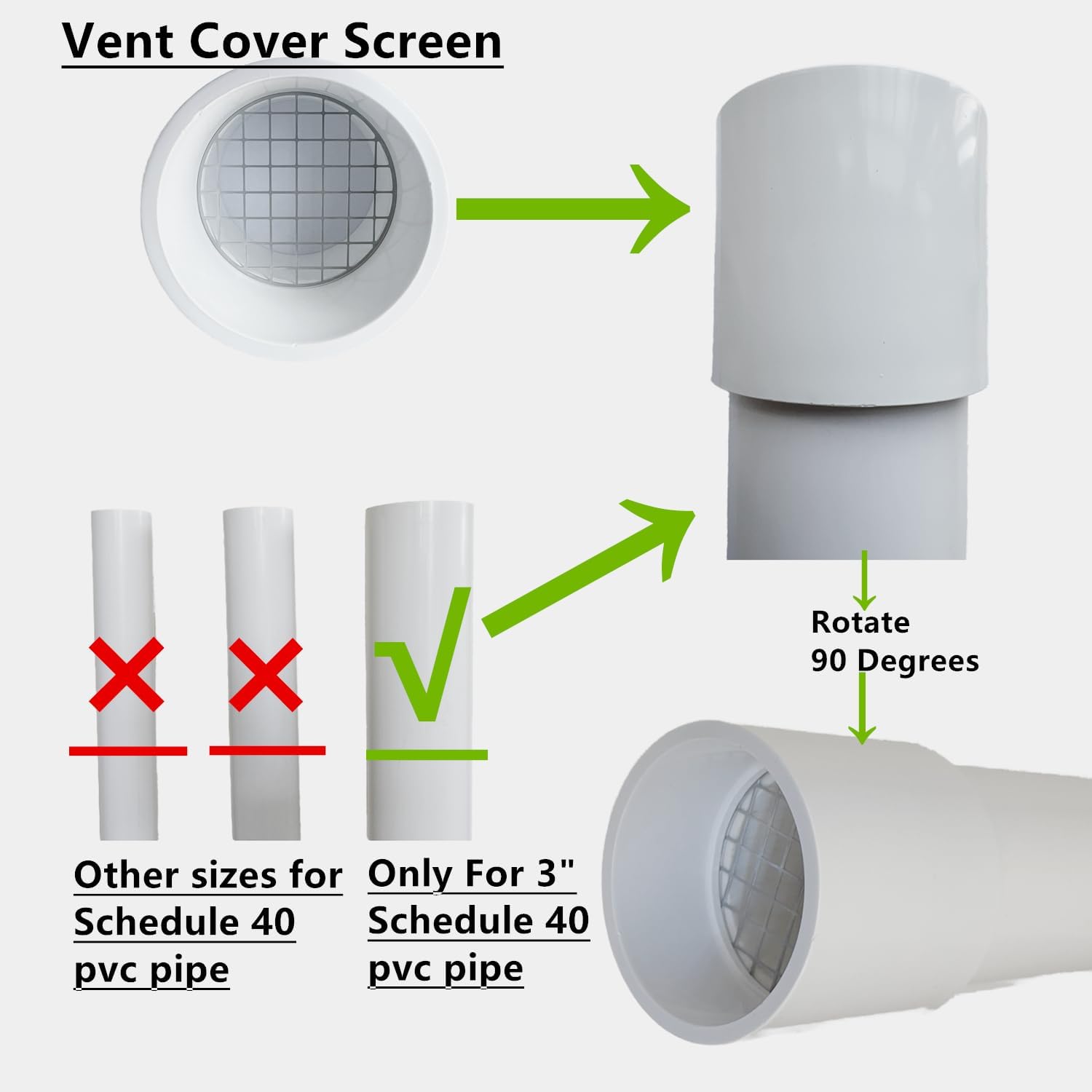

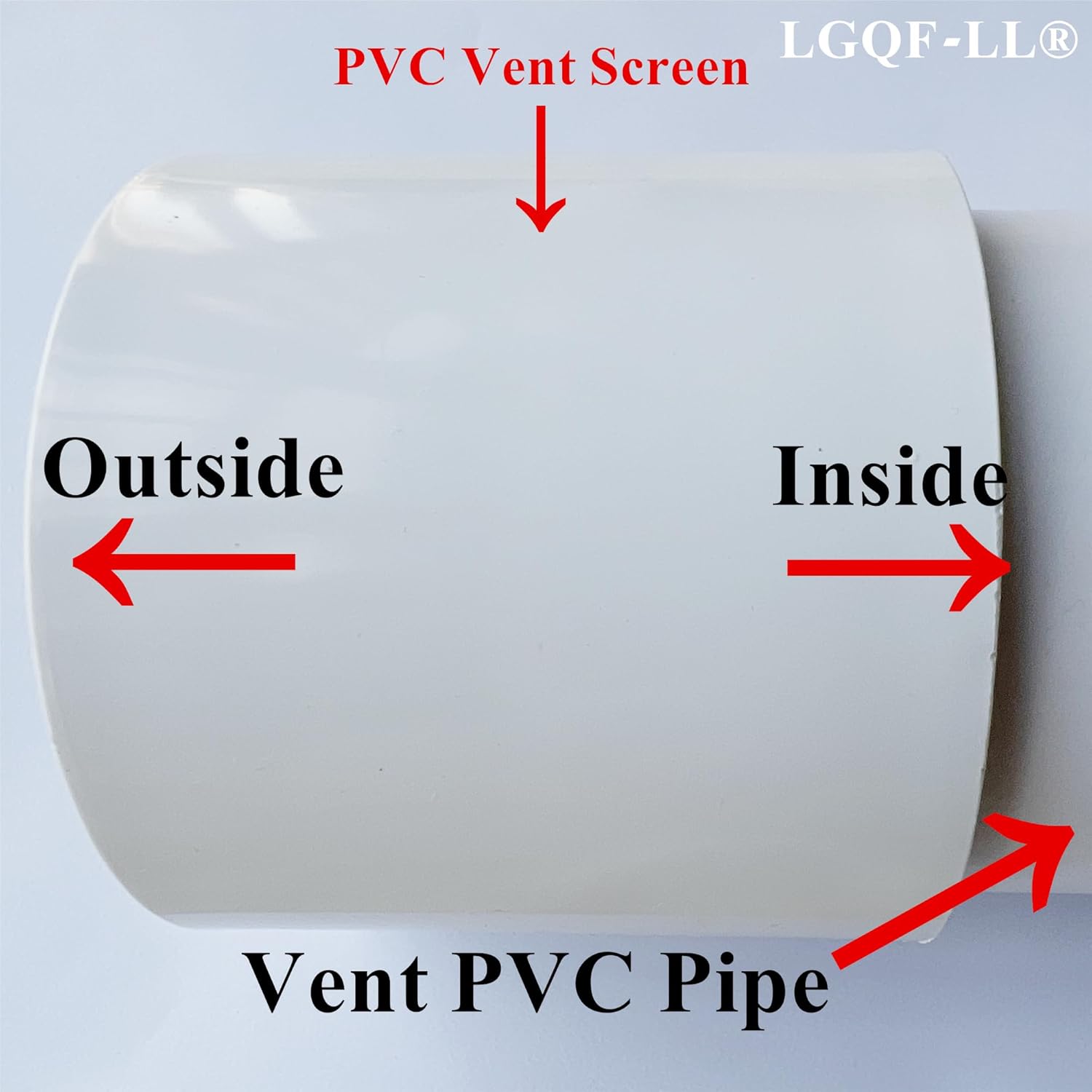

Outer-Fit Sleeve
The body slides over compatible pipe measuring about 3.5 inches OD. Because it does not occupy the pipe interior, it is different from an insert-style screen.
Where This Straight Screen Cap May Be the Right Shape
Compatible Furnace Intake or Exhaust
Use only when the appliance manufacturer permits a 3-inch PVC screened termination in the selected orientation. Confirm allowable vent length, airflow, separation and clearance requirements.
Approved Vertical PVC Roof Termination
The 0-degree body can sit over a compatible vertical PVC pipe when the governing system instructions and local code allow a screened roof termination. It is not a universal roof cap.
Roof-Compatible Does Not Mean Every Roof Vent
Use this product only on a compatible PVC termination after checking the rules for that system. A screen changes the open area and requires inspection. An upward-facing 0-degree outlet also has more direct exposure to rain, snow, frost and wind-driven debris than a downward-facing model.
- Do not use it as a generic attic vent, soffit vent, roof fan cover, turbine vent or flashing boot.
- Do not install it on a chimney, flue, metal duct, flexible dryer vent or incompatible pipe.
- Do not treat it as a sealed PVC end cap, rainproof cover, backdraft damper, check valve or backflow device.
- For furnace intake or exhaust, follow the appliance manufacturer’s screening and termination instructions.
- For a vertical roof termination, confirm screening permission, weather exposure, snow level, drainage and service access.
- Keep the screen accessible and inspect it for insects, nesting material, leaves, frost and ice.
- Do not rely on the small drainage gaps as a guarantee against freezing or water entry.
What Owners Notice in Real Installations
The most useful feedback is not about marketing language. It is about whether the sleeve fits the pipe, whether the screen feels solid and whether the selected system can remain open while gaining a physical barrier.
“Worked out great — strong screen.”
“It fits perfectly over my 3-inch PVC pipe.”

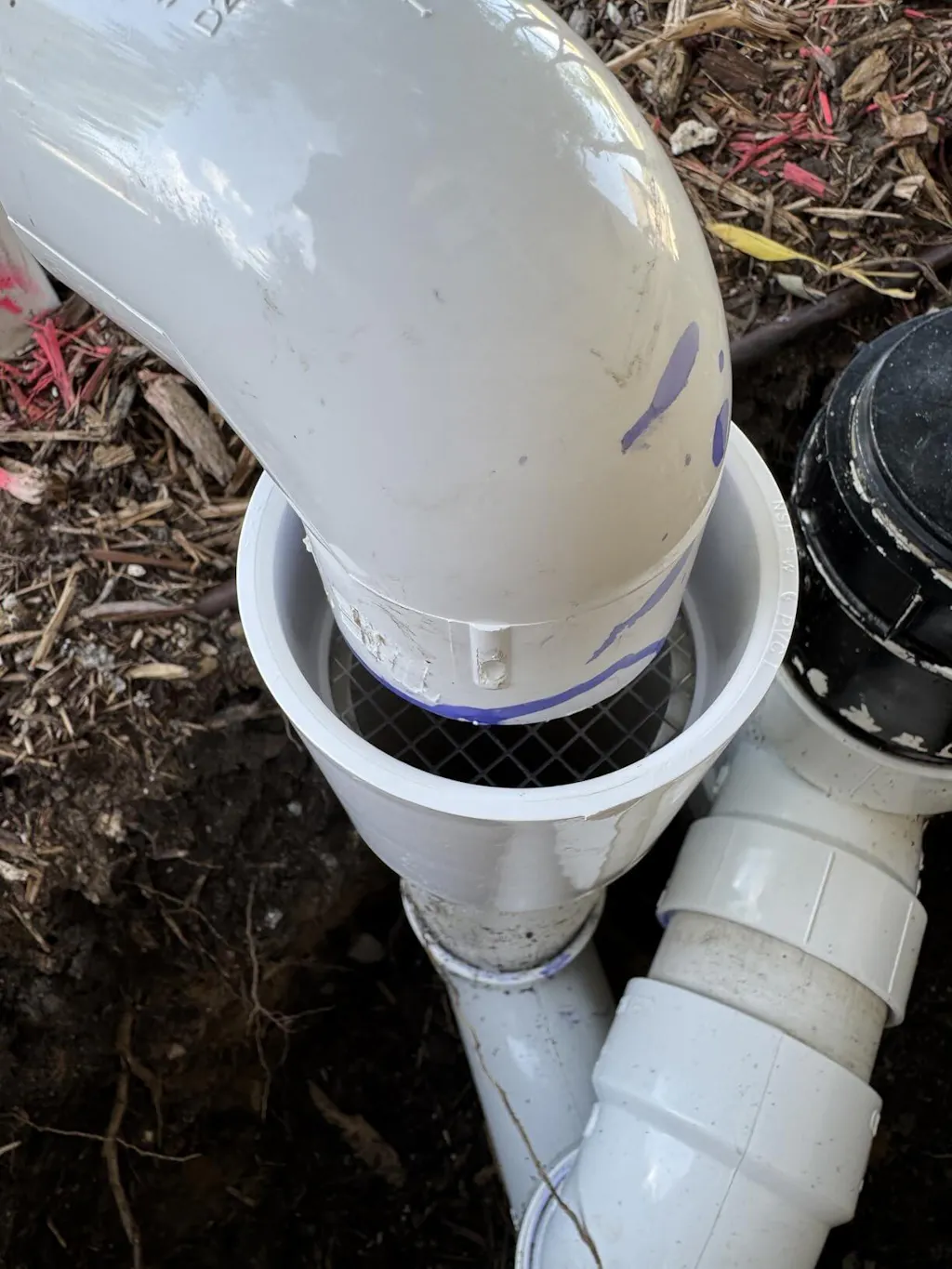

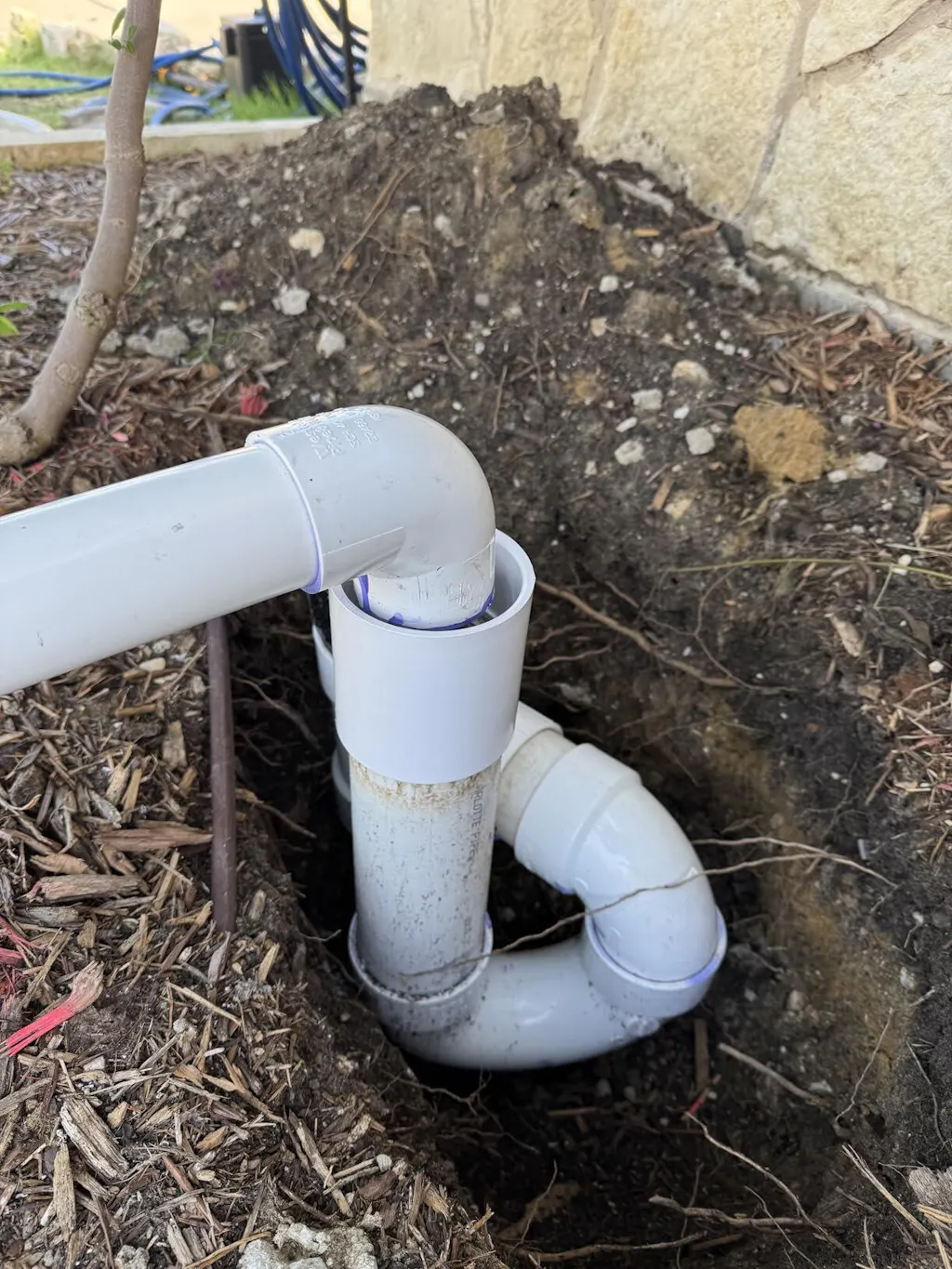

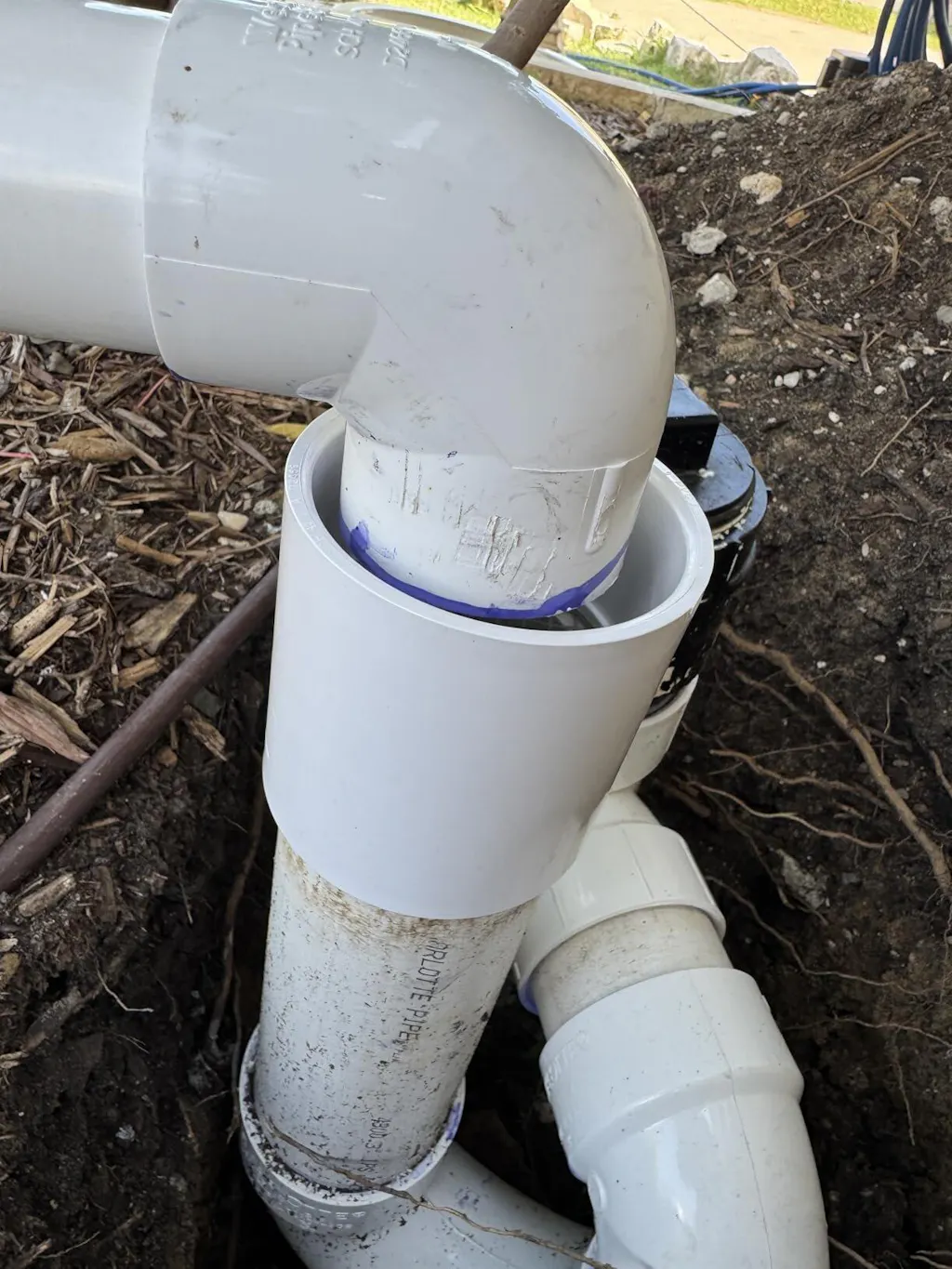

One reviewer used the cap on a pool backwash line with a required air gap and valued being able to remove it for future inspection. That is a customer-reported use, not a blanket approval for every pool or drainage system.
Individual installations vary. Measure the actual pipe and verify the requirements for the furnace, roof termination or other system before ordering.
Read how real outdoor openings become vulnerable in this guide to birds and debris entering PVC vent pipes.
For People Who Measure First and Maintain What Matters
A careful homeowner or installer does not choose a cap because “3 inch” looks close. They confirm the pipe material, measure the outside diameter, check the system instructions and plan to inspect the screen after installation.
That approach brings the real peace of mind: not a promise that outdoor problems can never happen, but confidence that the part was selected for the actual pipe and used within clear limits. LGQF-LL makes practical PVC vent protection for people who prefer a correct fit over a quick guess.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 0 Degree Straight PVC Vent Screen Cap |
| Nominal Pipe Size | 3 Inch |
| Compatible Pipe | Compatible 3 Inch Schedule 40 PVC Pipe |
| Target Actual Pipe OD | Approximately 3.5 Inches |

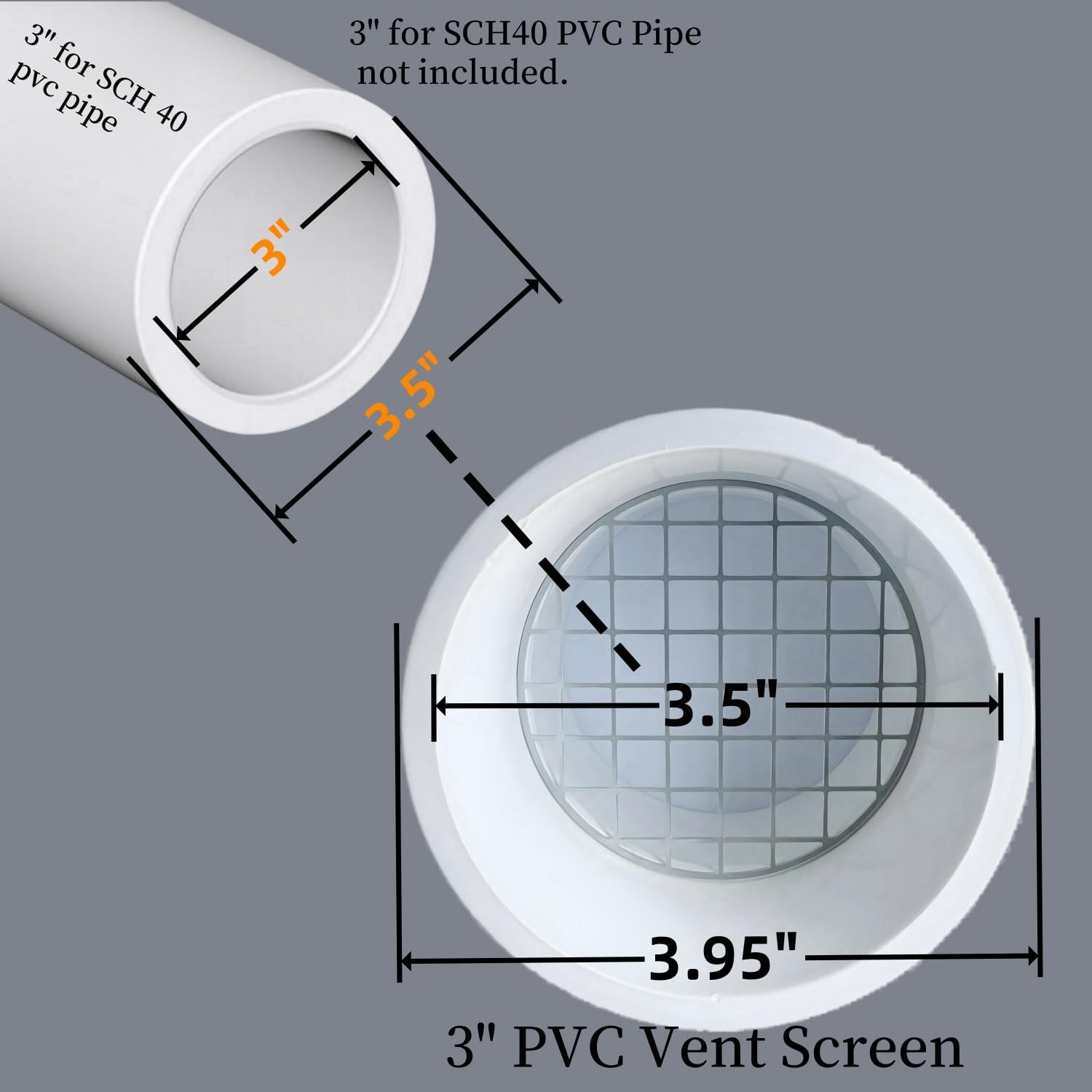

| Approximate Cap Face Width | 3.95 Inches, as shown in the current dimension image |
| Fit Type | Outer-Fit / Slides Over Pipe Exterior |
| Configuration | 0 Degree Straight Screened Outlet |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel Mesh |
| Moisture Feature | Small Drainage Gaps Near the Screened Rim |
| Primary Applications | Compatible Furnace Intake or Exhaust and Approved Vertical PVC Roof Terminations |
| Color | White |
| GTIN / UPC | 081904532019 |
| Amazon ASIN / Shopify SKU | B0DJJM82SW |
Compare Straight and Angled 3 Inch Vent Caps
The right angle depends on the approved termination orientation and the amount of directional weather shielding the location requires.
Learn Before You Install
A screen cap is one component of a complete vent system. These guides explain the problems around the opening and the checks that belong around the product decision:
Frequently Asked Questions
What pipe size does this 3-inch screen cap fit?
It is designed as an outer-fit cap for compatible 3-inch Schedule 40 PVC pipe with an actual outside diameter of approximately 3.5 inches. Measure the existing pipe before ordering.
Does this cap insert inside the pipe?
No. The PVC sleeve slides over the outside of compatible pipe. It is not an insert-style screen.
What does 0 degree mean?
It means the screened face stays aligned with the pipe. The cap does not add a 45-, 90- or 180-degree directional bend.
Can this model be used on a vertical PVC roof termination?
It may be used on a compatible vertical PVC roof termination only when the governing system instructions and local code permit a screened opening. It is not a generic roof vent cover, and the upward-facing screen remains exposed to rain, snow, frost and debris.
Can it be used on furnace intake and exhaust vents?
It is intended for compatible 3-inch PVC furnace intake or exhaust terminations, but the appliance manufacturer must permit the pipe size, orientation and screen. Always follow the furnace installation instructions.
Does the screen provide zero airflow restriction?
No zero-restriction guarantee should be made. Any screen changes the available open area and requires maintenance. Confirm screening permission and airflow requirements for the actual system.
Does this straight cap keep all rain and snow out?
No. A 0-degree outlet does not provide the directional weather shielding of a downward-facing 45- or 90-degree model. The selected system must permit the orientation and expected weather exposure.
Do the drainage gaps prevent freezing?
No. The gaps provide a path for incidental moisture but cannot guarantee that frost or ice will not form. Temperature, condensation, wind, placement and system operation all matter.
Can this be used on a pool backwash line?
A customer reported a successful removable installation on a 3-inch PVC pool backwash line with an air gap. Treat that as one real use case, not universal approval. Verify the pool-system design, local requirements and required water flow before installation.
Is it compatible with a 4-inch metal pipe or metal duct?
This page makes no such compatibility claim. The documented fit is compatible 3-inch Schedule 40 PVC pipe measuring approximately 3.5 inches OD. Do not order it for metal pipe or duct based only on a similar measurement.
Should the cap be glued to the pipe?
Follow the appliance, vent-system and local installation requirements. Do not apply adhesive or permanently modify a serviceable termination unless the applicable instructions permit it.
The Right Cap Starts With the Actual Pipe
Confirm compatible Schedule 40 PVC, measure approximately 3.5 inches across the pipe exterior and verify that a straight screened termination is permitted. Those checks make the purchase easier to trust.
Price: $16.99 USD
Important Installation Notice
Always follow the furnace, appliance or vent-system manufacturer’s instructions, local building requirements, screening rules, airflow limits, allowable vent length, weather-exposure guidance and termination clearances. Keep the screen accessible for periodic inspection, and remove external accumulation only when the connected system is safely shut down and its maintenance instructions permit access.
