Need to Turn an Upward 3 Inch PVC Termination Back Down?
An upward-facing PVC pipe can leave its opening directly exposed to birds, rodents, insects, leaves and weather. Adding separate fittings may create more joints and still leave the customer unsure whether the final outlet is protected or correctly sized.

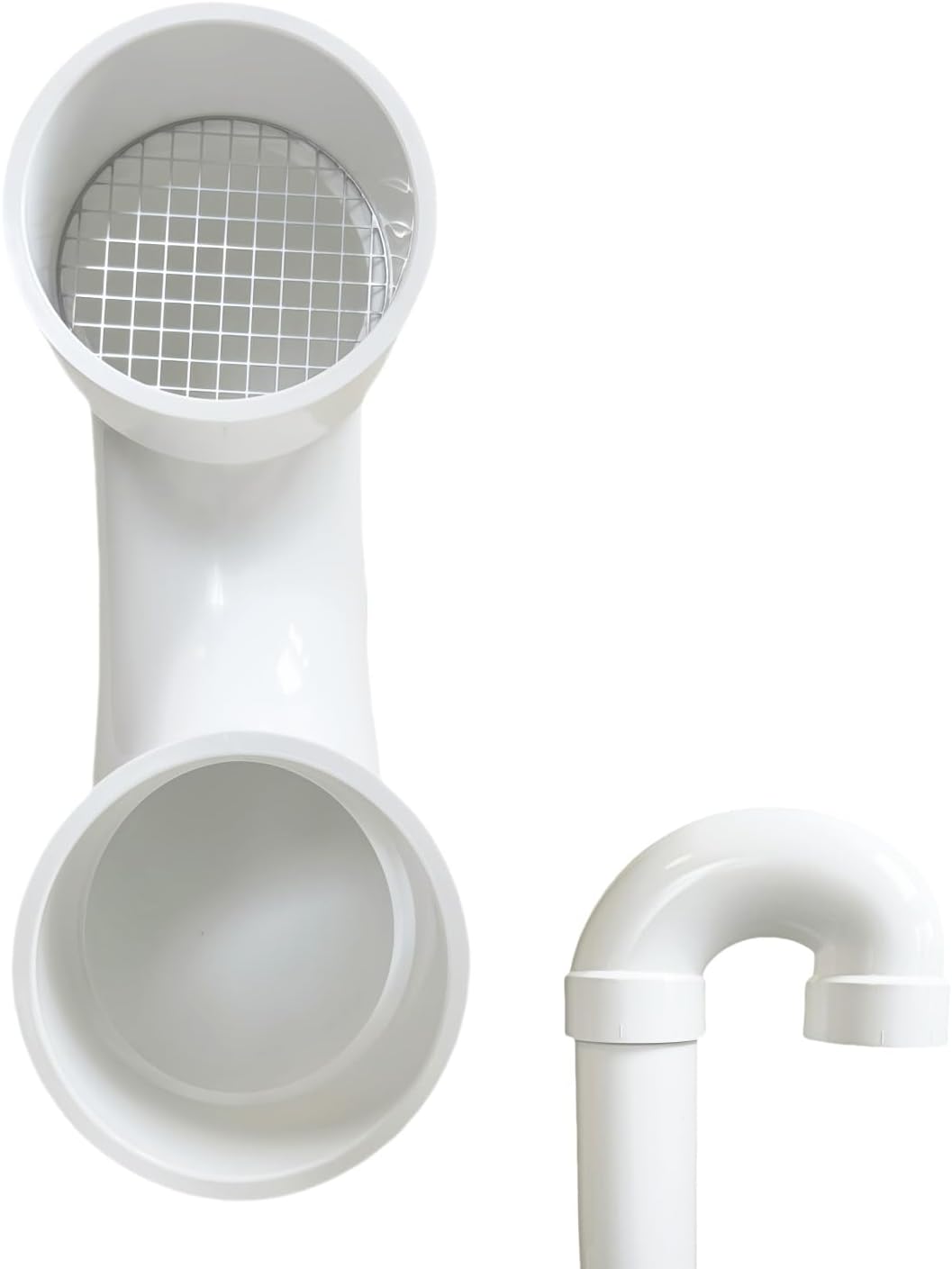

The LGQF-LL 3 Inch 180 Degree U-Bend PVC Vent Cap combines a return-bend body, lower outer-fit socket, fixed 304 stainless steel screen and low-point drainage opening. It turns the termination outlet downward beside the incoming pipe when this configuration is permitted.
- 180 Degree U-Bend / Return Bend configuration
- Downward-facing screened outlet beside an upward vertical pipe
- Outer-fit lower socket for compatible pipe measuring approximately 3.5 inches OD
- Designed around 3-inch Schedule 40 and dimensionally compatible DWV PVC
- Fixed 304 stainless steel screen helps deter pests and larger outdoor debris
- Low-point opening gives incidental moisture a path out of the outlet body
See the U-Bend Structure Before Ordering
The return bend changes the outlet direction by 180 degrees. It needs overhead and side clearance, and its screened opening returns beside the incoming pipe. This shape is different from a straight cap, a 90 degree cap and a plumbing trap.
Confirm Diameter, Vertical Orientation and Clearance

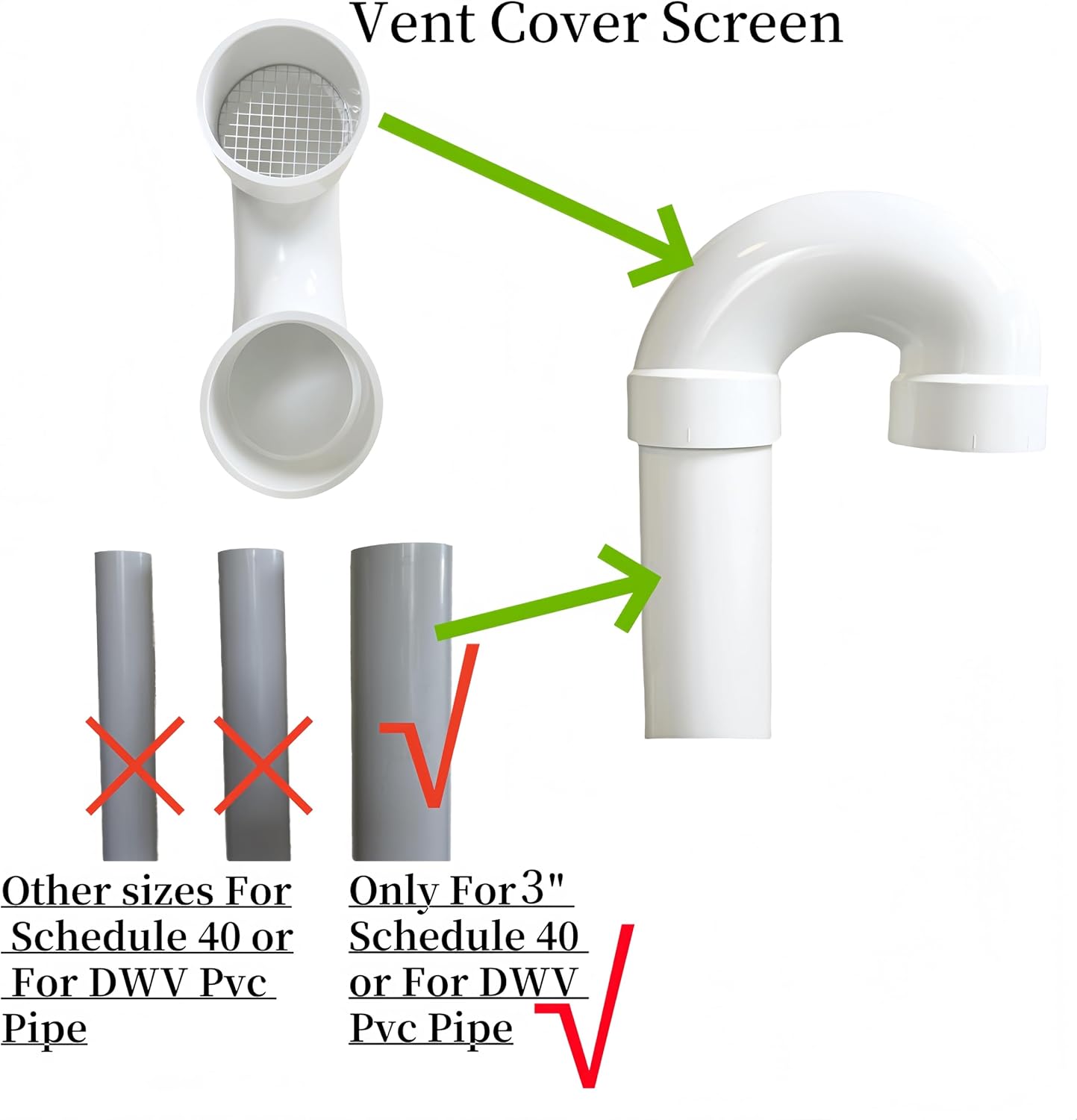

1. Identify the Pipe
Confirm compatible 3-inch Schedule 40 or dimensionally compatible DWV PVC—not metal duct or flexible hose.

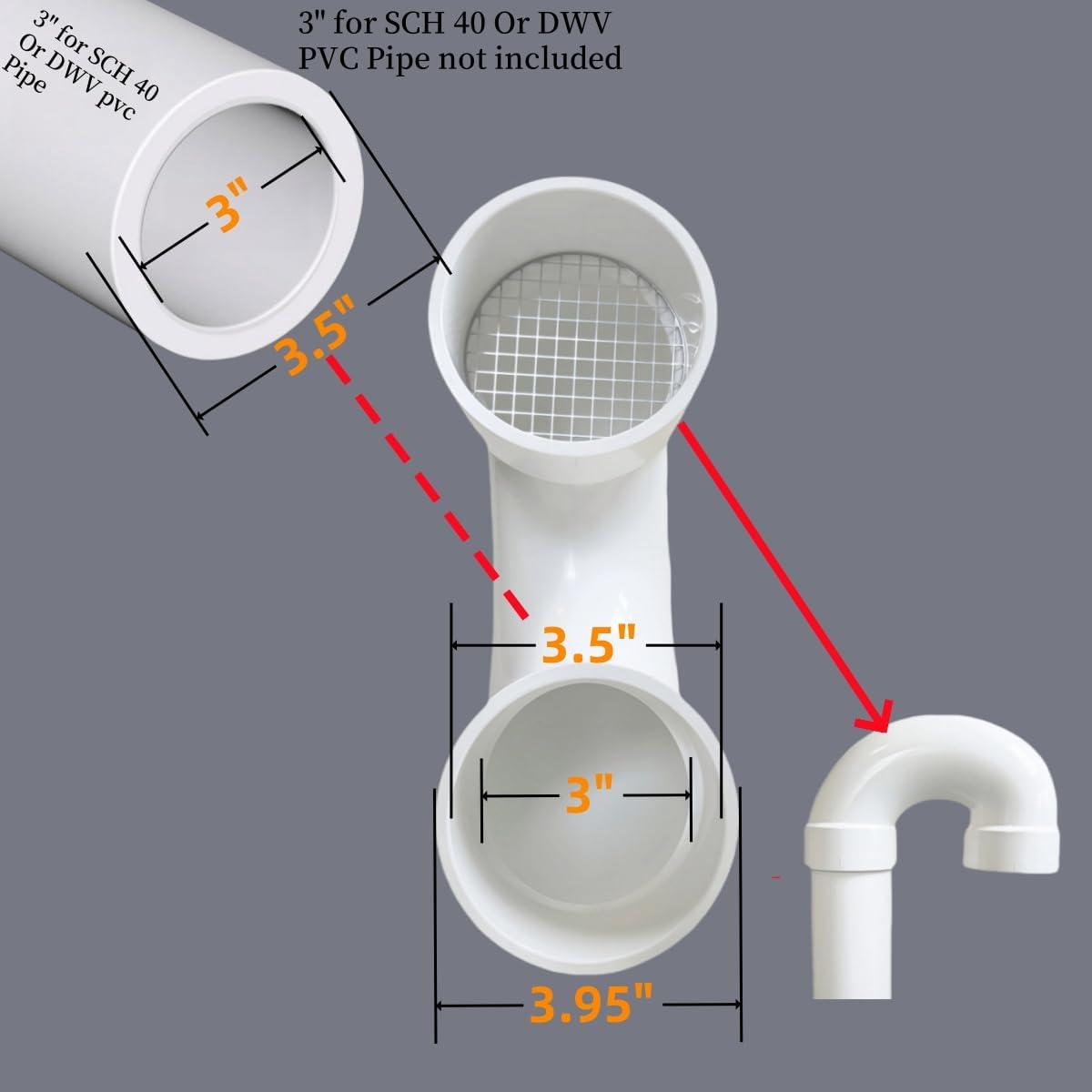

2. Measure the Outside
Measure straight across the pipe’s outside diameter. The expected OD is approximately 3.5 inches.
3. Check the Return Space
Confirm clearance above and beside the pipe for the complete bend, downward outlet, required separation and future screen inspection.
“3 inch” is the nominal pipe size. This outer-fit cap is selected by the actual outside diameter. Do not use the pipe’s inside opening as the fit measurement.
Use the U-Bend Only Where the System Permits It
Permitted Vertical Furnace Termination
A compatible vertical furnace intake or exhaust pipe may use this return-bend configuration only when the appliance manufacturer permits the bend, screen, outlet direction, equivalent vent length and required clearances.
Permitted Vertical PVC Roof Termination
The cap may be used only on a compatible PVC roof termination whose system instructions and local requirements permit a 180 degree screened outlet. It does not replace flashing, a roof boot or waterproofing around the penetration.
What Each Part Is Designed to Do

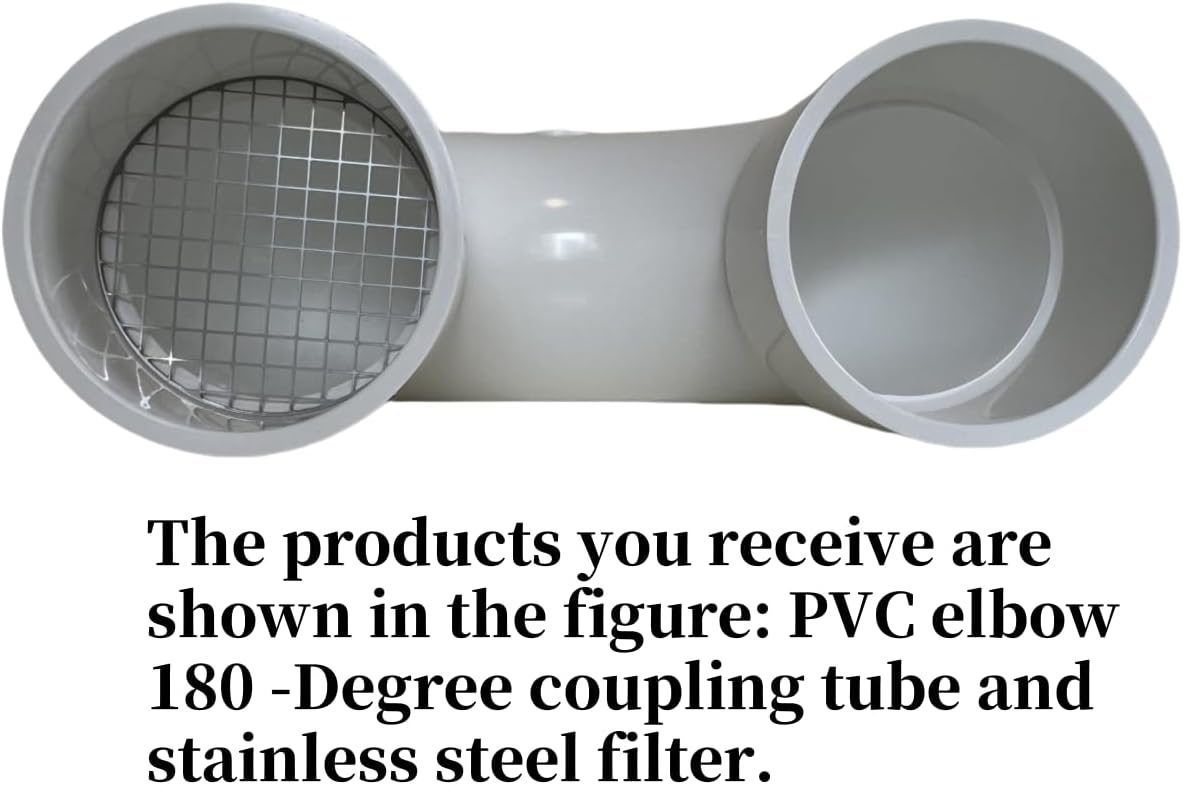

180 Degree Return-Bend Body
The curved body turns the termination outlet back downward beside an upward-facing pipe. It does not function as a water trap or valve.
Downward-Facing Outlet
The returned outlet reduces direct exposure compared with an uncovered upward opening. It cannot guarantee exclusion of wind-driven rain, snow, frost or insects.
304 Stainless Steel Screen
The fixed mesh helps deter birds, rodents, insects, leaves and larger outdoor debris while keeping the termination visibly open.
Low-Point Drainage Opening
A small opening provides a path for incidental moisture reaching the outlet body. It does not replace system condensate management or guarantee freeze prevention.
Outer-Fit Lower Socket
The lower socket pushes over compatible PVC pipe measuring approximately 3.5 inches OD. Verify the physical fit before any permanent installation step.
Open, Serviceable Screen
The screened end is the final outlet. Do not attach another pipe to it, and keep it accessible for inspection and maintenance.
Know the Safety Boundary
A vent termination is part of a complete appliance or building system. This accessory cannot override manufacturer instructions, engineering requirements or local code.
- Use only on a compatible upward-facing vertical PVC termination when a 180 degree screened return bend is permitted.
- Do not assume it is correct for a horizontal sidewall pipe; the return outlet may face back toward the wall or violate required clearances.
- Do not connect another pipe, cover or valve to the screened outlet.
- Do not use it as a sealed end cap, P-trap, backdraft damper, check valve or backflow device.
- Do not use it on metal ductwork, flexible dryer duct or an incompatible pipe diameter.
- It is not a roof fan, flashing, pipe boot, ridge vent or soffit-ventilation product.
- This listing is not positioned as a drainage, pool, sump or sewer-system fitting.
- Do not assume the screen creates zero restriction or that the drainage opening prevents freezing.
- Confirm bend allowance, screening permission, airflow, equivalent vent length, outlet separation and clearances.
- Keep the screened outlet visible and accessible for periodic inspection.
What Real Installations Teach Before Checkout
The first mistake is treating every exposed PVC pipe as interchangeable. A U-Bend makes sense only when the existing termination points upward and the finished screened outlet is permitted to return downward beside it.
The second is ordering from the “3 inch” label without measuring. Nominal 3-inch PVC is approximately 3.5 inches across the outside, and the outer-fit socket must match that outside dimension.
The third is checking fit but forgetting space. The return bend needs overhead height, side clearance, separation from nearby openings and enough access to inspect the screen. Identify the system, measure the pipe, check the surrounding space and confirm the instructions before ordering.
See documented homeowner PVC vent protection problems and solutions and learn why birds and outdoor debris enter exposed PVC terminations.
For People Who Measure First and Maintain the Whole System
A U-Bend cap is a small part, but it changes the final direction of an important vent opening. The goal is not to create the tightest cover. It is to choose a permitted return-bend termination, confirm the outside diameter and leave the screened outlet open and serviceable.
Careful homeowners and installers identify the pipe orientation, measure the actual OD, check the return-bend clearance and read the system instructions. LGQF-LL makes those decision points visible so the purchase is based on the installation—not guesswork.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 180 Degree U-Bend / Return Bend PVC Vent Cap |
| Nominal Pipe Size | 3 Inch |
| Compatible Pipe OD | Approximately 3.5 Inches; Measure Before Ordering |
| Fit Type | Outer-Fit / Push-On Lower Socket |
| Compatible Pipe | Compatible 3 Inch Schedule 40 or Dimensionally Compatible DWV PVC |
| Configuration | 180 Degree U-Bend / Return Bend |
| Recommended Pipe Orientation | Compatible Upward-Facing Vertical PVC Termination |
| Outlet Direction | Downward Beside Incoming Pipe |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel Mesh |
| Drainage Feature | Low-Point Opening for Incidental Moisture |
| Compatible Applications | Permitted Vertical Furnace and Approved PVC Roof Termination Configurations |
| Color | White |
| GTIN / UPC | 037936449061 |
| SKU / Amazon ASIN | B0DYJCHM53 |
Compare the 3 Inch Vent Cap Shapes
The U-Bend returns the outlet downward beside a vertical pipe. A 90 Degree model turns the outlet sideways from a vertical pipe, while the 0 and 45 Degree models leave the outlet closer to the original pipe direction. The applicable system determines which geometry is permitted.
Learn Before You Install
Pipe orientation, allowable screening, airflow, condensation, frost, snow level, roof exposure and termination clearance must be considered as part of the complete system.
Frequently Asked Questions
What pipe does this 3 inch U-Bend vent cap fit?
It is designed for compatible 3-inch Schedule 40 or dimensionally compatible DWV PVC pipe measuring approximately 3.5 inches outside diameter. Measure the actual pipe before ordering.
Does the U-Bend insert inside the pipe?
No. The lower socket is an outer-fit connection that pushes over the outside of a compatible pipe.
What does 180 degree U-Bend or return bend mean?
It means the curved body reverses the outlet direction so the screened opening faces downward beside an upward-facing pipe.
Is this the same as a plumbing P-trap?
No. It is an open screened PVC termination accessory. It is not intended to hold a water seal or function as a plumbing trap.
Can another PVC pipe be connected to the screened end?
No. Only the lower outer-fit socket connects to the existing pipe. The screened end is the final open termination outlet.
Can it be used on a horizontal sidewall furnace pipe?
Do not assume so. On a horizontal pipe, the 180 degree return may point the outlet back toward the wall or violate required separation. Use only when the appliance instructions explicitly permit that orientation and all clearances can be met.
Can it be used for a vertical furnace intake or exhaust pipe?
Only when the appliance manufacturer permits a vertical 180 degree screened termination. Confirm screening, equivalent vent length, airflow, outlet separation and all required clearances.
Can this model be installed on a PVC roof termination?
Only when the applicable system instructions, roof configuration and local requirements permit this outer-fit 180 degree screened termination. It does not replace the flashing or waterproofing around the roof penetration.
Does the downward-facing outlet completely keep out rain and snow?
No outdoor termination can guarantee that under every weather condition. The returned outlet reduces direct exposure compared with an uncovered upward opening, but wind, snow, frost and location still matter.
Does the screen create zero airflow restriction?
No such guarantee should be made. Any screen and bend can affect a vent system. Verify screening permission, allowable vent length and airflow requirements for the actual system.
Does the drainage opening prevent freezing?
No. It gives incidental moisture reaching the outlet body a path out, but it cannot guarantee prevention of frost or ice. Weather, condensation, orientation and system operation all matter.
Is this a backdraft damper, check valve or backflow device?
No. It is a fixed screened return-bend termination with no moving valve or damper mechanism.
How much space does the U-Bend require?
Check the complete product dimensions shown in the gallery and compare them with the available height, side clearance, nearby openings, snow level and service access. Do not order from pipe diameter alone.
Should the cap be glued to the pipe?
Follow the applicable appliance or system instructions and local requirements. Do not use adhesive or permanently modify the termination unless those instructions permit it.
Measure the Pipe. Confirm the Vertical Termination. Then Choose the U-Bend.
Confirm compatible PVC, measure approximately 3.5 inches OD, allow room for the complete return bend and verify that a 180 degree screened termination is permitted.
Price: $28.99 USD
Important Installation Notice
Always follow the appliance, system or pipe manufacturer’s instructions and applicable local requirements. Confirm allowable bend configuration, screening, airflow, equivalent vent length, orientation, weather exposure, roof clearances, outlet separation and inspection access before installation. Inspect the mesh periodically and remove exterior accumulation only when the connected system can be accessed safely under its maintenance instructions.
