Need More Weather Direction Than a Straight Screen—but Less Turn Than a 90° Cap?
An open PVC termination can admit birds, rodents, insects, leaves and windblown debris. A straight 0-degree screen keeps the opening exposed in the original direction, while a 90-degree cap makes a full turn. The LGQF-LL 3 Inch 45 Degree Short Sweep PVC Vent Cap offers a compact middle option for an approved termination with limited clearance.
- Designed for compatible 3-inch Schedule 40 PVC pipe
- Socket-fit connection for pipe measuring approximately 3.5 inches outside diameter
- Compact 45-degree short-sweep body requires less space than the long-sweep model
- Integrated 304 stainless steel screen helps deter pests and larger debris
- Angled outlet can help reduce direct weather exposure when correctly oriented
- No separate 45-degree elbow is required at the final cap connection
The Short Bend Is the Feature—Not Just the Angle

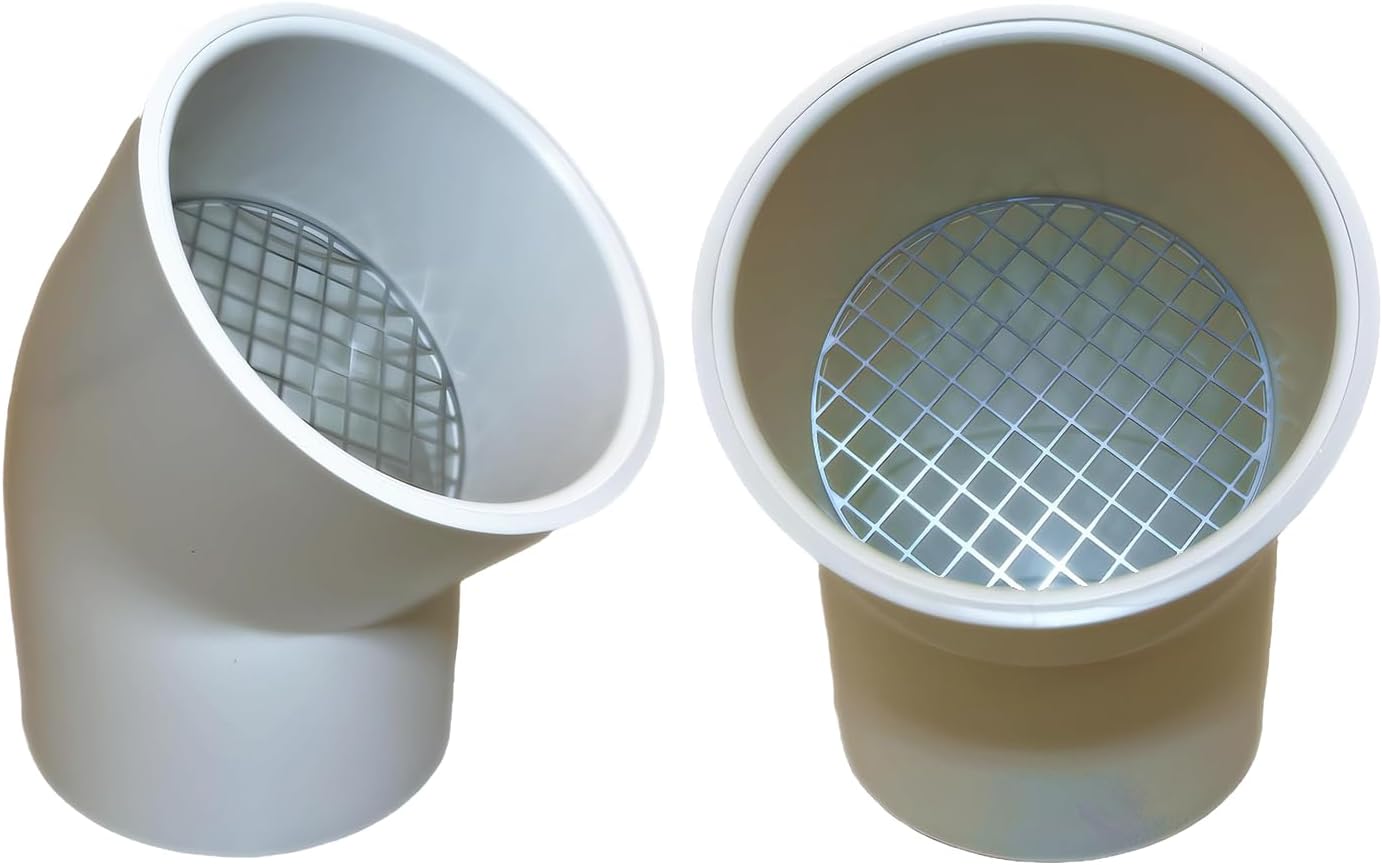

This is the compact 45-degree short-sweep model. Its tighter bend uses less clearance than the separate 45-degree long-sweep cap. The product photographs below show the actual bend, socket and screened outlet rather than asking you to decide from the title alone.
Three Checks Matter More Than the Nominal Label

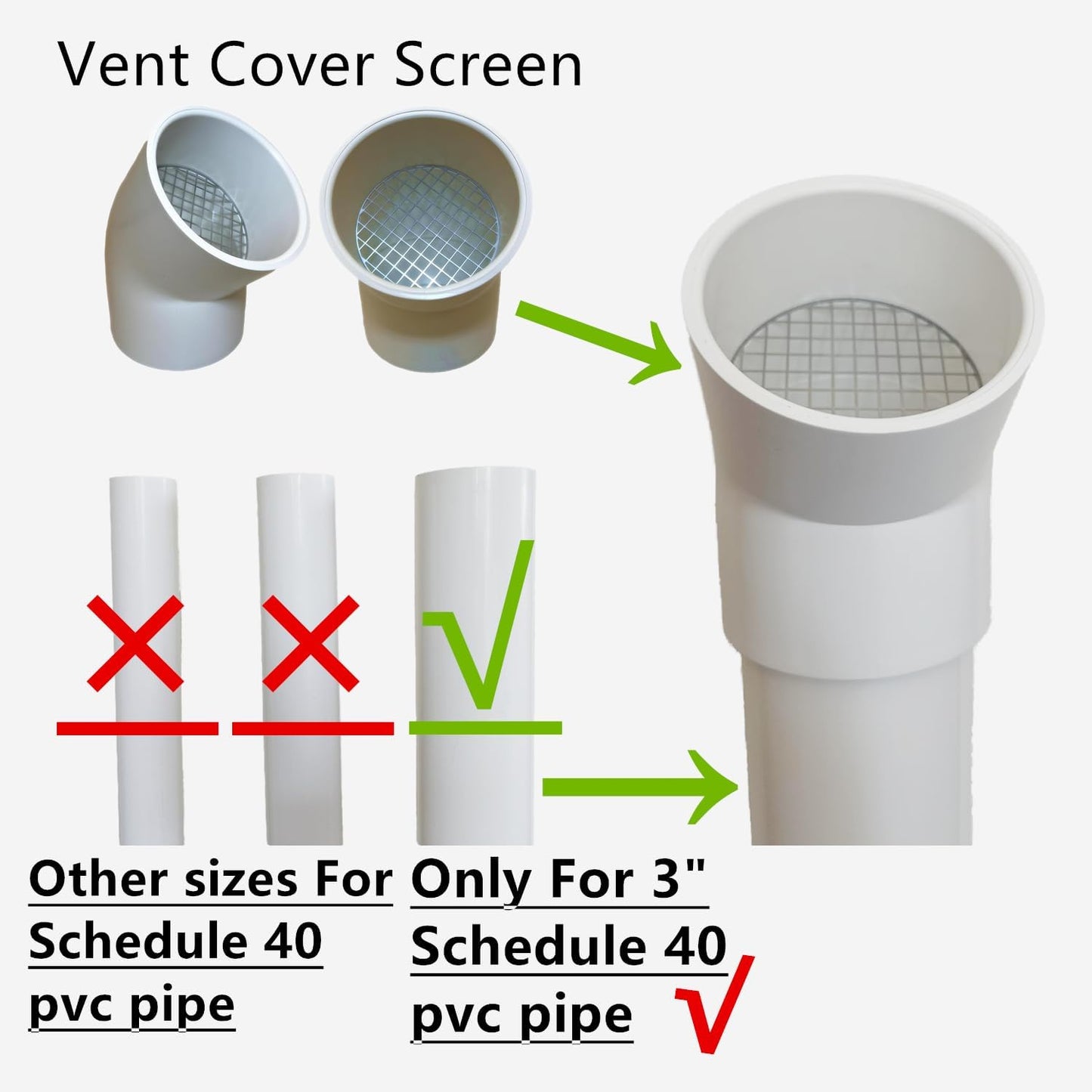

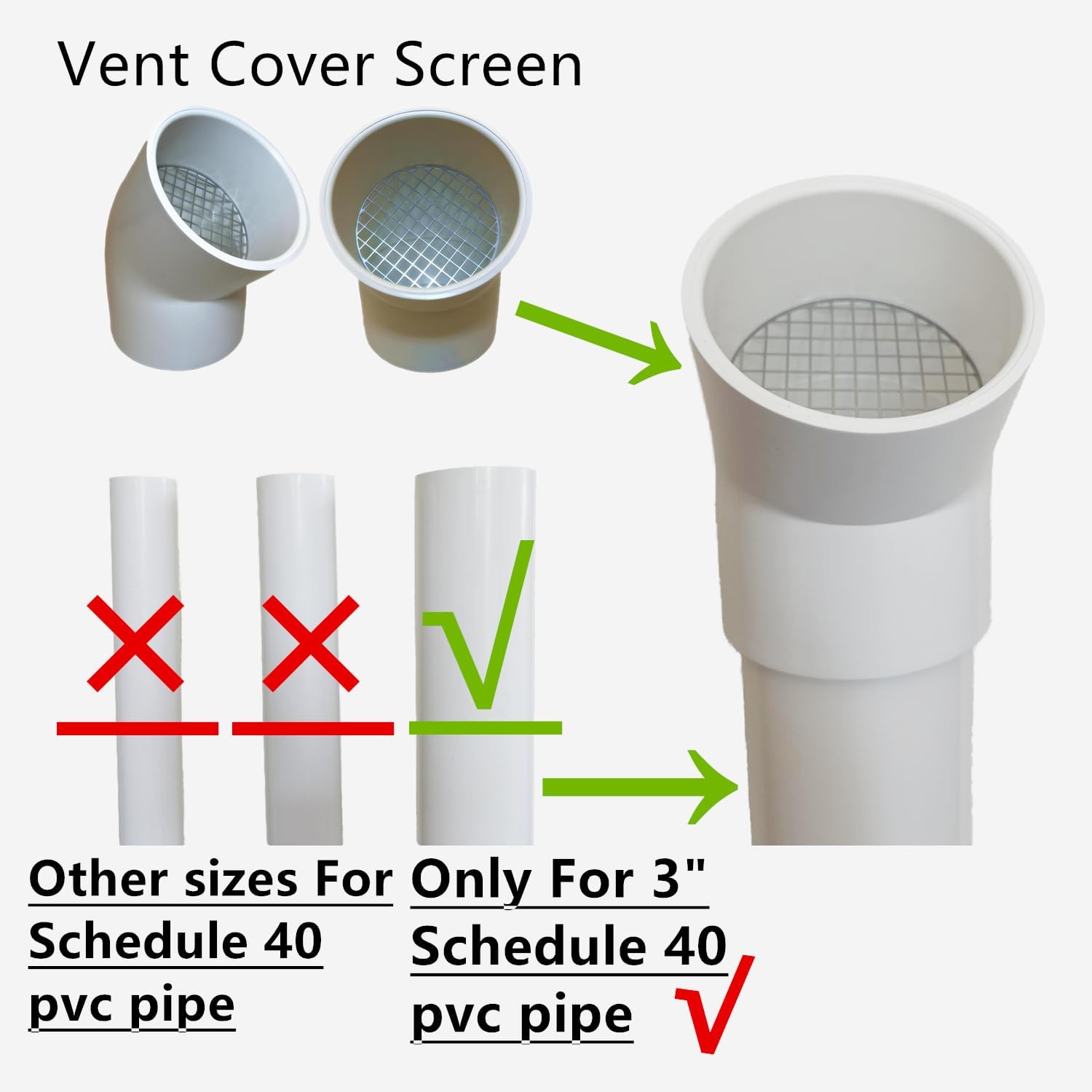

1. Confirm the Pipe
Verify compatible 3-inch Schedule 40 PVC—not metal duct, flexible hose or thin-wall pipe.

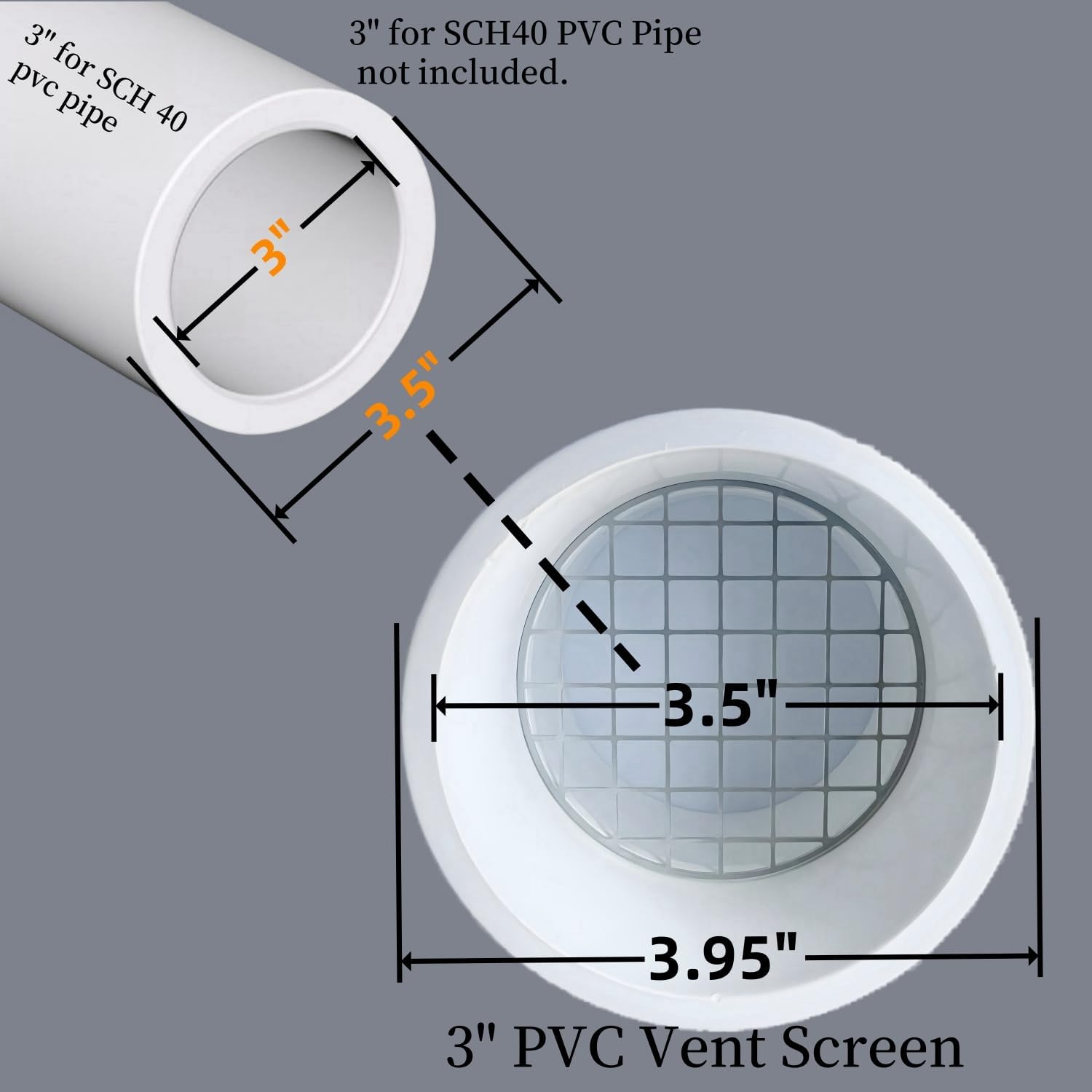

2. Measure the OD
Measure straight across the pipe exterior. The target outside diameter is approximately 3.5 inches.
3. Confirm the Bend
Check that the system permits a compact 45-degree screened termination and that the installation has enough clearance.
“3 inch” is the nominal pipe size. Actual pipe OD, material and permitted fitting configuration determine compatibility.
What This 45-Degree Short Sweep Actually Provides

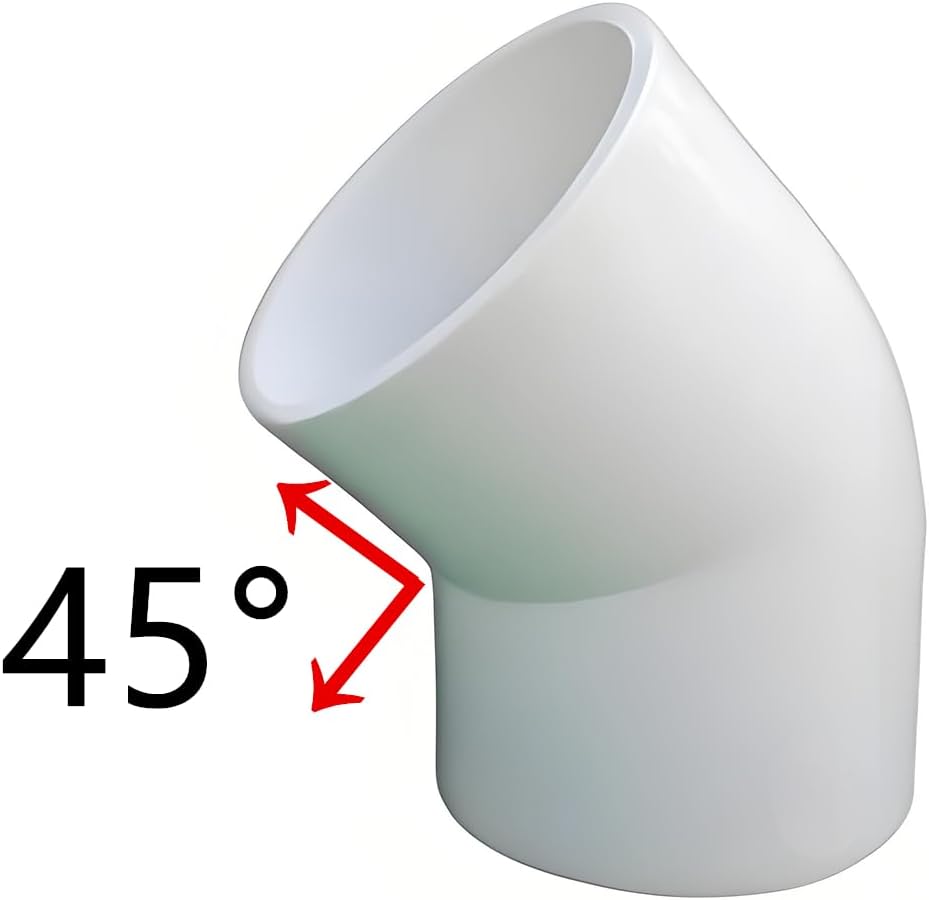

Compact 45° Direction Change
The short-sweep body angles the outlet without taking the space required by a wider-radius long sweep. It is intended for approved installations where clearance is limited.

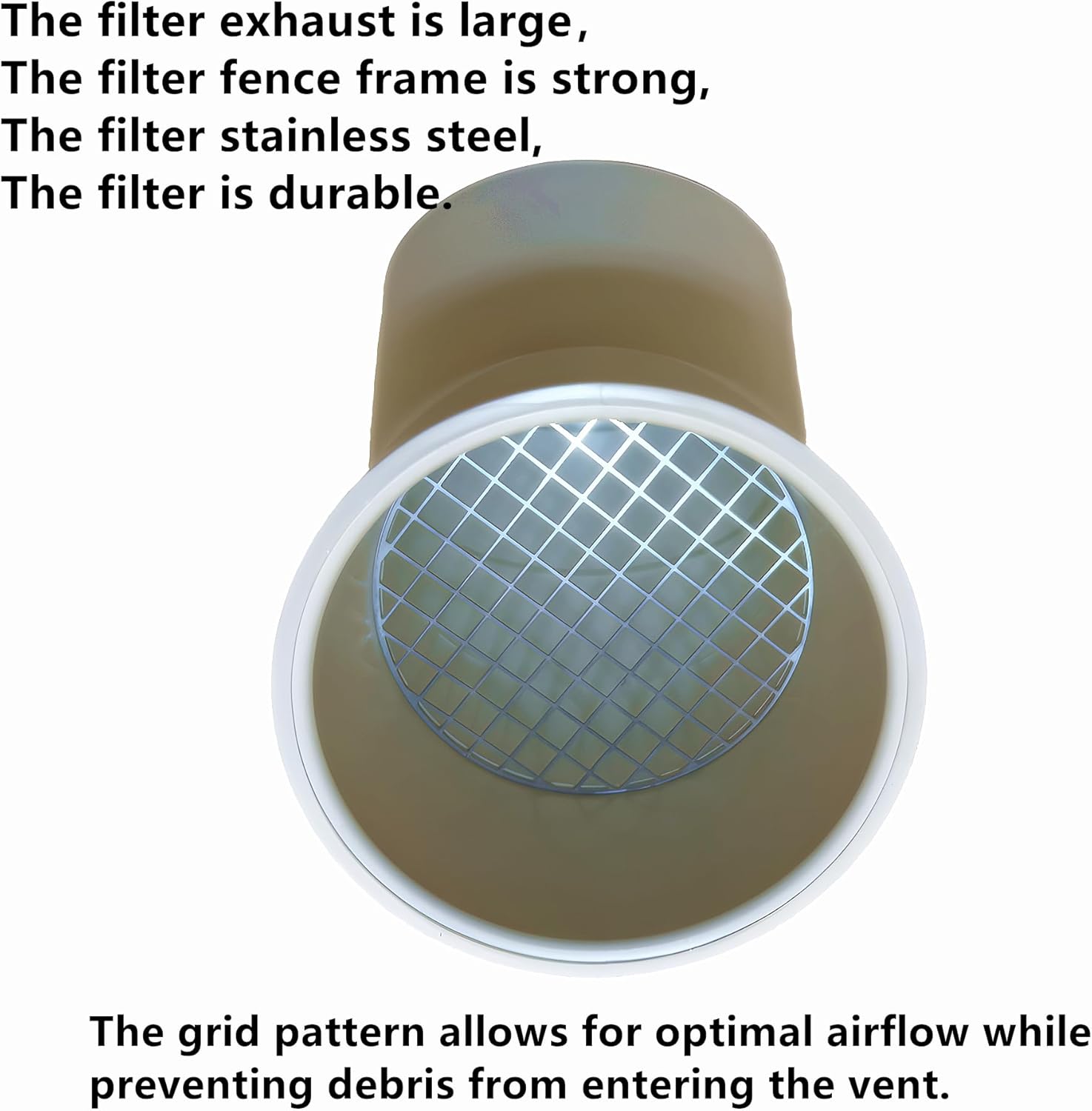

304 Stainless Steel Screen
The fixed screen helps deter birds, rodents, insects, leaves and larger debris. It is not a fine-particle filter, damper or closing valve.
Angled Weather Exposure
When the outlet is oriented downward as permitted, the 45-degree angle helps reduce direct exposure compared with a bare opening. It does not make the termination rainproof.

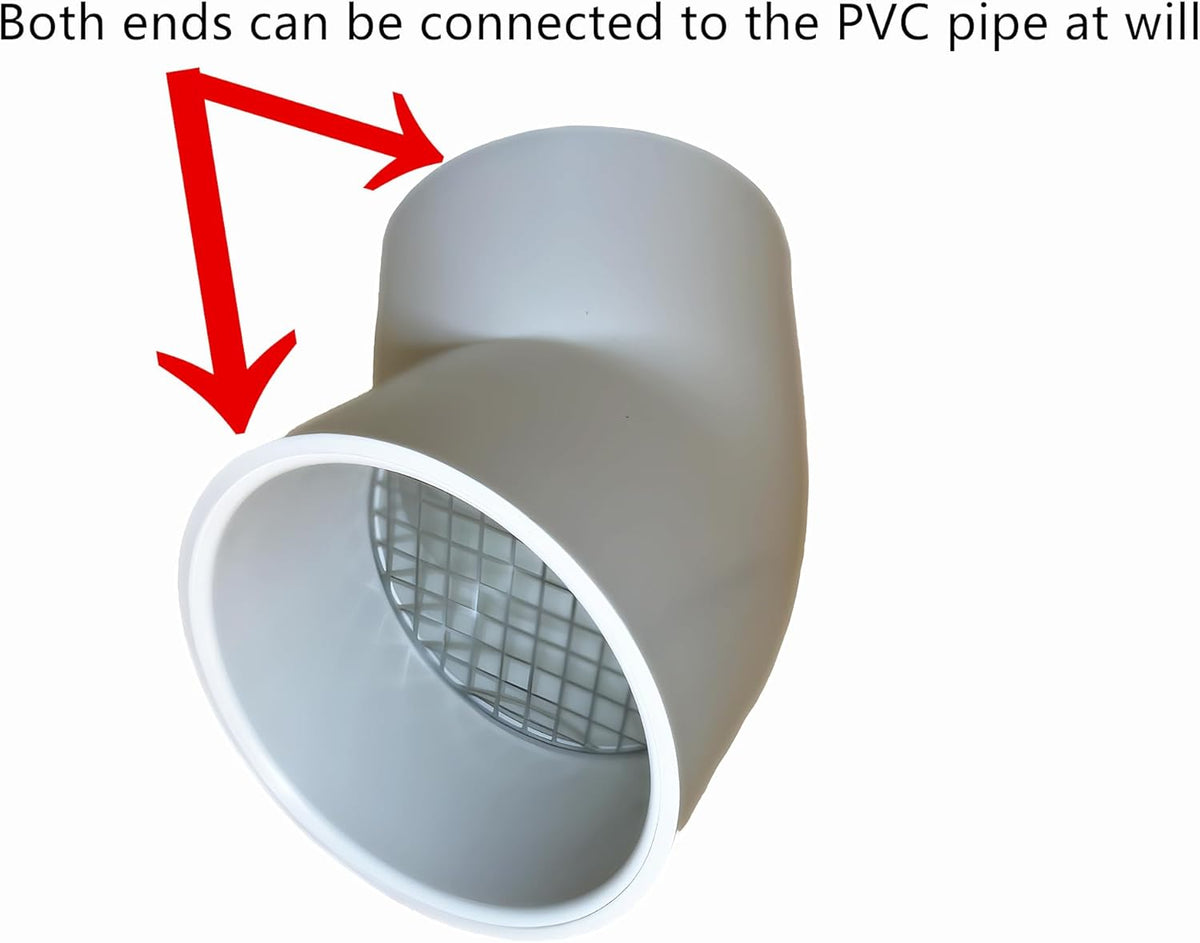

Integrated Socket Connection
The pipe enters the lower hub, so the final 45-degree turn and screen are supplied in one accessory without a separate elbow at the cap connection.
Short Sweep and Long Sweep Are Not Interchangeable Names
This Short-Sweep Model
Uses a tighter 45-degree bend and smaller footprint. Choose it when the approved termination needs a compact direction change.
The Separate Long-Sweep Model
Uses a wider bend radius and requires more clearance. Its product page and search intent are kept separate so customers can choose by actual geometry.
Wall and Roof Installations Need Different Checks
Horizontal Sidewall Pipe
The cap can be rotated so the screened opening angles downward. Confirm required clearances from grade, snow, doors, windows and nearby terminations.
Vertical PVC Roof Pipe
The 45-degree body angles a vertical outlet away from straight up. Use it only when the governing system instructions and local code permit this screened PVC roof-termination configuration.
Balanced Protection Does Not Mean Universal Compatibility
This cap must match the connected appliance or vent system. Those instructions determine the permitted pipe size, bend radius, screening, equivalent vent length, outlet direction, clearance and maintenance.
- For furnace intake or exhaust, confirm that the manufacturer permits a 45-degree short-sweep screened termination.
- For a PVC roof termination, confirm the allowed angle, screening, weather exposure, snow level and service access.
- Do not use it on a flexible dryer vent, exhaust fan duct, chimney, flue, metal duct or incompatible pipe.
- Do not treat it as a sealed end cap, backdraft damper, check valve or backflow-prevention device.
- Do not assume the angled outlet excludes all rain or prevents freezing.
- Keep the screen accessible and inspect it for insects, nesting material, leaves, frost and ice.
An Honest Note About Customer Evidence
The current storefront does not yet display a product-specific review for this exact 3 Inch 45 Degree Short Sweep SKU. We will not move a review from another angle and present it as if it belongs to this product.
Across the current LGQF-LL 3-inch screened-cap family, customers mention straightforward installation, a solid screen and correct fit over the measured pipe. Those comments help explain what buyers care about, but they remain product-family context—not proof for this exact short-sweep model.
For this SKU, rely on the visible 45-degree structure, verified identifiers, approximately 3.5-inch pipe OD requirement and the applicable system instructions. Replace this note with verified product-specific feedback after genuine reviews are collected.
Read a documented homeowner lesson in the real furnace vent blockage review behind LGQF-LL’s protection guides.
For People Who Choose the Shape for the House—not the Other Way Around
A careful homeowner or installer does not order “a 3-inch cap” and hope the angle works. They measure the pipe, look at available clearance, identify the required outlet direction and check the system instructions before installation.
That process creates the real peace of mind: the part was selected for the actual termination, not for a generic product name. LGQF-LL makes practical PVC vent protection for people who value visible construction, accurate fit information and honest limits.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 45 Degree Short Sweep PVC Vent Cap |
| Nominal Pipe Size | 3 Inch |
| Compatible Pipe | Compatible 3 Inch Schedule 40 PVC Pipe |
| Target Actual Pipe OD | Approximately 3.5 Inches |
| Fit Type | Hub / Socket Fit Over Pipe Exterior |
| Configuration | Compact 45 Degree Short-Sweep Screened Outlet |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel |
| Primary Application | Compatible Furnace Intake and Exhaust Terminations |
| Additional Controlled Application | Approved PVC Roof Termination Configuration |
| Separate 45° Elbow Required | No, when this fitting is permitted as the final termination |
| Color | White |
| GTIN / UPC | 081904961451 |
| Amazon ASIN / Shopify SKU | B0DLVN1VPD |
Compare the 3 Inch Termination Shapes
Learn Before You Install
A screened cap is one component of a complete vent system. These guides explain common outdoor problems and the checks that belong around the product decision:
Frequently Asked Questions
What pipe size does this 3-inch 45-degree cap fit?
It is designed for compatible 3-inch Schedule 40 PVC pipe with an actual outside diameter of approximately 3.5 inches. Measure the existing pipe before ordering.
Does the cap insert inside the pipe?
No. The compatible pipe enters the lower socket while the cap hub surrounds the pipe exterior. The screened opening remains unobstructed.
Is this the short-sweep or long-sweep 45-degree model?
This is the compact 45-degree short-sweep model. The separate long-sweep version has a wider bend radius and requires more clearance.
Can it be used for furnace intake and exhaust terminations?
It is intended for compatible 3-inch PVC furnace intake and exhaust terminations, but only when the appliance manufacturer permits the pipe size, short-sweep 45-degree fitting and screened outlet.

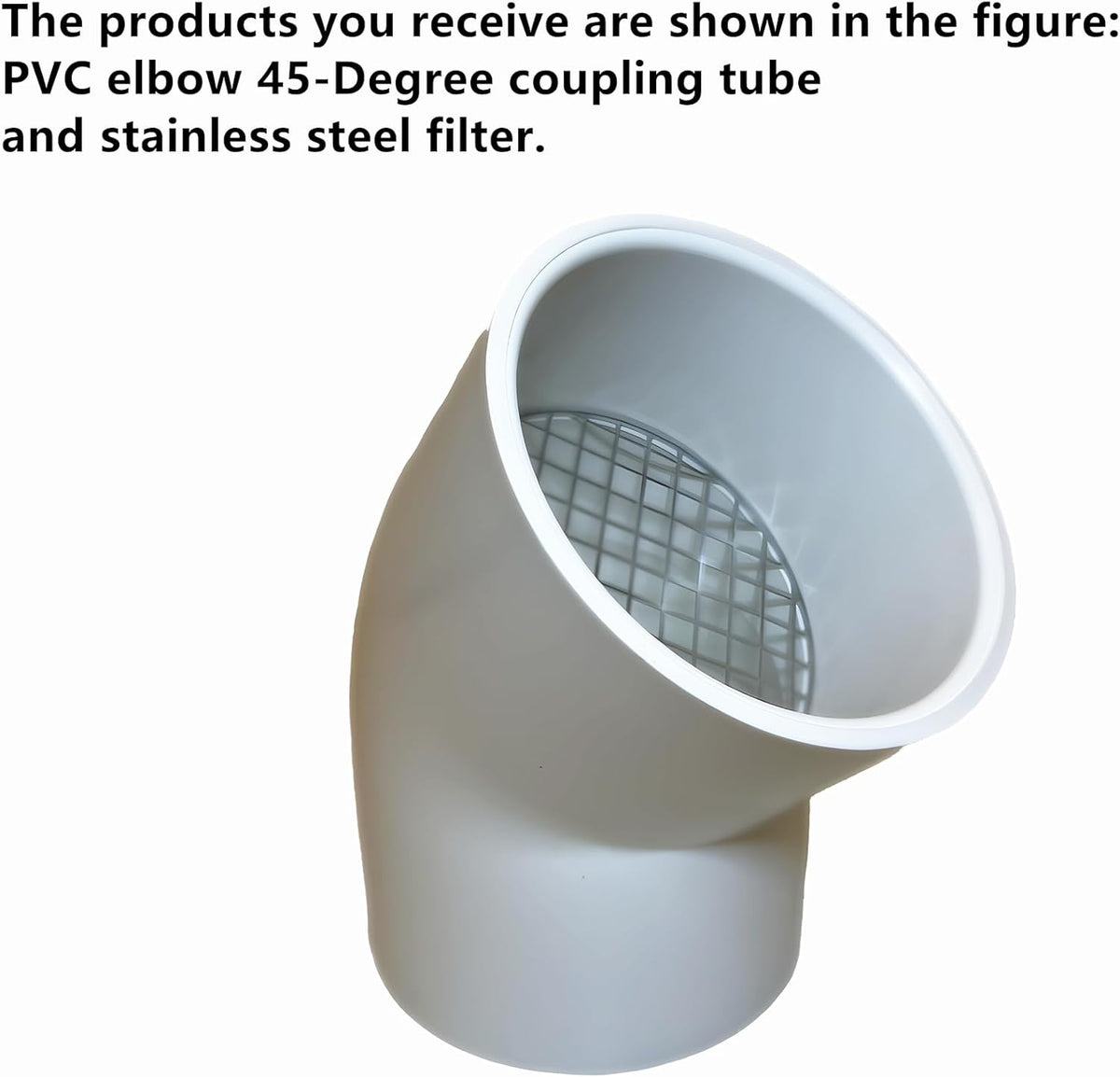

Does it replace a separate 45-degree elbow and screen?
The product combines the final 45-degree fitting and fixed screen in one accessory. Whether it may replace an existing fitting must be confirmed in the appliance or vent-system instructions.
Can this model be used on a PVC roof termination?
It may be used only when the applicable system instructions and local code permit a 45-degree screened PVC roof-termination configuration. It is not a generic roof vent cover.
Does the angled outlet completely stop rain or snow?
No. When oriented as permitted, the 45-degree outlet helps reduce direct exposure compared with a bare opening, but it cannot guarantee complete weather exclusion.
Does the screen provide zero airflow restriction?
No zero-restriction guarantee should be made. Any bend and screen can affect a vent system. Confirm screening permission, equivalent vent length, airflow and maintenance requirements.
Does this cap prevent freezing?
No. Frost and ice depend on temperature, condensation, wind, placement, outlet orientation and system operation. Inspect the screen during freezing weather.
Can it be installed on a dryer vent or exhaust-fan duct?
No such use is claimed on this page. Do not install it on flexible dryer duct, metal fan duct or an incompatible vent system.
Should the cap be glued to the pipe?
Follow the appliance, vent-system and local installation requirements. Do not apply adhesive or permanently modify the termination unless the applicable instructions permit it.
Choose the Short Sweep When Space and Angle Both Matter
Confirm compatible Schedule 40 PVC, measure approximately 3.5 inches across the pipe exterior and verify that the compact 45-degree screened fitting is permitted. Those checks make the purchase easier to trust.
Price: $18.99 USD
Important Installation Notice
Always follow the furnace, appliance or vent-system manufacturer’s instructions, local building requirements, screening rules, airflow limits, equivalent vent length, weather-exposure guidance and termination clearances. Keep the screen accessible for periodic inspection, and remove external accumulation only when the connected system is safely shut down and its maintenance instructions permit access.
