Need to Turn a 3 Inch PVC Termination 90 Degrees Without Building a Separate Elbow Assembly?
An exposed PVC termination can give birds, rodents, insects, leaves and windblown debris a direct path into the pipe. Some installations also need the opening turned fully away from the original pipe direction, with enough room for a wider curve.
The LGQF-LL 3 Inch 90 Degree Long Sweep PVC Vent Cap combines the curved body, lower outer-fit socket, fixed 304 stainless steel screen and low-point drainage opening in one termination accessory. It is designed for correctly sized PVC pipe where this screened 90 degree configuration is permitted—not as a universal plumbing elbow or general roof-vent product.
- 90 Degree Long Sweep configuration with a wider bend radius

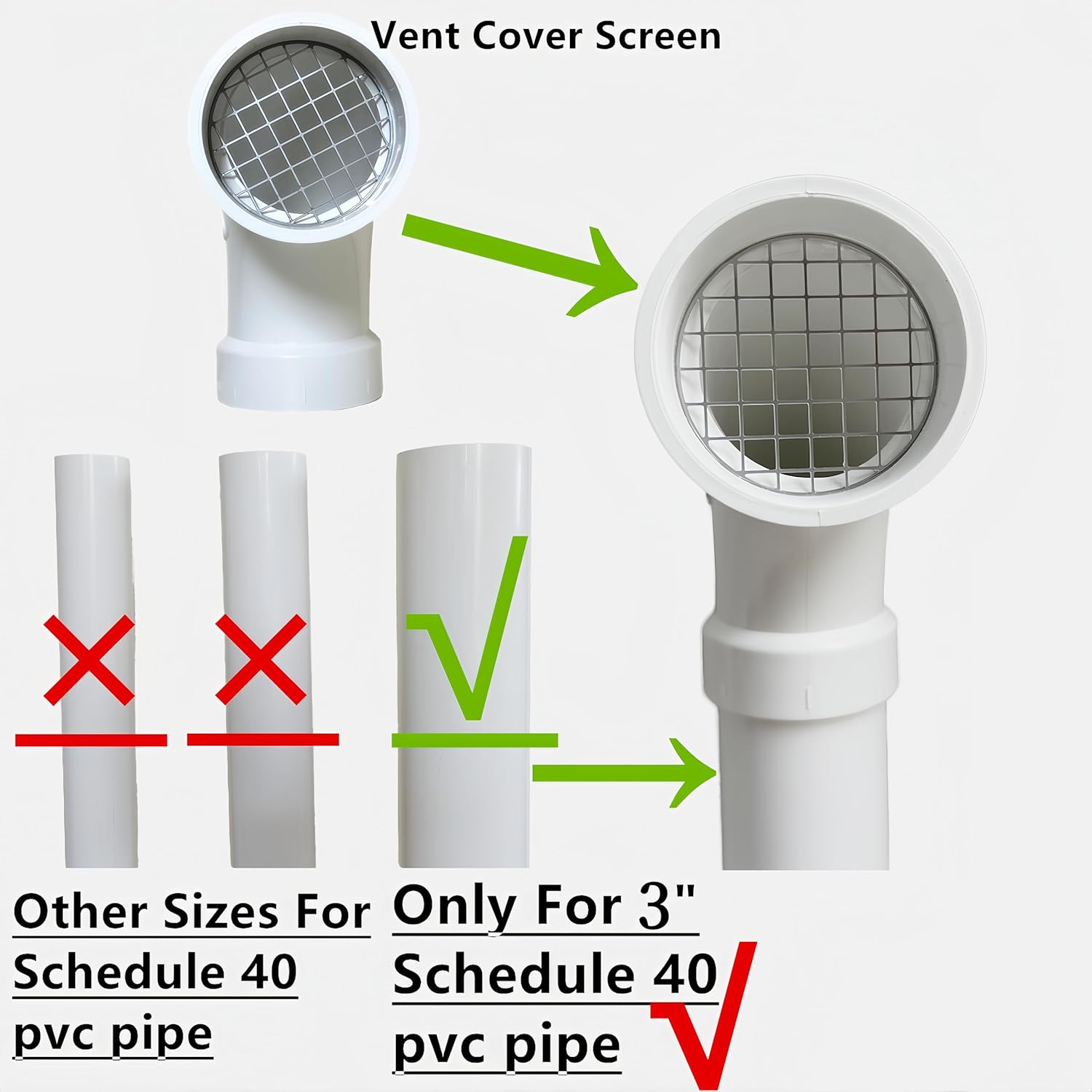

- Outer-fit lower socket for compatible pipe measuring approximately 3.5 inches OD
- Designed around 3-inch Schedule 40 and dimensionally compatible DWV PVC
- Fixed 304 stainless steel screen helps deter pests and larger outdoor debris
- Low-point opening gives incidental moisture a path out of the body
- Applicable to permitted furnace terminations and approved PVC roof configurations
See the 90 Degree Long-Sweep Structure
This model is different from the separate compact Standard 90 Degree cap. Its wider curve requires more room. “Long sweep” describes the product’s shape; it is not a promise of a specific airflow rate, reduced pressure or improved appliance efficiency.
Confirm Diameter, Orientation and Clearance
1. Identify the Pipe
Confirm compatible 3-inch Schedule 40 or dimensionally compatible DWV PVC—not metal duct or flexible hose.

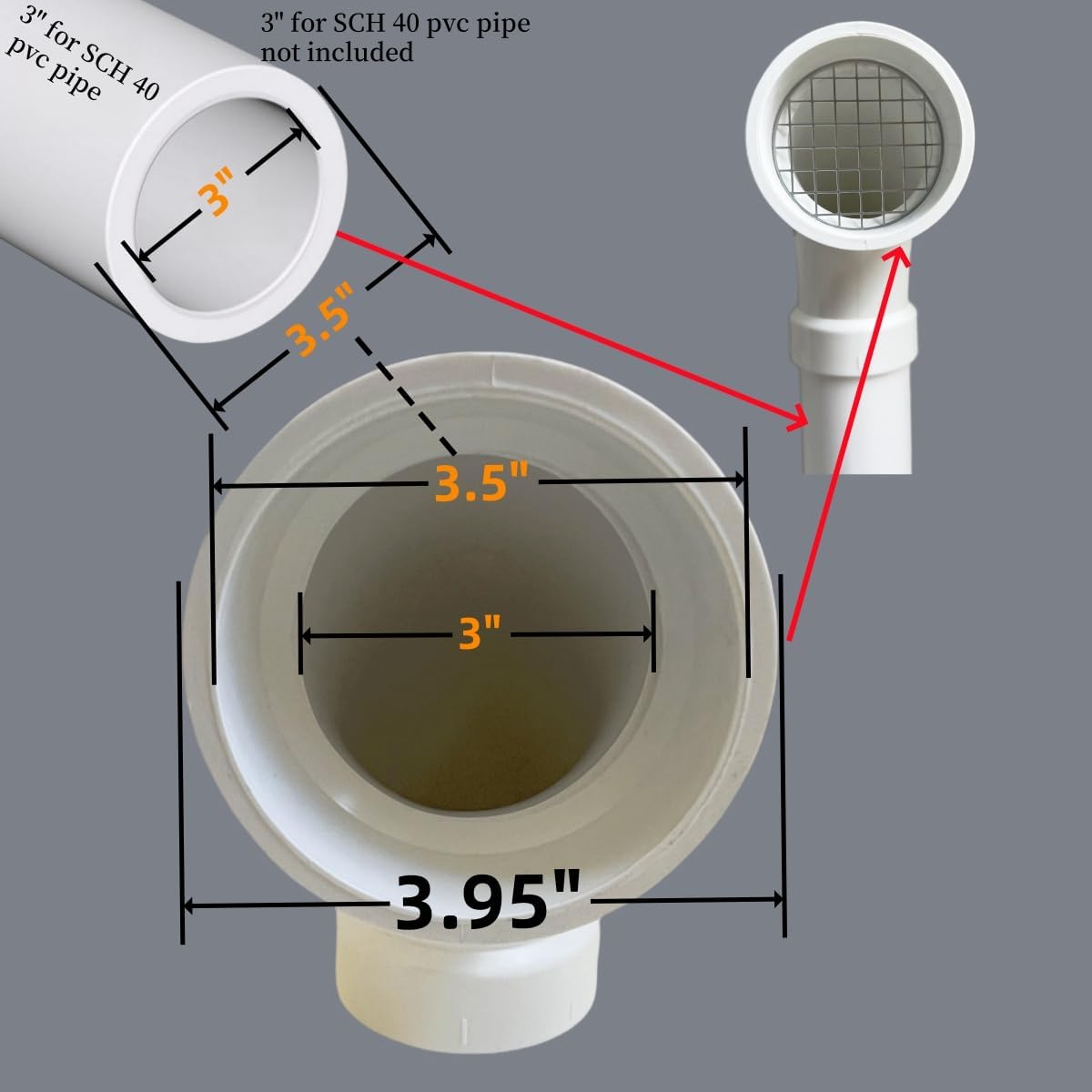

2. Measure the Outside
Measure straight across the pipe’s outside diameter. The expected OD is approximately 3.5 inches.
3. Check the Sweep Clearance
Allow room for the wider curve, screen inspection and every required wall, roof, appliance and service clearance.
“3 inch” is the nominal pipe size. This outer-fit cap is selected by the actual outside diameter. Do not use the pipe’s inside opening as the fit measurement.
Choose the Outlet Direction for the Actual Installation
Compatible Sidewall Furnace Termination
On a horizontal sidewall pipe, the screened outlet can face downward when the appliance instructions permit this 90 degree screened termination. Confirm clearance above grade, expected snow level and access for inspection.
Permitted Vertical PVC Roof Termination
On a compatible vertical PVC roof pipe, the 90 degree body turns the screened opening sideways. Use it only when the system instructions and local requirements permit that orientation. It does not replace flashing, a pipe boot or roof waterproofing.
What Each Part Is Designed to Do

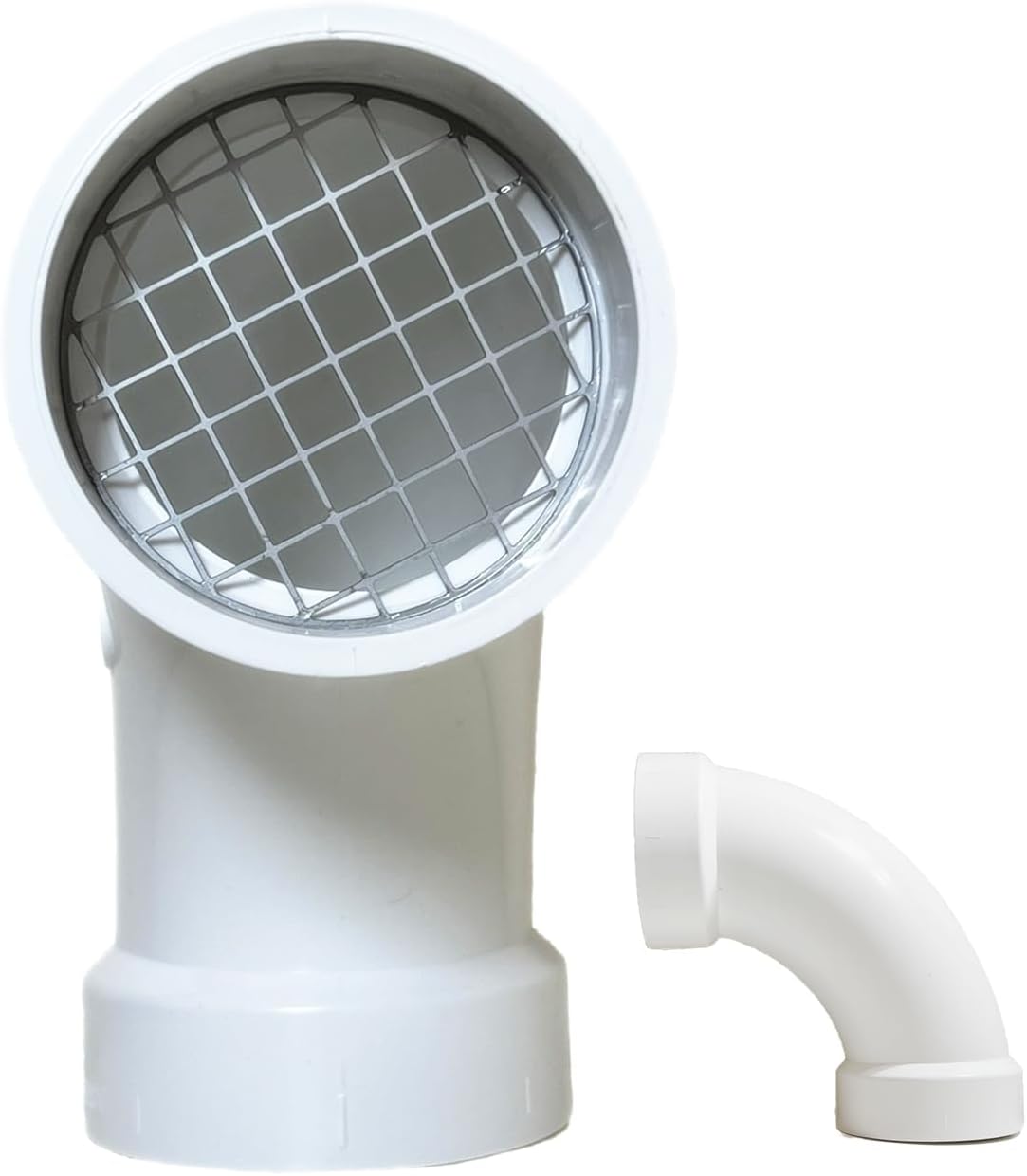

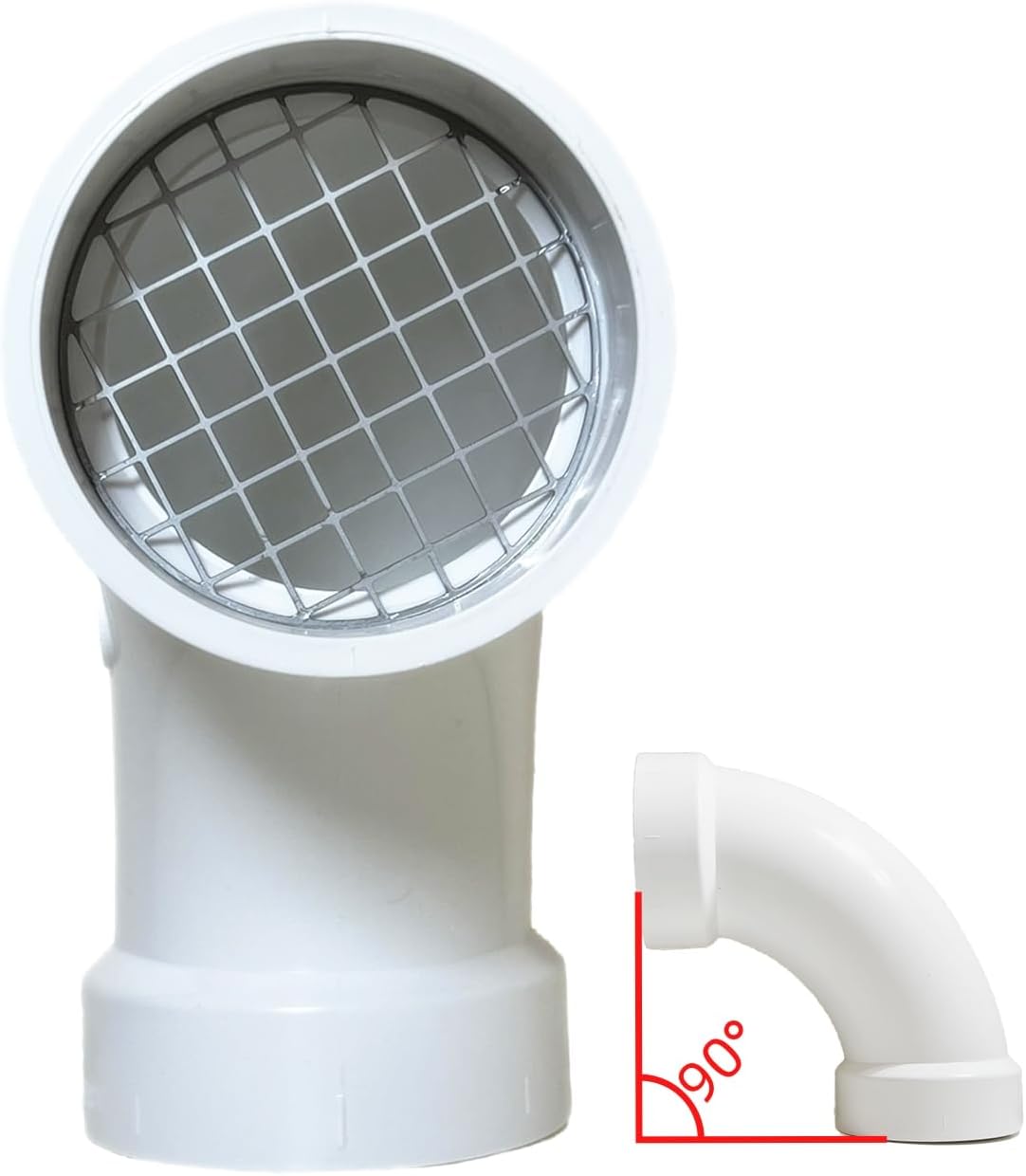

90 Degree Long-Sweep Body
The wider curve changes the outlet direction by 90 degrees and takes more installation space than the compact Standard 90 Degree model.
Directed Termination Outlet
The outlet faces downward on an appropriately oriented sidewall pipe or sideways on a vertical pipe. Actual weather exposure depends on installation orientation and location.

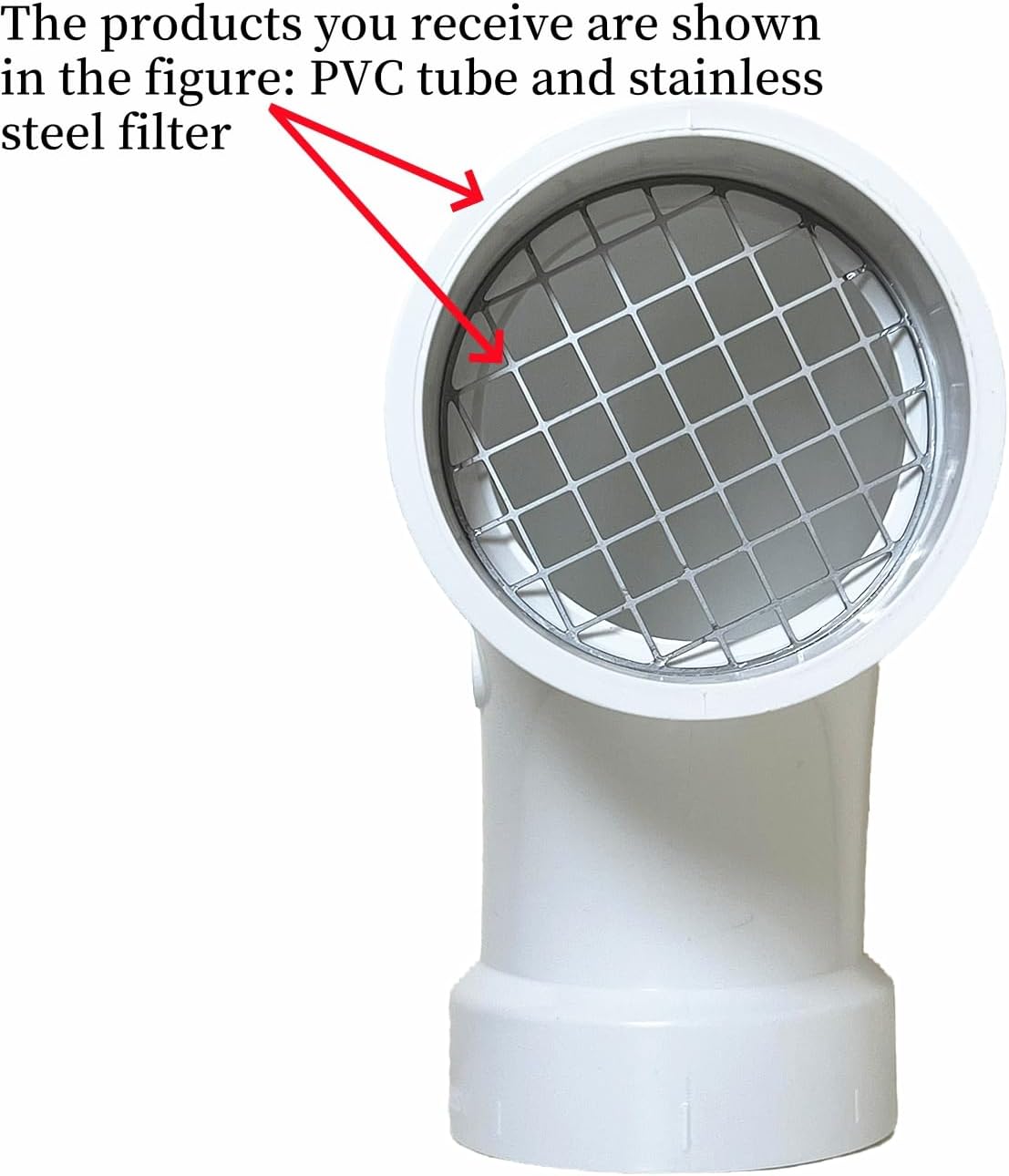

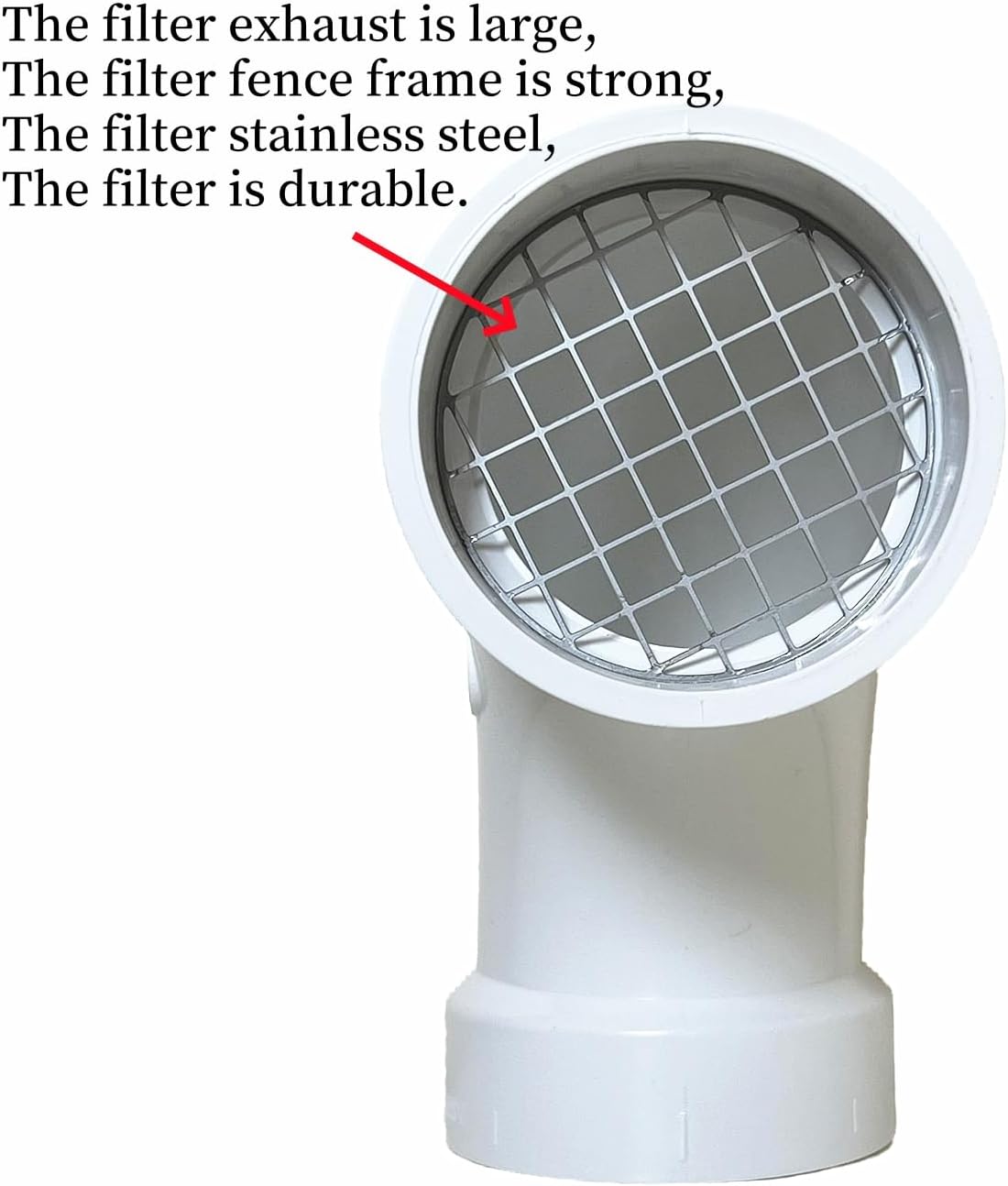

304 Stainless Steel Screen
The fixed mesh helps deter birds, rodents, insects, leaves and larger outdoor debris while keeping the termination visibly open.

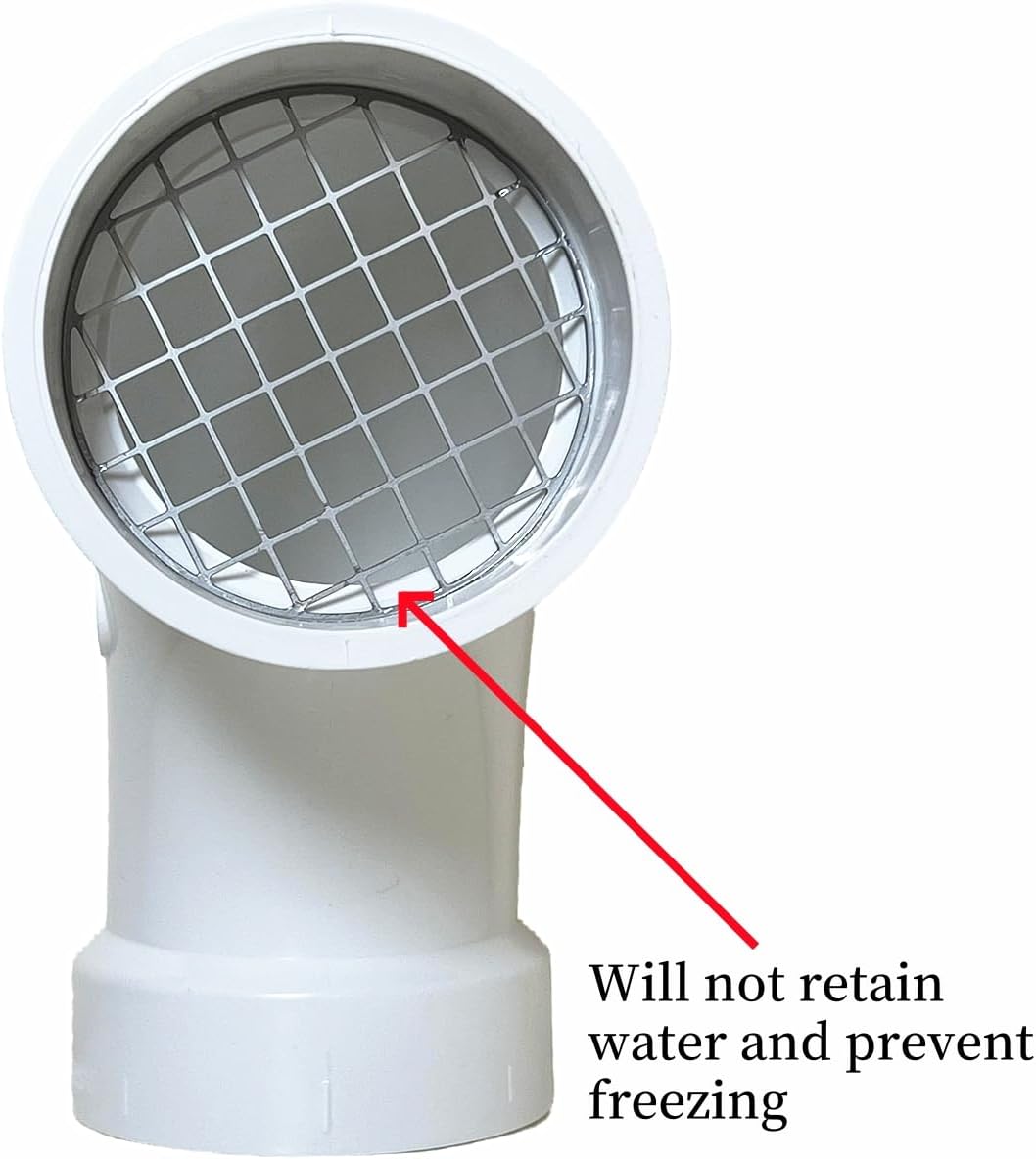

Low-Point Drainage Opening
A small opening provides a path for incidental moisture reaching the cap. It does not replace the system’s condensate management or guarantee freeze prevention.
Outer-Fit Lower Socket
The lower socket pushes over compatible PVC pipe measuring approximately 3.5 inches OD. Verify the physical fit before any permanent installation step.
Open, Serviceable Screen
The screened end remains the open termination. Keep it accessible so exterior debris, frost or damage can be checked as the system instructions require.
Know the Safety Boundary
A vent termination is part of a complete appliance or building system. This accessory cannot override the manufacturer’s instructions, engineering requirements or local code.
- Use only when the applicable system permits a 90 degree screened PVC termination.
- Do not connect another pipe, cover or valve to the screened outlet.
- Do not use it as a sealed end cap, backdraft damper, check valve or backflow device.
- Do not use it on metal ductwork, flexible dryer duct or an incompatible pipe diameter.
- It is not a roof fan, roof flashing, pipe boot, ridge vent or soffit-ventilation product.
- This listing is not positioned as a drainage, pool, sump or sewer-system fitting.
- Do not assume the screen creates zero restriction or that the drain opening prevents freezing.
- Confirm screening permission, airflow, allowable vent length, orientation and termination clearances.
- Keep the screen visible and accessible for inspection and maintenance.
What Real Installations Teach Before Checkout
The first avoidable mistake is ordering from the “3 inch” label without measuring the pipe. Nominal 3-inch PVC is approximately 3.5 inches across the outside, and an outer-fit socket must match that dimension.
The second is comparing only the angle. A Standard 90 Degree cap and a 90 Degree Long Sweep cap both turn the outlet, but the wider sweep needs more room around siding, roofing, nearby pipes and service areas.
The third is assuming every white PVC opening follows the same rule. The permitted screen, outlet direction and clearance come from the actual furnace, appliance or roof system. Identify first, measure second, confirm the instructions, then order.
See documented homeowner PVC vent protection problems and solutions and learn why birds and outdoor debris enter exposed PVC terminations.
For People Who Measure First and Maintain the Whole System
A vent cap is a small part, but it sits where an important system meets the outdoors. The goal is not to close the opening. It is to choose a correctly sized, permitted protective termination and keep it accessible for inspection.
Careful homeowners and installers compare the Standard and Long Sweep shapes, measure the actual pipe, check available space and read the system instructions. LGQF-LL makes those decision points visible so the purchase is based on the installation—not guesswork.
Product Specifications
| Brand | LGQF-LL |
|---|---|
| Product | 90 Degree Long Sweep PVC Vent Cap |
| Nominal Pipe Size | 3 Inch |
| Compatible Pipe OD | Approximately 3.5 Inches; Measure Before Ordering |
| Fit Type | Outer-Fit / Push-On Lower Socket |
| Compatible Pipe | Compatible 3 Inch Schedule 40 or Dimensionally Compatible DWV PVC |
| Configuration | 90 Degree Long Sweep |
| Body Material | PVC |
| Screen Material | 304 Stainless Steel Mesh |
| Drainage Feature | Low-Point Opening for Incidental Moisture |
| Compatible Applications | Permitted Furnace Intake, Furnace Exhaust and Approved PVC Roof Termination Configurations |
| Color | White |
| GTIN / UPC | 014679987401 |
| SKU / Amazon ASIN | B0DW8XF126 |
Compare the 3 Inch Vent Cap Shapes
Choose the shape from the required outlet direction and available clearance. The Standard 90 Degree model is more compact; this Long Sweep version uses a wider curve; the 45 Degree models change the outlet direction less sharply.
Learn Before You Install
Pipe location, allowable screening, airflow, condensation, frost, snow level, roof exposure and termination clearance must be considered as part of the complete system.
Frequently Asked Questions
What pipe does this 3 inch 90 degree long-sweep vent cap fit?
It is designed for compatible 3-inch Schedule 40 or dimensionally compatible DWV PVC pipe measuring approximately 3.5 inches outside diameter. Measure the actual pipe before ordering.
Does the cap insert inside the pipe?
No. The lower socket is an outer-fit connection that pushes over the outside of a compatible pipe.
What does 90 degree long sweep mean?
It means the body turns the outlet by 90 degrees using a wider curve. It does not guarantee a specific airflow rate, pressure drop or appliance-efficiency improvement.
How is this different from the standard 3 inch 90 degree vent cap?
The Standard 90 Degree model uses a tighter, more compact bend. This Long Sweep model has a wider radius and requires more clearance around the termination.
Can another PVC pipe be connected to the screened end?
No. Only the lower socket connects to the existing pipe. The screened end is the open termination outlet.
Can it be used for furnace intake and exhaust pipes?
It may be used on compatible PVC furnace intake or exhaust terminations only when the appliance manufacturer permits this 90 degree screened configuration. Confirm allowable screening, airflow, equivalent vent length and clearances.
Can this model be installed on a PVC roof termination?
Only when the applicable system instructions, roof configuration and local requirements permit this outer-fit 90 degree screened termination. The cap does not replace the flashing or waterproofing around the roof penetration.
Which way does the outlet face?
On a horizontal sidewall pipe, the cap can be oriented so the outlet faces downward when permitted. On a vertical roof pipe, the 90 degree outlet faces sideways. Always follow the applicable system instructions.
Is it a general roof vent cap?
No. It is a screened PVC pipe termination accessory. It is not a metal roof vent, attic ventilator, fan, flashing or roof boot.
Does the screen create zero airflow restriction?
No such guarantee should be made. Any screen can affect a vent system. Verify screening permission, airflow limits and inspection requirements for the actual system.
Does the drainage opening prevent freezing?
No. It gives incidental moisture reaching the body a path out, but it cannot guarantee prevention of frost or ice. Weather, condensation, orientation and system operation all matter.
Does the downward-facing outlet completely keep out rain and snow?
No outdoor termination can guarantee that under every orientation and weather condition. The outlet direction can reduce direct exposure in a permitted sidewall installation, but wind, snow and location still matter.
Is this a backdraft damper, check valve or sealed end cap?
No. It is a fixed screened PVC termination cap with no moving valve or damper mechanism, and the screened outlet remains open.
Should the cap be glued to the pipe?
Follow the applicable appliance or system instructions and local requirements. Do not use adhesive or permanently modify the termination unless those instructions permit it.
Measure the Pipe. Check the Clearance. Then Choose the 90 Degree Long Sweep.
Confirm compatible PVC, measure approximately 3.5 inches OD, allow room for the wider curve and verify that this 90 degree screened termination is permitted.
Price: $23.99 USD
Important Installation Notice
Always follow the appliance, system or pipe manufacturer’s instructions and applicable local requirements. Confirm allowable screening, airflow, equivalent vent length, orientation, weather exposure, roof or wall clearances and inspection access before installation. Inspect the mesh periodically and remove exterior accumulation only when the connected system can be accessed safely under its maintenance instructions.
